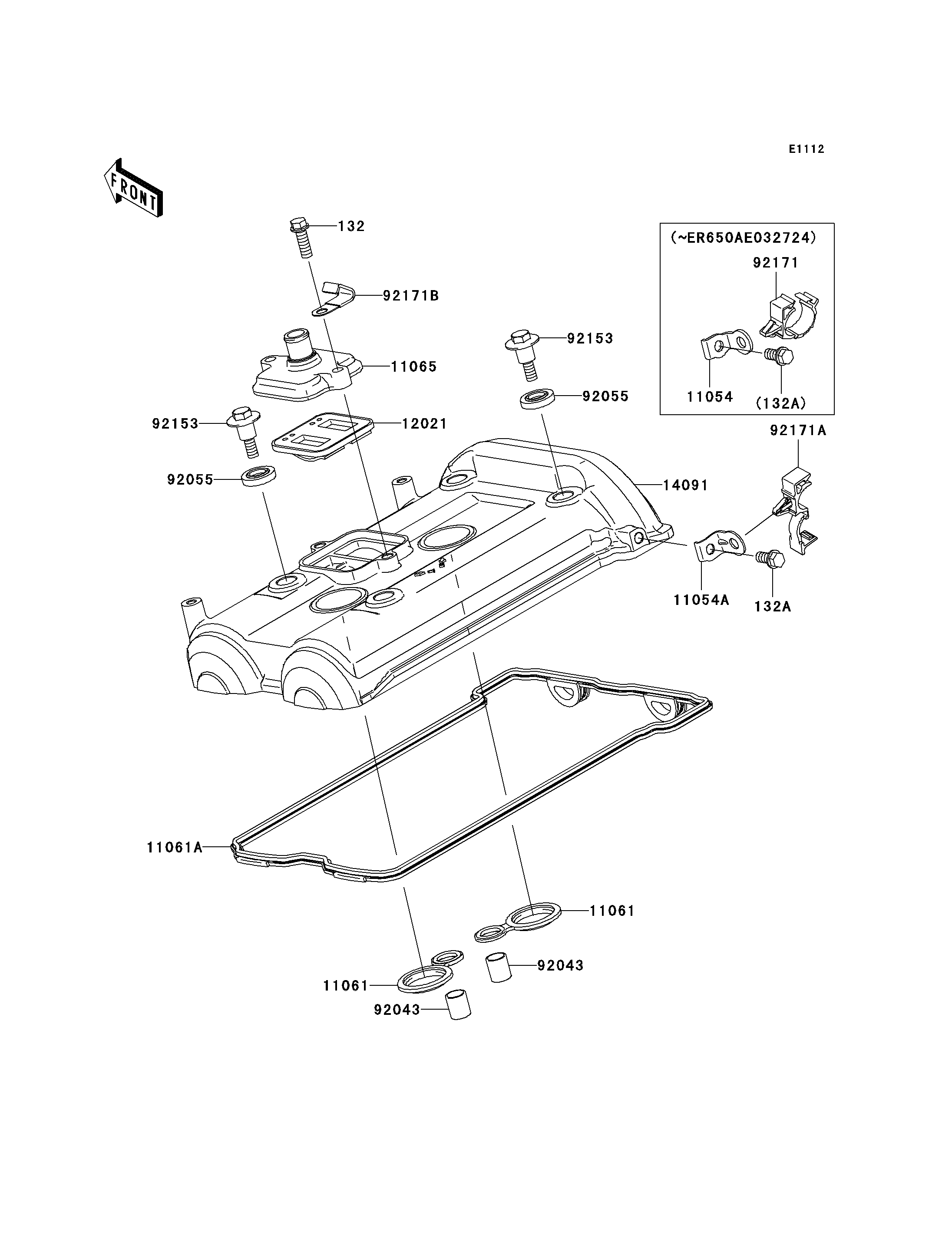

2008 ER-6n (Australian) - Cylinder Head Cover
132
132A
11054A
11061
11061
11061A
11065
12021
14091
92043
92043
92055
92055
92153
92153
92171A
92171B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X18 | 132 | 132BA0618 | 2 | ||
| BOLT-FLANGED-SMALL,6X12 | 132A | 132BB0612 | 1 | ||
| BRACKET | 11054A | 11054-0869 | 1 | ( ER650AE032725 - ) | |
| GASKET,SPARK PLUG HOLE | 11061 | 11061-0105 | 2 | ||
| GASKET,HEAD COVER | 11061A | 11061-0170 | 1 | ||
| CAP | 11065 | 11065-0111 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-1130 | 1 | ||
| COVER,HEAD | 14091 | 14091-0550 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 2 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 4 | ||
| BOLT,HEAD COVER | 92153 | 92153-0793 | 4 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-0789 | 1 | ( ER650AE032725 - ) | |
| CLAMP | 92171B | 92171-0813 | 1 |
