120
11005
11061
13001
13002
13008
92022
92036
92036
92043
92043
92153
92200A
92210

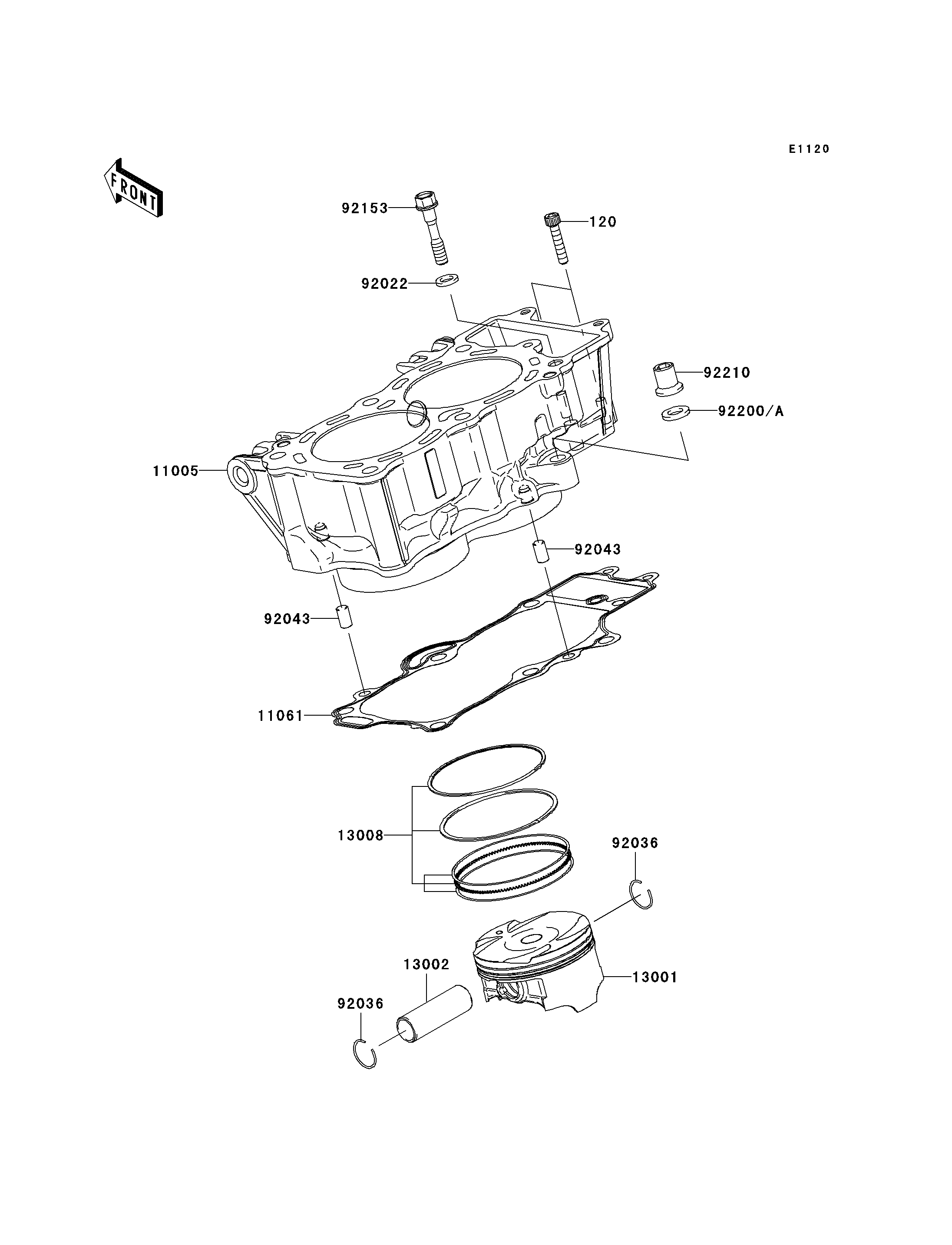

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X30 120 120CD0630 2
CYLINDER-ENGINE 11005 11005-0081 1
GASKET,CYLINDER BASE 11061 11061-0171 1
PISTON-ENGINE 13001 13001-0060 2
PIN-PISTON 13002 13002-0007 2
RING-SET-PISTON 13008 13008-1196 2
WASHER,9X15.5X2 92022 92022-1401 1
RING-SNAP,PISTON PIN 92036 92036-008 4
PIN,8X14 92043 92043-1567 2
BOLT,8X43 92153 92153-1011 1
WASHER,10.5X19X2.3 92200A 92200-0363 1 ( ER650AE076862 - )
NUT 92210 92210-0223 1
