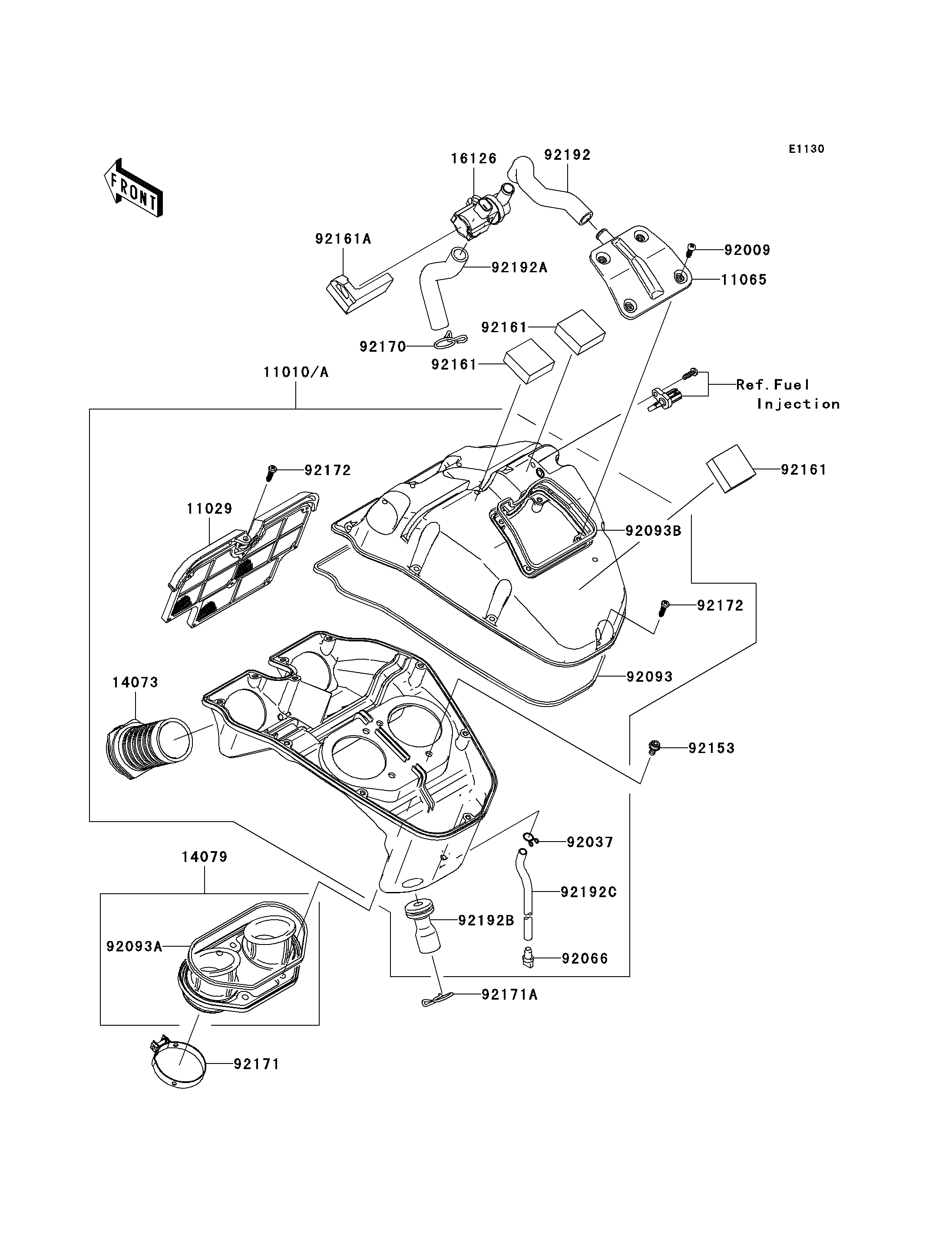

2008 ER-6n (Australian) - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010A
11029
11065
14073
14079
16126
92009
92037
92066
92093
92093A
92093B
92153
92161
92161
92161
92161A
92170
92171
92171A
92172
92172
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010A 11010-0153 1
ELEMENT-ASSY-AIR FILTER 11029 11029-0008 1
CAP,UPPER CASE 11065 11065-0120 1
DUCT 14073 14073-0110 2
HOLDER-ASSY 14079 14079-0017 1
VALVE,AIR SWITING 16126 16126-0019 1
SCREW,TAPPING,5X16 92009 92009-1984 4
CLAMP,TUBE 92037 92037-147 1
PLUG,DRAIN 92066 92066-1211 1
SEAL,L=1080 92093 92093-0045 1
SEAL 92093A 92093-0046 1
SEAL,L=368 92093B 92093-0048 1
BOLT,SOCKET,6X12 92153 92153-0759 4
DAMPER,T=15 92161 92161-0302 3
DAMPER 92161A 92161-0309 1
CLAMP 92170 92170-1017 1
CLAMP 92171 92171-0314 2
CLAMP 92171A 92171-0435 1
SCREW,TAPPING,5X20 92172 92172-0009 11
TUBE,ASV-A/C 92192 92192-0231 1
TUBE,HEAD-ASV 92192A 92192-0232 1
TUBE,BREATHER 92192B 92192-0264 1
TUBE,DRAIN,6X9X280 92192C 92192-0325 1
