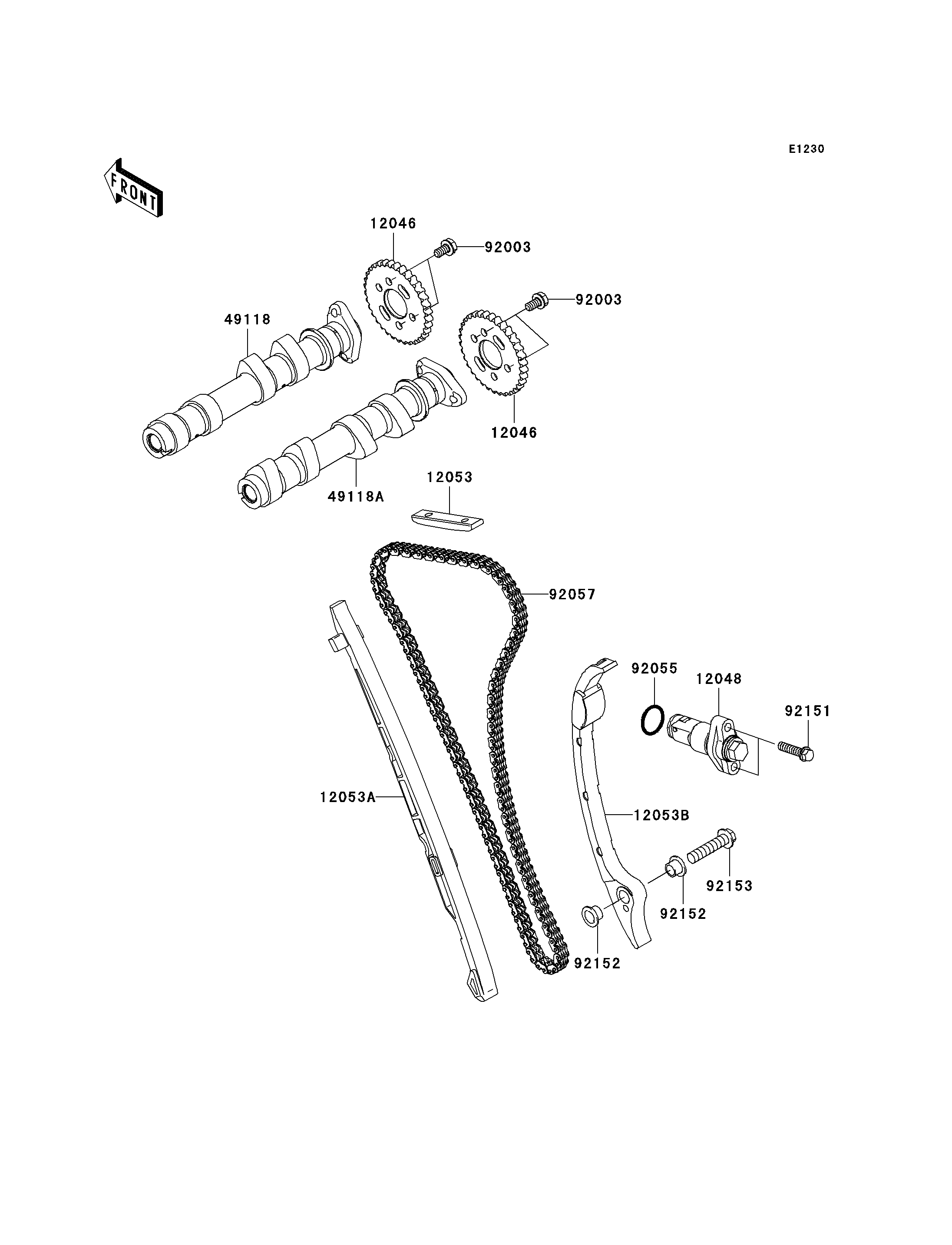

2008 ER-6n (Australian) - Camshaft(s)/Tensioner

12046
12046
12048
12053
12053A
12053B
49118
49118A
92003
92003
92055
92057
92151
92152
92152
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM,24T 12046 12046-0041 2
TENSIONER-ASSY 12048 12048-0027 1
GUIDE-CHAIN,UPP 12053 12053-0051 1
GUIDE-CHAIN,FR 12053A 12053-0059 1
GUIDE-CHAIN,RR 12053B 12053-0075 1
CAMSHAFT-COMP,EX 49118 49118-0042 1
CAMSHAFT-COMP,IN 49118A 49118-0072 1
BOLT,FLANGED,6X11 92003 92003-208 4
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,CAM,92RH 2015-134M 92057 92057-0100 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
COLLAR,8.2X10.6X6.9 92152 92152-0306 2
BOLT,FLANGED-SMALL,8X35 92153 92153-1394 1
