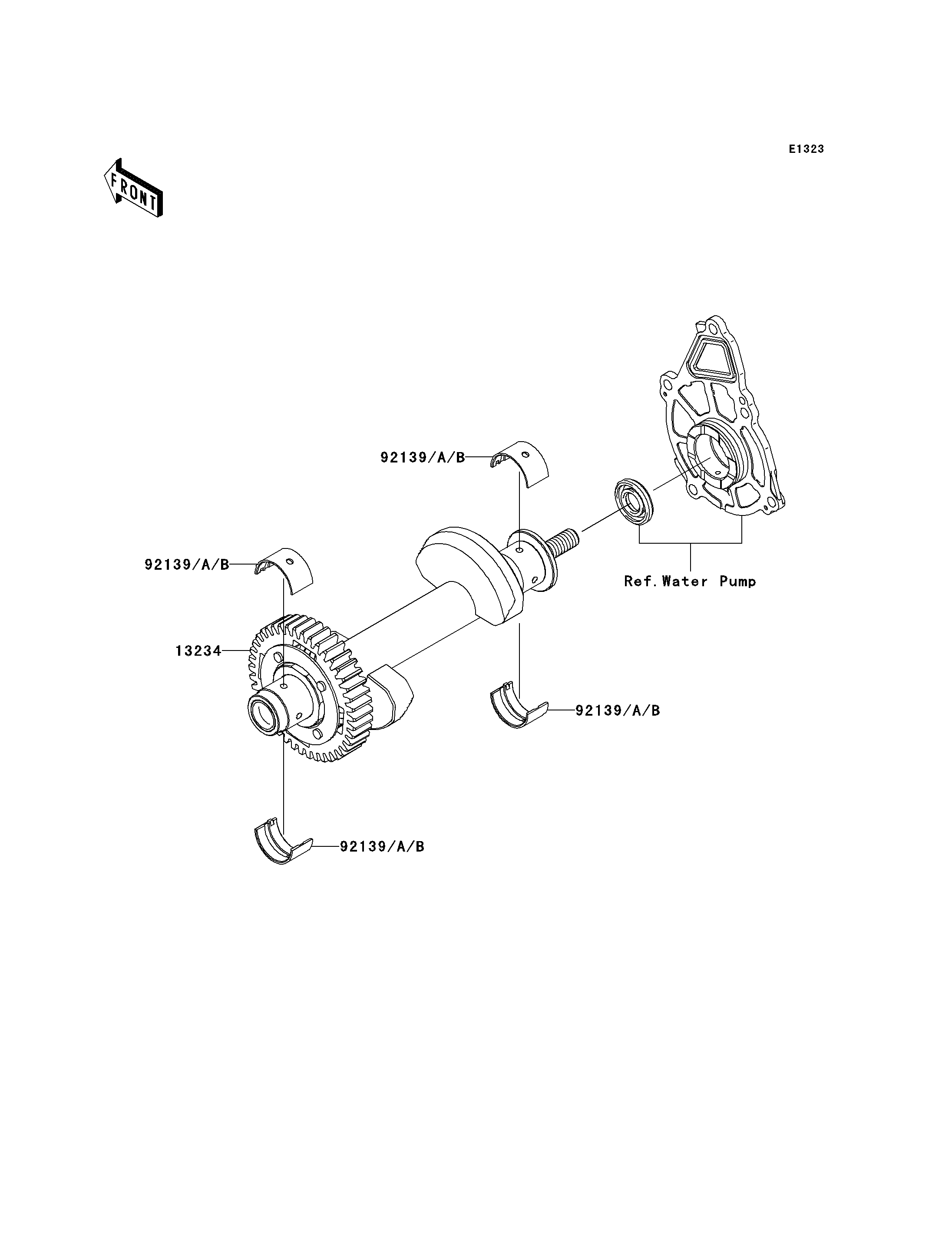

13234
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-COMP,BALANCER 13234 13234-0024 1
BUSHING,BALANCER,BLUE 92139 92139-0117 4
BUSHING,BALANCER,BLACK 92139A 92139-0118 AR
BUSHING,BALANCER,BROWN 92139B 92139-0119 AR
