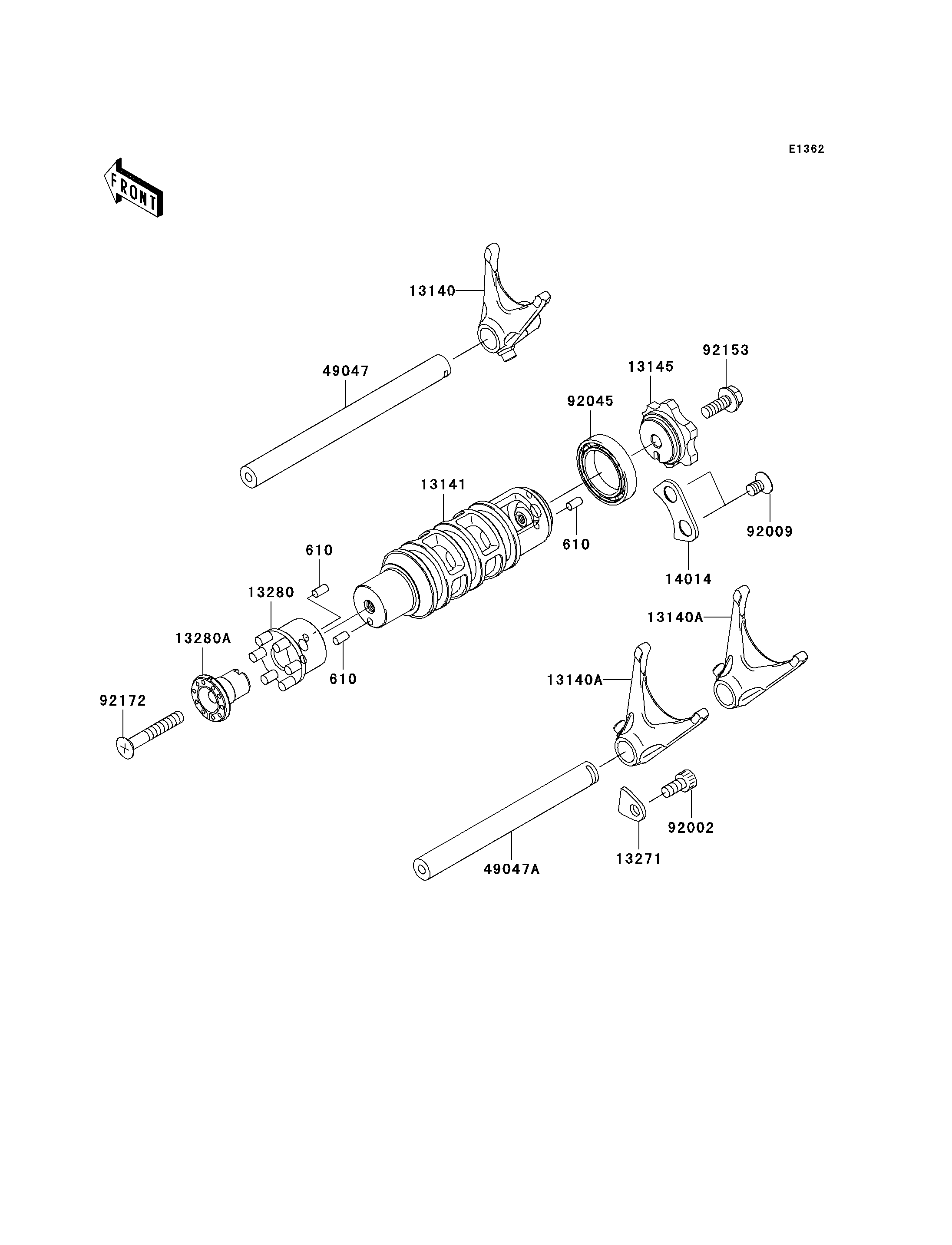

2008 ER-6n (Australian) - Gear Change Drum/Shift Fork(s)
610
610
610
13140
13140A
13140A
13141
13145
13271
13280
13280A
14014
49047
49047A
92002
92009
92045
92153
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROLLER,4X8 | 610 | 610A0408 | 3 | ||
| FORK-SHIFT,INPUT | 13140 | 13140-0025 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140A | 13140-0026 | 2 | ||
| DRUM-CHANGE | 13141 | 13141-0018 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-0020 | 1 | ||
| PLATE | 13271 | 13271-0626 | 1 | ||
| HOLDER | 13280 | 13280-0137 | 1 | ||
| HOLDER,NEUTRAL SWITCH | 13280A | 13280-0178 | 1 | ||
| PLATE-POSITION | 14014 | 14014-0018 | 1 | ||
| ROD-SHIFT,INPUT | 49047 | 49047-0019 | 1 | ||
| ROD-SHIFT,OUTPUT | 49047A | 49047-0020 | 1 | ||
| BOLT,SOCKET,6X12 | 92002 | 92002-1796 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1375 | 2 | ||
| BEARING-BALL,6805 | 92045 | 92045-1122 | 1 | ||
| BOLT,FLANGED,6X18 | 92153 | 92153-0958 | 1 | ||
| SCREW-CSK-CROS,6X40 | 92172 | 92172-0209 | 1 |
