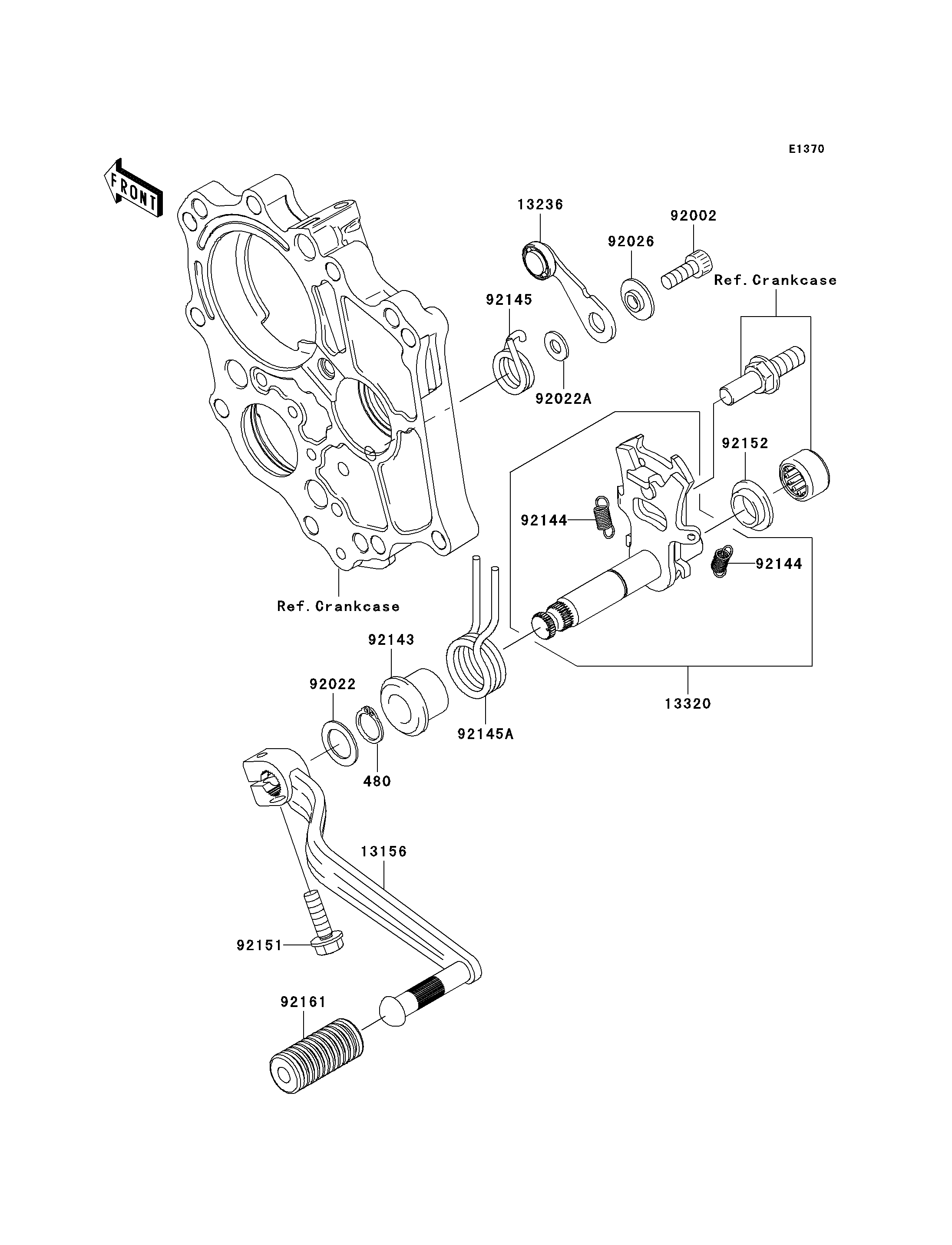

2008 ER-6n (Australian) - Gear Change Mechanism

480
13156
13236
13320
92002
92022
92022A
92026
92143
92144
92144
92145
92145A
92151
92152
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,13MM 480 480J1300 1
LEVER-CHANGE,PEDAL 13156 13156-0072 1
LEVER-COMP,POSITION 13236 13236-0094 1
LEVER-ASSY 13320 13320-0010 1
BOLT,SOCKET,6X16 92002 92002-1778 1
WASHER,13.3X20X1 92022 92022-1496 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
SPACER 92026 92026-1217 1
COLLAR,RETURN SPRING 92143 92143-1498 1
SPRING,CHANGE LEVER 92144 92144-1975 2
SPRING,POSITION 92145 92145-0304 1
SPRING,RETURN 92145A 92145-0326 1
BOLT,FLANGED,6X20 92151 92151-1226 1
COLLAR 92152 92152-1075 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
