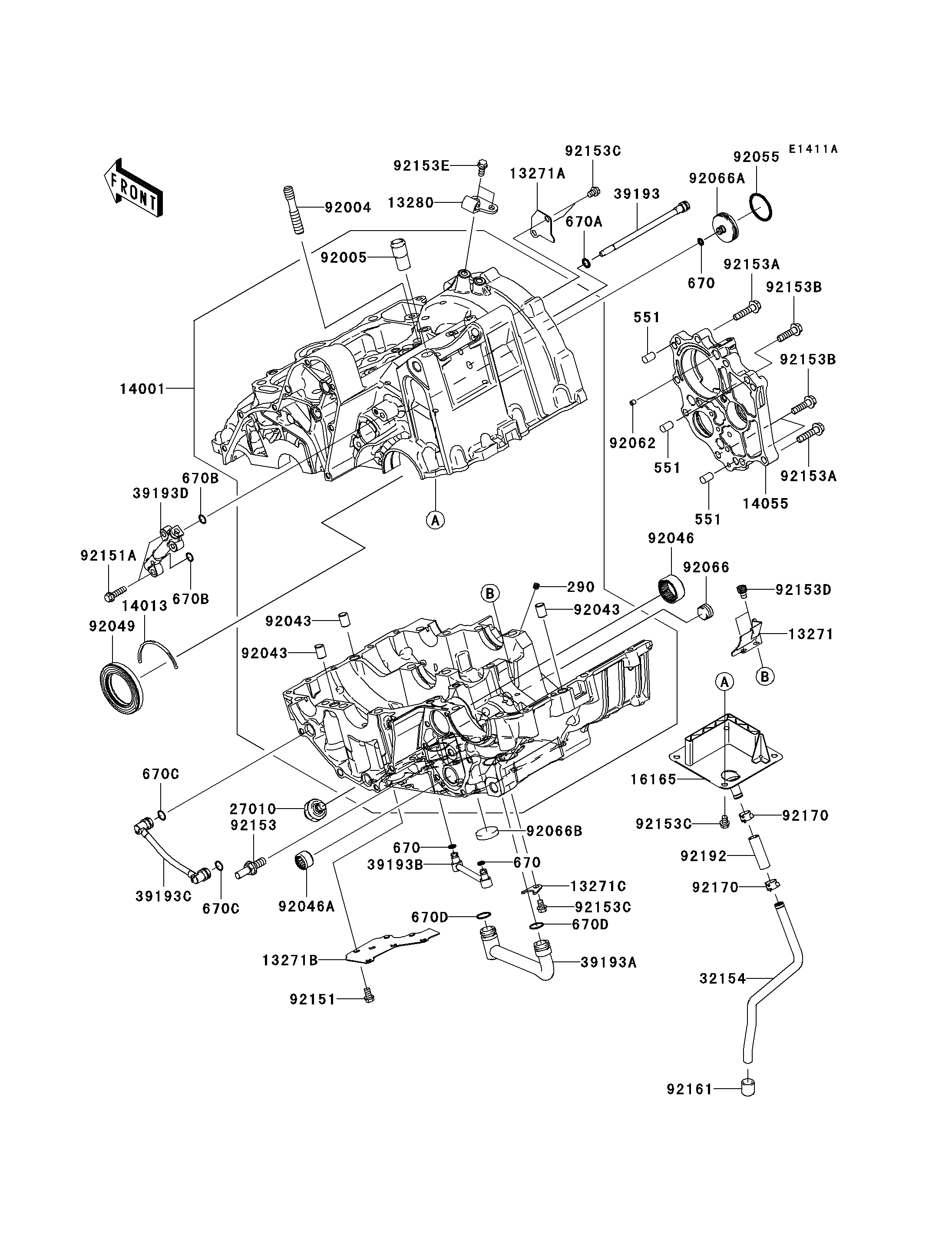

2008 ER-6n (Australian) - Crankcase(ER650AE057324-)

DOWNLOAD PDF
SELECT A NEW PART
290
290
551
551
551
551
551
551
13271
13271
13271A
13271A
13271B
13271B
13271C
13271C
13280
13280
14001
14001
14013
14013
14055
14055
16165
16165
27010
27010
32154
32154
39193
39193
39193A
39193A
39193B
39193B
39193C
39193C
39193D
39193D
92004
92004
92005
92005
92043
92043
92043
92043
92043
92043
92046
92046
92046A
92046A
92049
92049
92055
92055
92062
92062
92066
92066
92066A
92066A
92066B
92066B
92151
92151
92151A
92151A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92153D
92153D
92153E
92153E
92161
92161
92170
92170
92170
92170
92192
92192
670
670
670
670
670
670
670A
670A
670B
670B
670B
670B
670C
670C
670C
670C
670D
670D
670D
670D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET,6X6 290 290Q0606 1
PIN-DOWEL,8X14 551 551A0814 3
PLATE,OIL SHIELDING 13271 13271-0575 1
PLATE 13271A 13271-0577 1
PLATE 13271B 13271-0584 1
PLATE,OIL PIPE 13271C 13271-1187 1
HOLDER,CLUTCH CABLE 13280 13280-0171 1
SET-CRANKCASE 14001 14001-0104 1
RING-POSITION,T=1.98 14013 14013-1004 1
CASE-GEAR 14055 14055-0018 1
SEPARATOR,BREATHER 16165 16165-0001 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,BREATHER 32154 32154-0661 1
PIPE-OIL 39193 39193-0029 1
PIPE-OIL 39193A 39193-0031 1
PIPE-OIL 39193B 39193-0032 1
PIPE-OIL 39193C 39193-0033 1
PIPE-OIL 39193D 39193-0046 1
STUD,10X34.5 92004 92004-0024 1
FITTING,BREATHER 92005 92005-1238 1
PIN,DOWEL,10X14 92043 92043-1037 3
BEARING-NEEDLE,24BTM3013 92046 92046-0017 1
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
SEAL-OIL,HTC40628 92049 92049-1501 1
RING-O,29.7X2.4 92055 92055-0006 1
NOZZLE,5X6,SILVER 92062 92062-1086 1
PLUG,PT3/8X10 92066 92066-0003 1
PLUG,INPUT SHAFT 92066A 92066-0056 1
PLUG,25X5 92066B 92066-0061 1
BOLT,FLANGED-SMALL,6X10 92151 92151-1389 6
BOLT,6X22 92151A 92151-1937 2
BOLT,8X20 92153 92153-0530 1
BOLT,FLANGED,6X30 92153A 92153-0962 6
BOLT,FLANGED,7X26 92153B 92153-0963 3
BOLT,FLANGED-SMALL,6X8 92153C 92153-0964 7
BOLT,SOCKET,6X8 92153D 92153-1414 2
BOLT 92153E 92153-1805 2
DAMPER 92161 92161-0267 1
CLAMP 92170 92170-1167 2
TUBE,9X12X38 92192 92192-0225 1
O RING 670 670D1505 3
O RING,8MM 670A 670D1508 1
O RING,9MM 670B 670D1509 2
O RING,10MM 670C 670D1510 2
O RING,14MM 670D 670D2014 2
