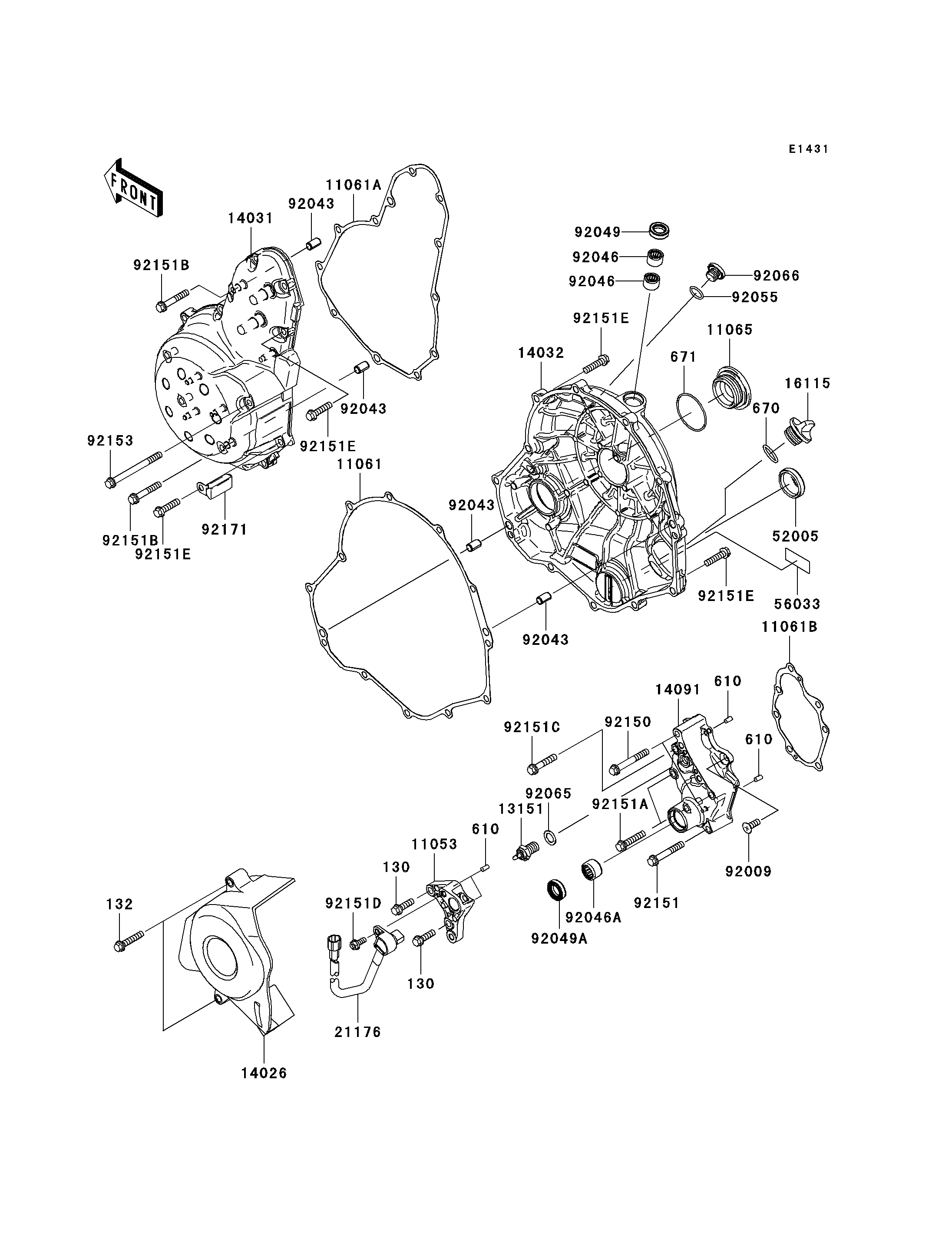

2008 ER-6n (Australian) - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
610
610
610
670
671
11053
11061
11061A
11061B
11065
13151
14026
14031
14032
14091
16115
21176
52005
56033
92009
92043
92043
92043
92043
92046
92046
92046A
92049
92049A
92055
92065
92066
92150
92151
92151A
92151B
92151B
92151C
92151D
92151E
92151E
92151E
92151E
92153
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BA0620 2
BOLT-FLANGED-SMALL,6X30 132 132BB0630 2
ROLLER,4X8 610 610A0408 4
O RING,20MM 670 670B2020 1
O RING,40MM 671 671B2540 1
BRACKET 11053 11053-1739 1
GASKET,CLUTCH COVER 11061 11061-0164 1
GASKET,GENERATOR COVER 11061A 11061-0165 1
GASKET,TRANSMISSION COVER 11061B 11061-0166 1
CAP 11065 11065-0150 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
COVER-CHAIN 14026 14026-0021 1
COVER-GENERATOR 14031 14031-0058 1
COVER-CLUTCH 14032 14032-0084 1
COVER,TRANSMISSION 14091 14091-0445 1
CAP-OIL FILLER 16115 16115-1053 1
SENSOR,SPEED 21176 21176-0065 1
GAUGE,OIL LEVEL 52005 52005-1057 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-0131 1
SCREW,6X16 92009 92009-1360 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-NEEDLE,HK1210 92046 92046-1010 2
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
SEAL-OIL,TC13225.5 92049A 92049-1519 1
RING-O,13.0X1.9 92055 92055-1011 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-0073 1
BOLT,6X45 92150 92150-1884 2
BOLT,6X40 92151 92151-1131 1
BOLT,6X30 92151A 92151-1134 2
BOLT,6X35 92151B 92151-1135 2
BOLT,6X30 92151C 92151-1201 1
BOLT,FLANGED,5X12 92151D 92151-1305 1
BOLT,FLANGED-SMALL,6X25 92151E 92151-1930 21
BOLT,FLANGED,6X70 92153 92153-0018 1
CLAMP 92171 92171-0911 1
