Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

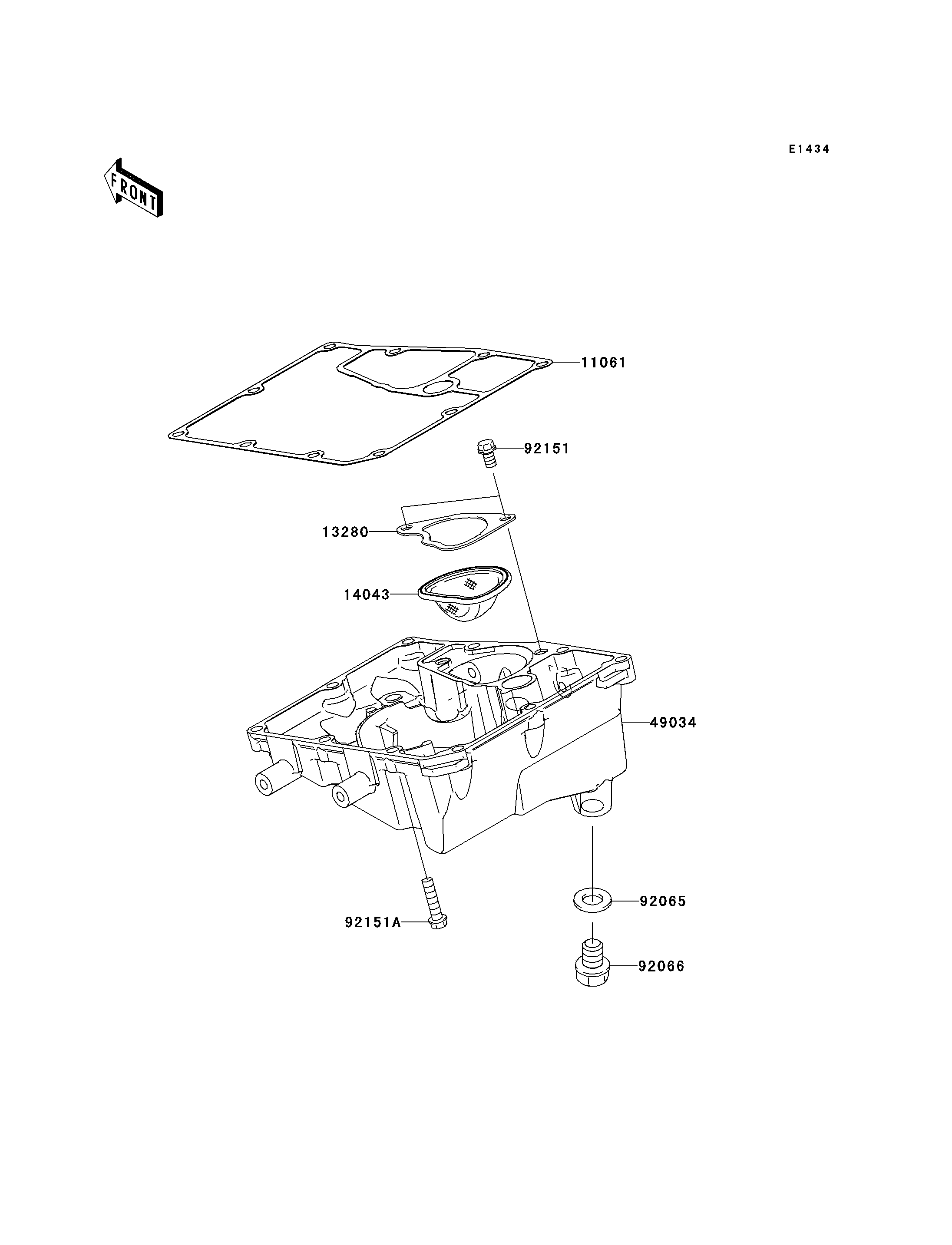

11061
13280
14043
49034
92065
92066
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-0167 1
HOLDER,OIL FILTER 13280 13280-0134 1
FILTER,OIL(SCAVENGE) 14043 14043-0008 1
PAN-OIL 49034 49034-0014 1
GASKET,12X22X2 92065 92065-097 1
PLUG,DRAIN,12X22 92066 92066-0069 1
BOLT,FLANGED-SMALL,6X10 92151 92151-1389 2
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 10
