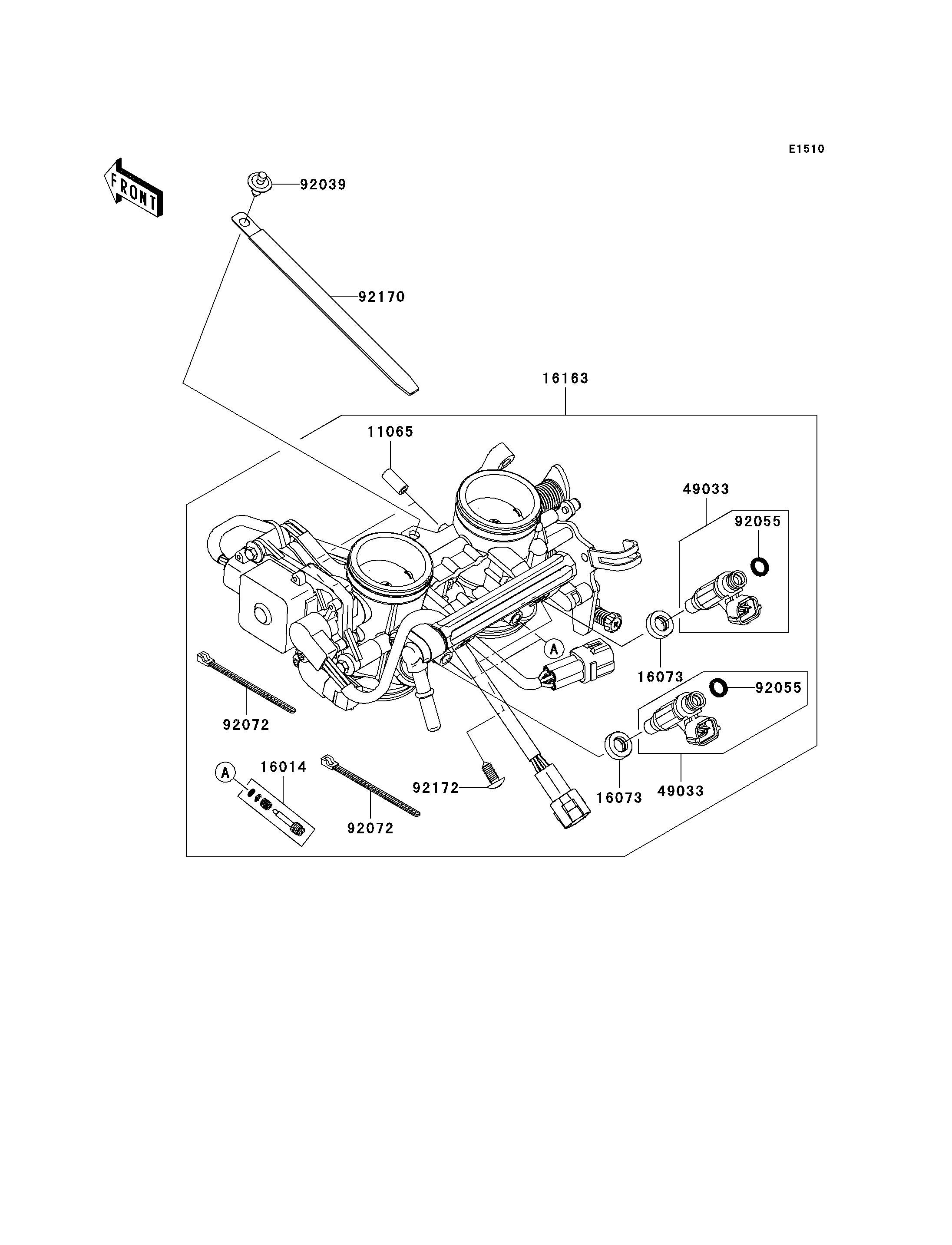

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0018 2
SCREW-PILOT AIR 16014 16014-0002 2
INSULATOR 16073 16073-3707 2
THROTTLE-ASSY,TTK38 16163 16163-0099 1
NOZZLE-INJECTION 49033 49033-0011 2
RIVET 92039 92039-0068 1
RING-O,INJECTION NOZZLE 92055 92055-1622 2
BAND,SUB-HARNESS 92072 92072-0012 2
CLAMP,L=150 92170 92170-1114 1
SCREW,PIPE INJECTION 92172 92172-0064 2
