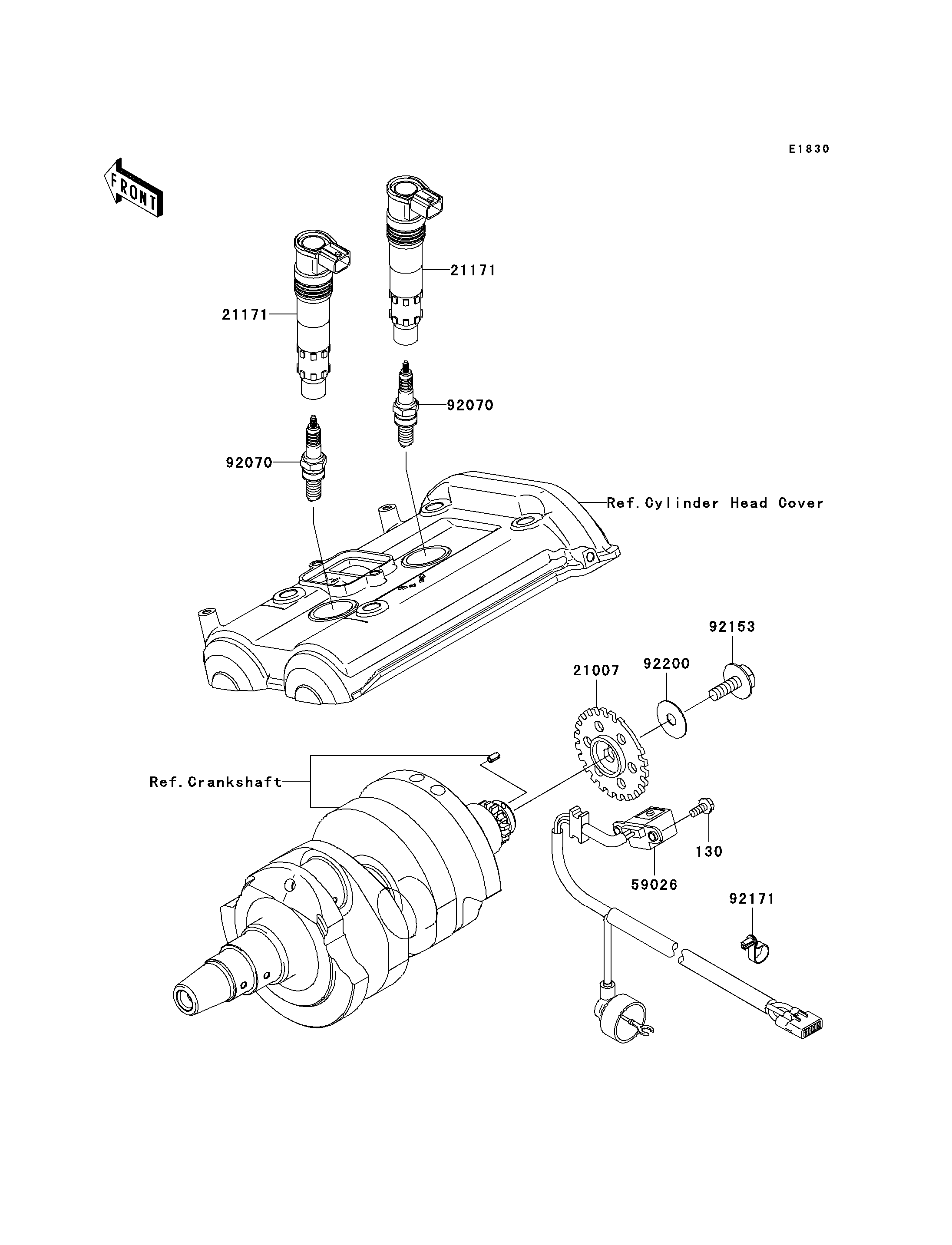

130
21007
21171
21171
59026
92070
92070
92153
92171
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130BA0512 2
ROTOR,PULSING 21007 21007-0053 1
COIL-ASSY-IGNITION 21171 21171-1286 2
COIL-PULSING 59026 59026-0018 1
PLUG-SPARK,CR9EIA(NGK) 92070 92070-0014 AR
BOLT,FLANGED,8X23 92153 92153-0549 1
CLAMP,SPEED 92171 92171-0836 1
WASHER,8.5X28X0.8 92200 92200-0274 1
