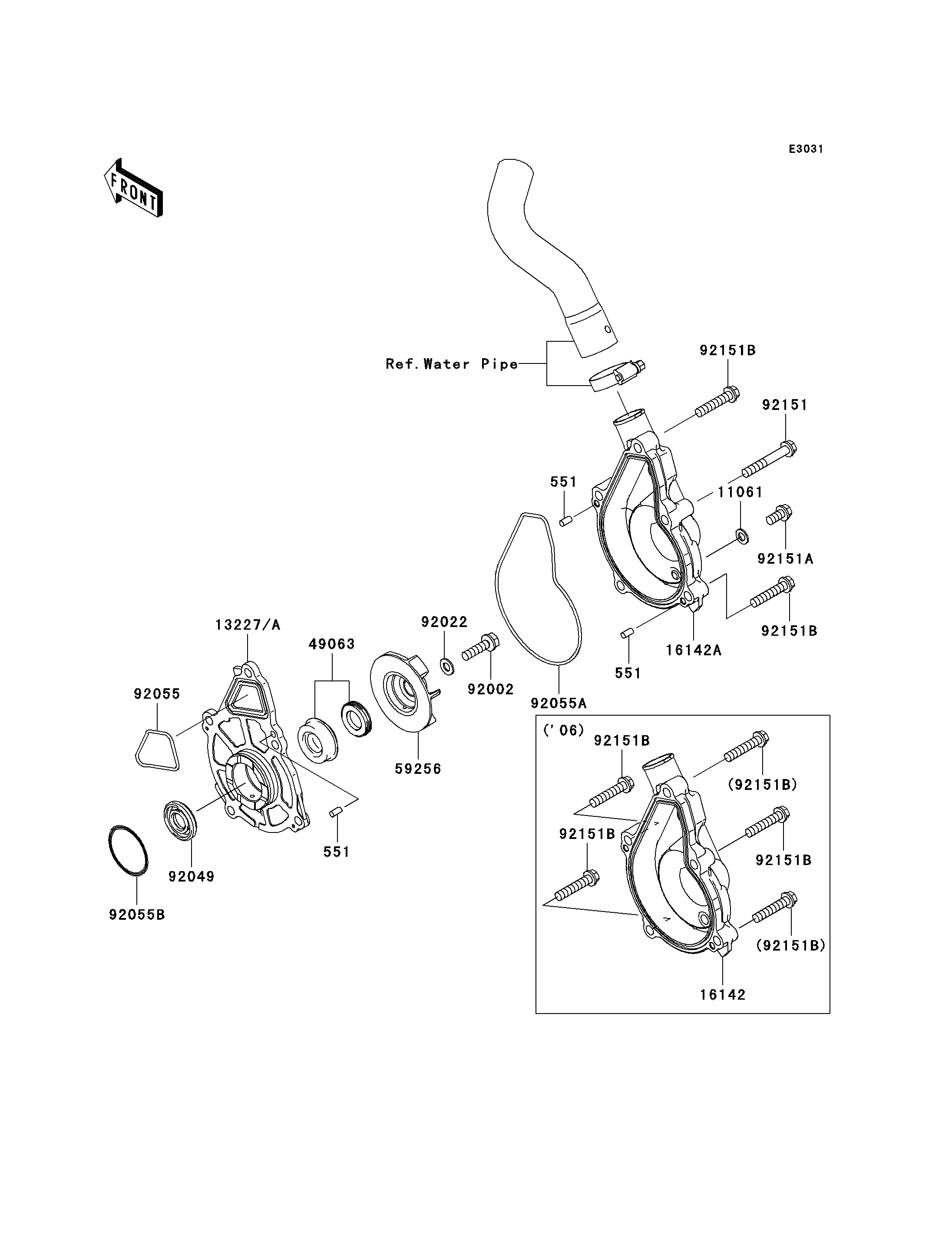

Parts Diagrams |
551
551
551
11061
13227A
16142A
49063
59256
92002
92022
92049
92055
92055A
92055B
92151
92151A
92151B
92151B
92151B
92151B
92151B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL,4X8 | 551 | 551A0408 | 3 | ||
| GASKET | 11061 | 11061-0107 | 1 | ||
| HOUSING | 13227A | 13227-0012 | 1 | ||
| COVER-PUMP | 16142A | 16142-0047 | 1 | ||
| SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
| IMPELLER | 59256 | 59256-0007 | 1 | ||
| BOLT,6X22 | 92002 | 92002-1154 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| SEAL-OIL,SC12 28.555 | 92049 | 92049-1259 | 1 | ||
| RING-O,CASE-HOUSING | 92055 | 92055-0082 | 1 | ||
| RING-O,HOUSING-PUMP COVER | 92055A | 92055-0083 | 1 | ||
| RING-O,33.2MM | 92055B | 92055-1155 | 1 | ||
| BOLT,6X40 | 92151 | 92151-1131 | 3 | ||
| BOLT,6X12 | 92151A | 92151-1133 | 1 | ||
| BOLT,6X30 | 92151B | 92151-1134 | 2 |
| PIN-DOWEL,4X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING | |
| REF # | 13227A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-MECHANICAL,WATER | |
| REF # | 49063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IMPELLER | |
| REF # | 59256 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X22 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X12X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,SC12 28.555 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,CASE-HOUSING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,HOUSING-PUMP COVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,33.2MM | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X40 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92151B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
