Parts Diagrams |

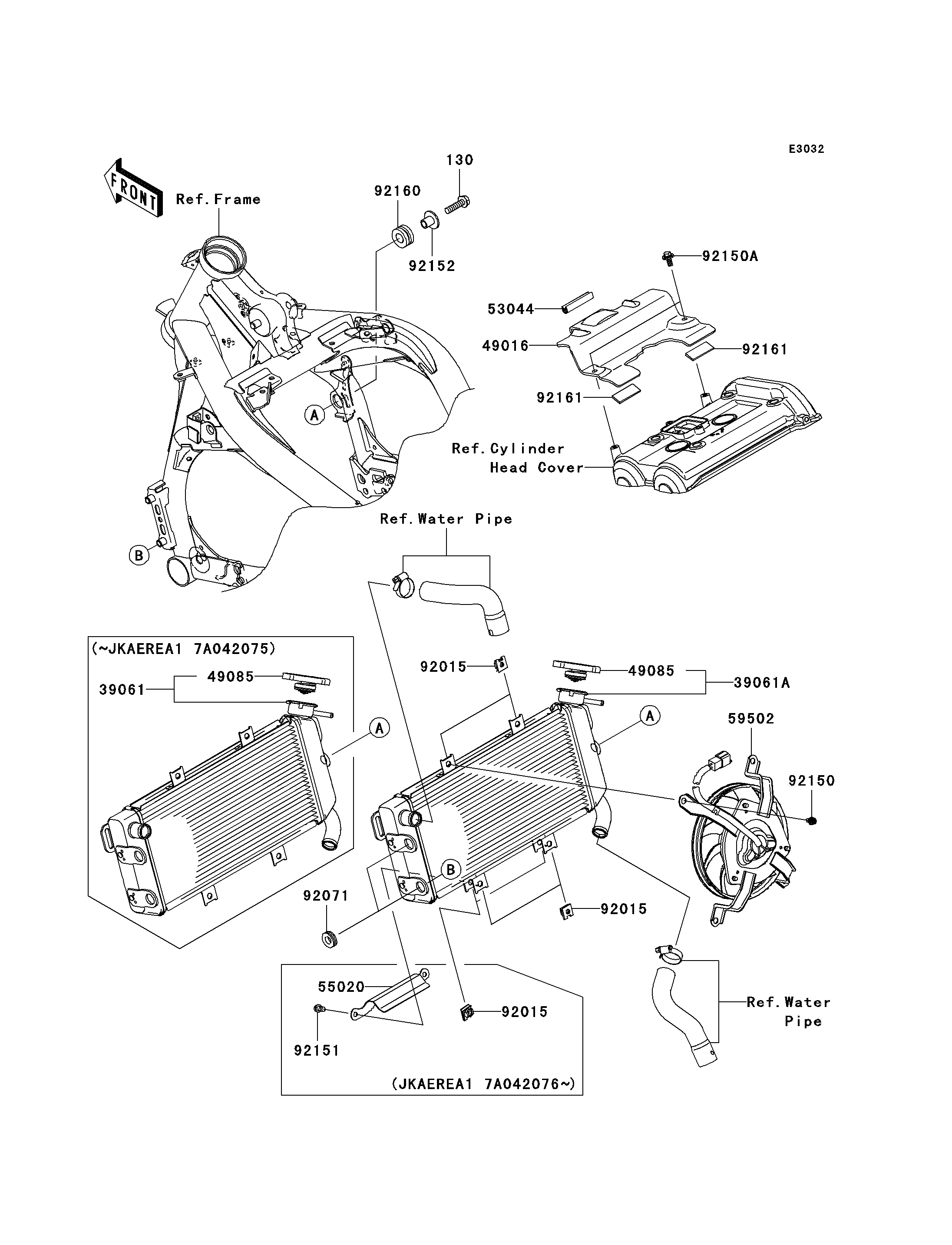

130
39061A
49016
49085
49085
53044
55020
59502
92015
92015
92015
92071
92150
92150A
92151
92152
92160
92161
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X30 | 130 | 130BA0830 | 1 | ||
RADIATOR-ASSY | 39061A | 39061-0110 | 1 | (JKAEREA1 7A042076 - ) | |
COVER-SEAL,HOT WIND | 49016 | 49016-0030 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1078 | 1 | ||
TRIM,L=50 | 53044 | 53044-1185 | 1 | ||
GUARD | 55020 | 55020-0343 | 1 | (JKAEREA1 7A042076 - ) | |
FAN-ASSY | 59502 | 59502-0019 | 1 | ||
NUT | 92015 | 92015-1487 | 6 | ||
GROMMET | 92071 | 92071-1115 | 2 | ||
BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
BOLT,FLANGED,6X14 | 92150A | 92150-1689 | 2 | ||
BOLT,6X10 | 92151 | 92151-1277 | 2 | (JKAEREA1 7A042076 - ) | |
COLLAR | 92152 | 92152-0398 | 1 | ||
DAMPER | 92160 | 92160-1007 | 1 | ||
DAMPER | 92161 | 92161-0301 | 2 |
BOLT-FLANGED,8X30 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY | |
REF # | 39061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (JKAEREA1 7A042076 - ) |
COVER-SEAL,HOT WIND | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=50 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (JKAEREA1 7A042076 - ) |
FAN-ASSY | |
REF # | 59502 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X14 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (JKAEREA1 7A042076 - ) |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
