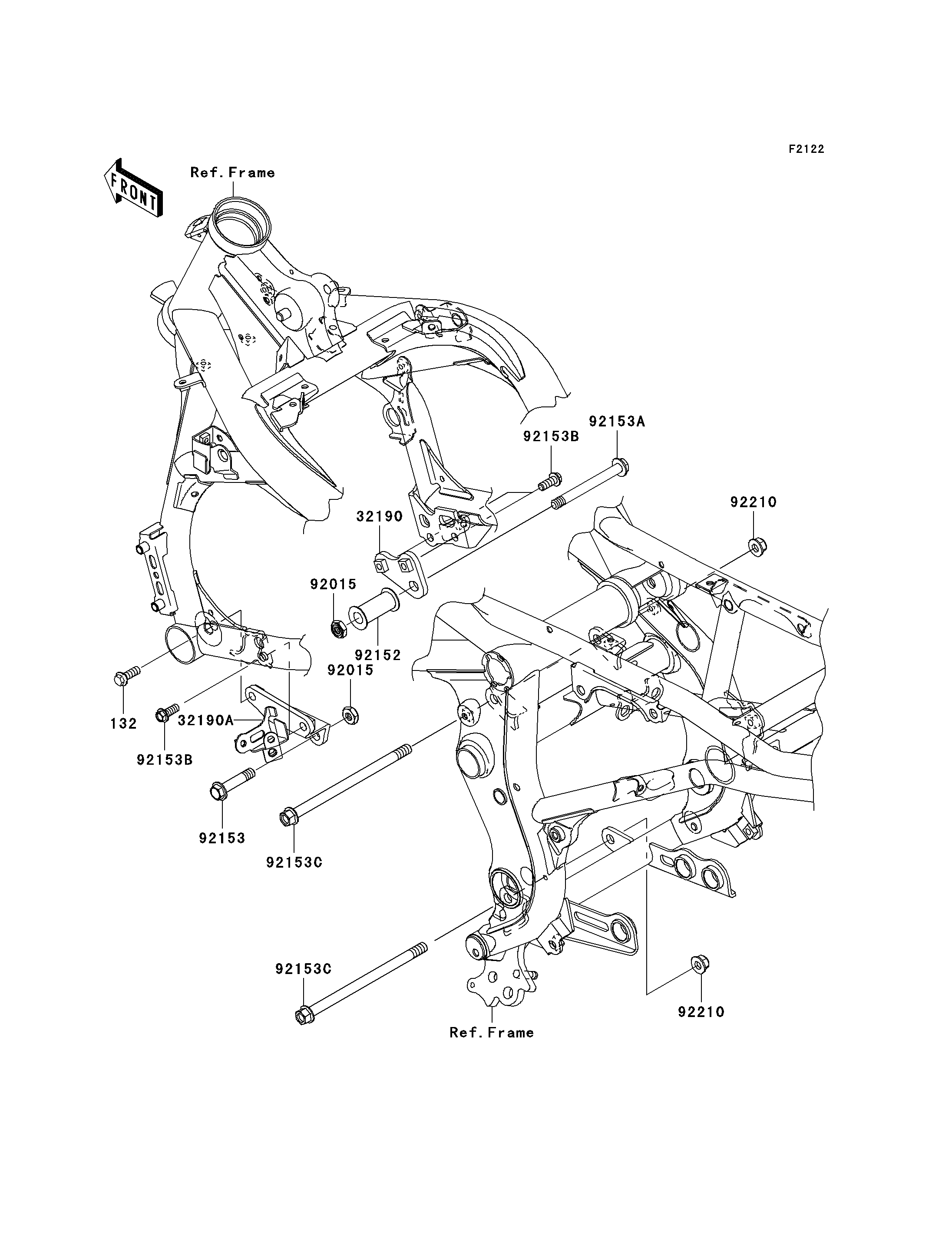

132
32190
32190A
92015
92015
92152
92153
92153A
92153B
92153B
92153C
92153C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X22 132 132BB0822 1
BRACKET-ENGINE,RH 32190 32190-0189 1
BRACKET-ENGINE,LH 32190A 32190-0234 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 2
COLLAR,ENGINE MOUNT 92152 92152-0311 1
BOLT,FLANGED,10X47 92153 92153-0823 1
BOLT,FLANGED,10X95 92153A 92153-0976 1
BOLT,FLANGED,8X20 92153B 92153-0995 3
BOLT,FLANGED,10X170 92153C 92153-1428 2
NUT,LOCK,FLANGED,10MM 92210 92210-1081 2
