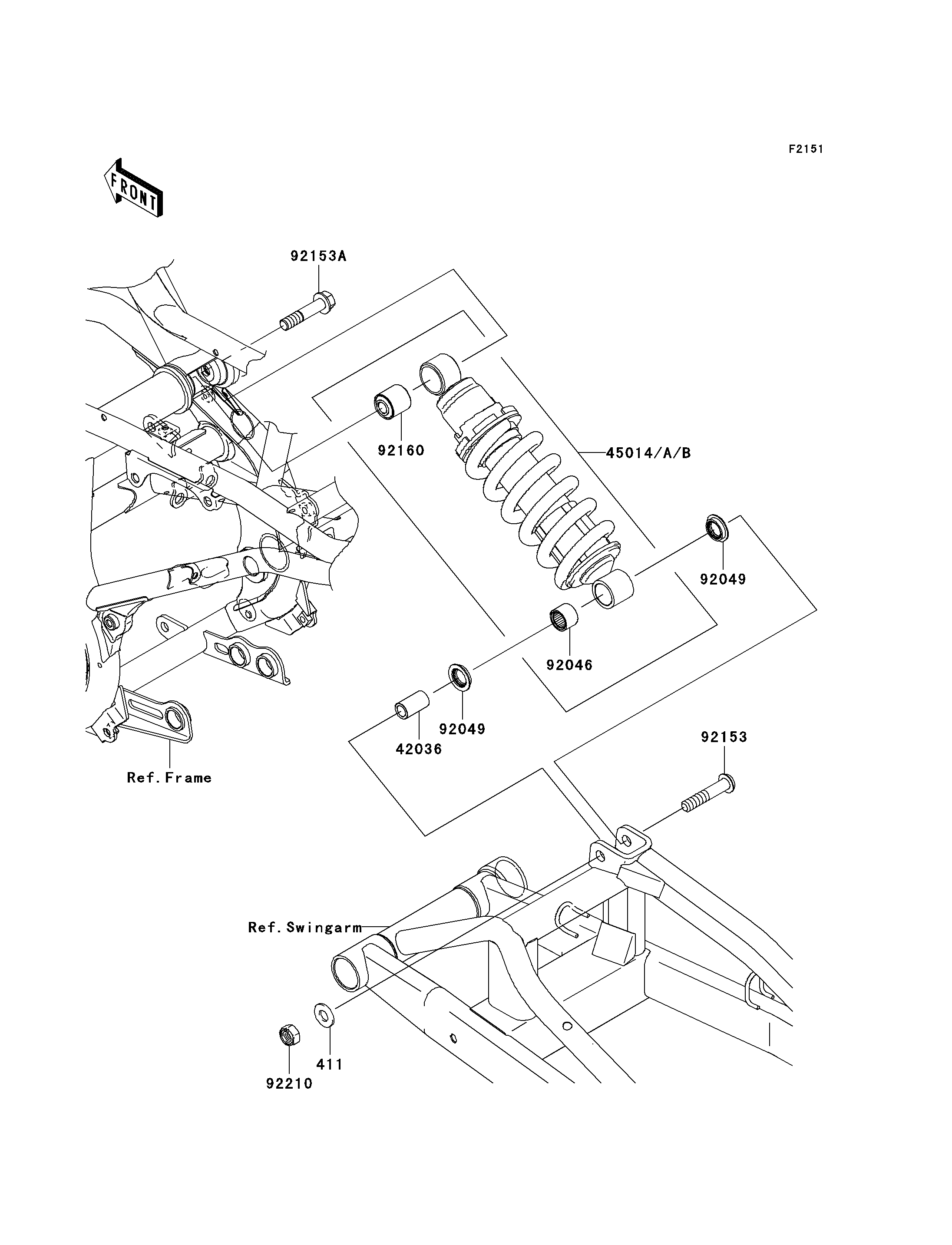

2008 ER-6n (Australian) - Suspension/Shock Absorber

411
42036
45014
92046
92049
92049
92153
92153A
92160
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,12MM 411 411AA1200 1
SLEEVE,12.1X18X32 42036 42036-0024 1
SHOCKABSORBER,P.SILVER 45014 45014-0140-458 1
BEARING-NEEDLE,SFYZM182417 92046 92046-1272 1
SEAL-OIL,KCR MF018N1 92049 92049-1493 2
BOLT,SOCKET,12X60 92153 92153-1484 1
BOLT,FLANGED,12X55 92153A 92153-1766 1
DAMPER,SHOCKABSORBER 92160 92160-1161 1
NUT,LOCK,12MM 92210 92210-0300 1
