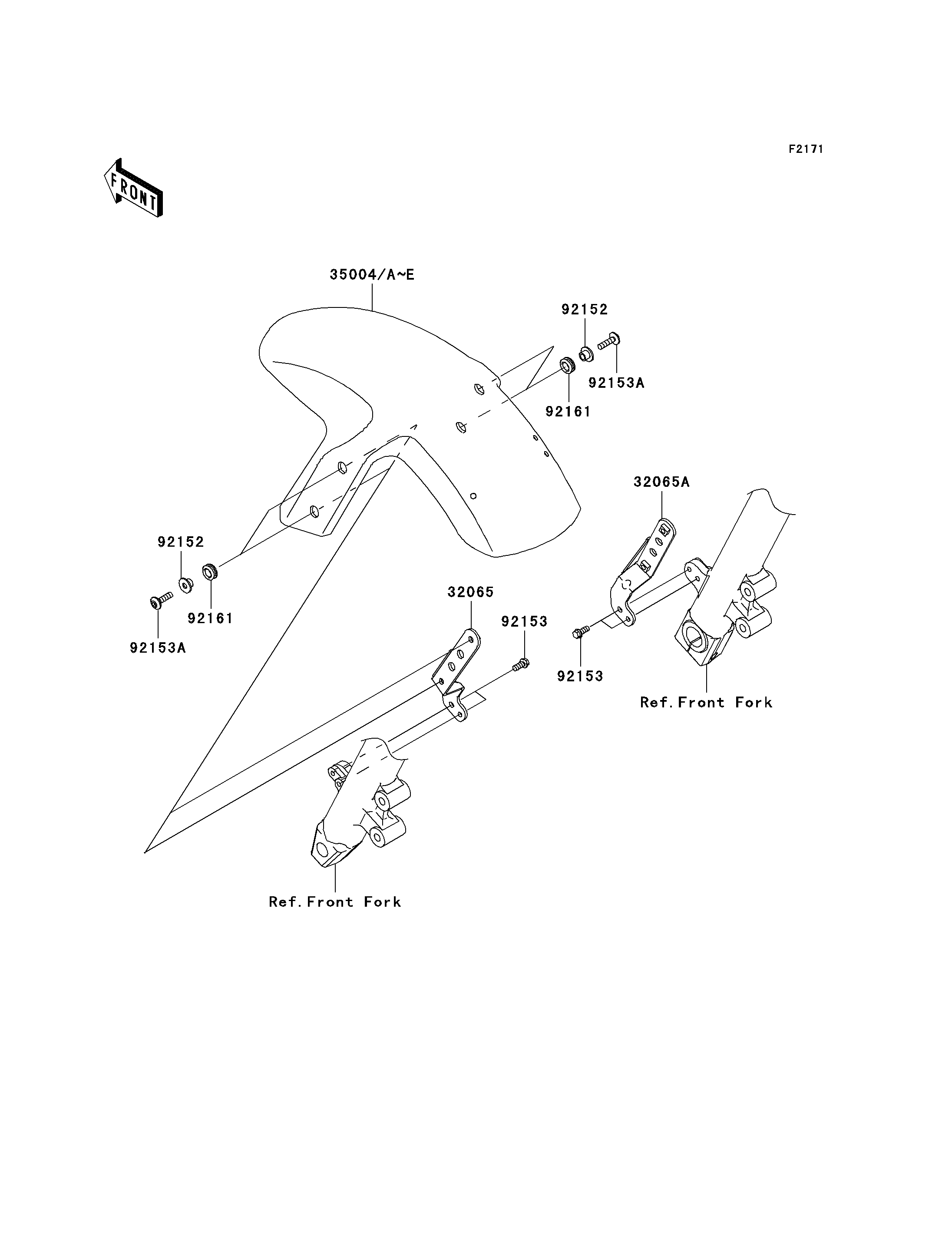

32065
32065A
35004A
35004B
92152
92152
92153
92153
92153A
92153A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-FENDER,LH 32065 32065-0022 1
BRACKET-FENDER,RH 32065A 32065-0023 1
FENDER-FRONT,C.P.BLUE 35004A 35004-0053-15D 1
FENDER-FRONT,C.L.GREEN 35004B 35004-0053-15P 1
COLLAR 92152 92152-0295 4
BOLT,FLANGED,6X14 92153 92153-0589 4
BOLT,SOCKET,6X23 92153A 92153-1267 4
DAMPER 92161 92161-0266 4
