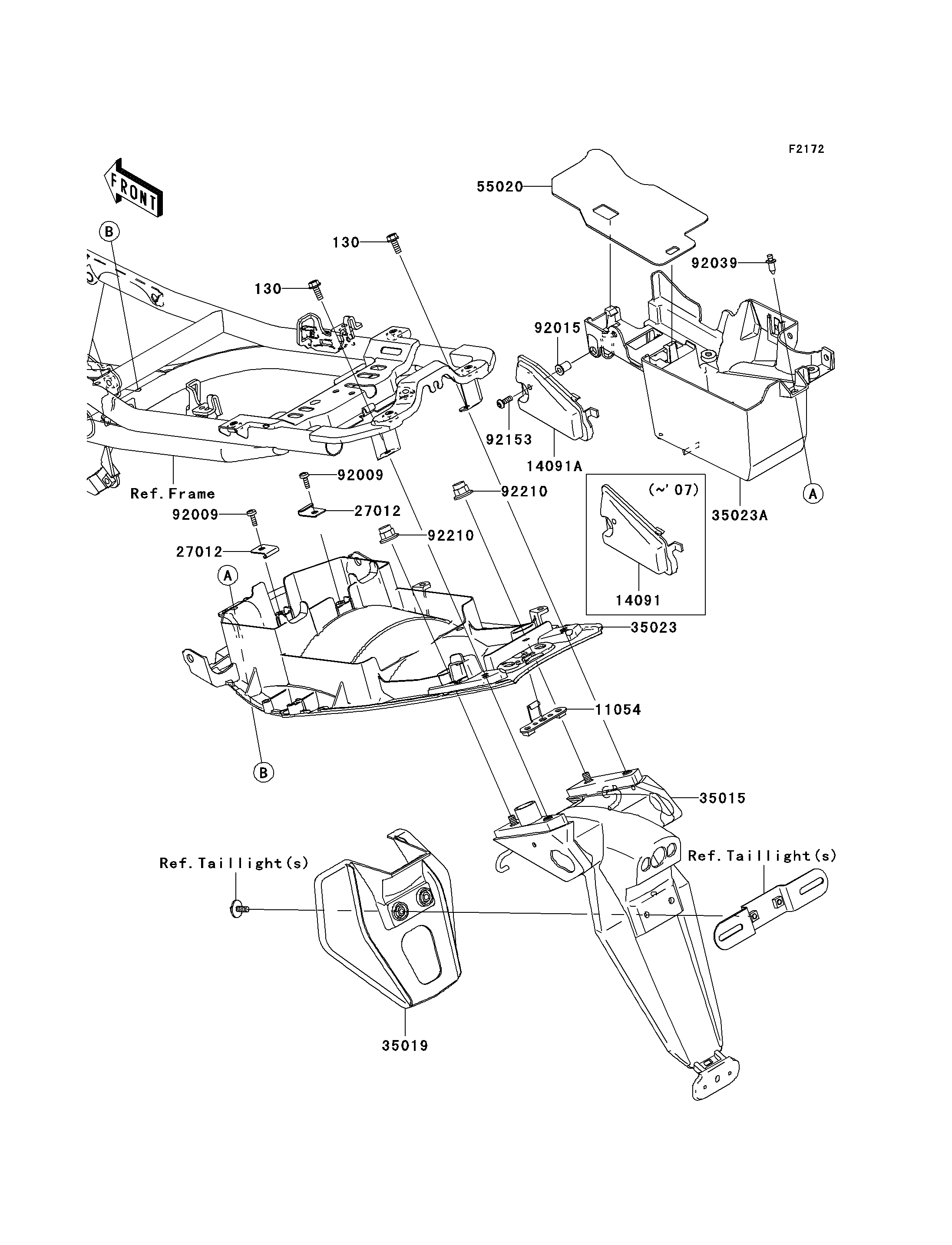

2008 ER-6n (Australian) - Rear Fender(s)
130
130
11054
14091A
27012
27012
35015
35019
35023
35023A
55020
92009
92009
92015
92039
92153
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X18 | 130 | 130BB0618 | 2 | ||
| BRACKET,TAIL LAMP | 11054 | 11054-0253 | 1 | ||
| COVER,SWITCH MAINTENANCE | 14091A | 14091-0715 | 1 | ||
| HOOK,BATTERY CASE | 27012 | 27012-1316 | 2 | ||
| FLAP-COMP | 35015 | 35015-0005 | 1 | ||
| FLAP | 35019 | 35019-0042 | 1 | ||
| FENDER-REAR,RR | 35023 | 35023-0076 | 1 | ||
| FENDER-REAR,FR | 35023A | 35023-0077 | 1 | ||
| GUARD,HEAT | 55020 | 55020-0220 | 1 | ||
| SCREW,6X14 | 92009 | 92009-3845 | 2 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 1 | ||
| RIVET | 92039 | 92039-1283 | 1 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 1 | ||
| NUT,CAP,6MM | 92210 | 92210-0170 | 2 |
