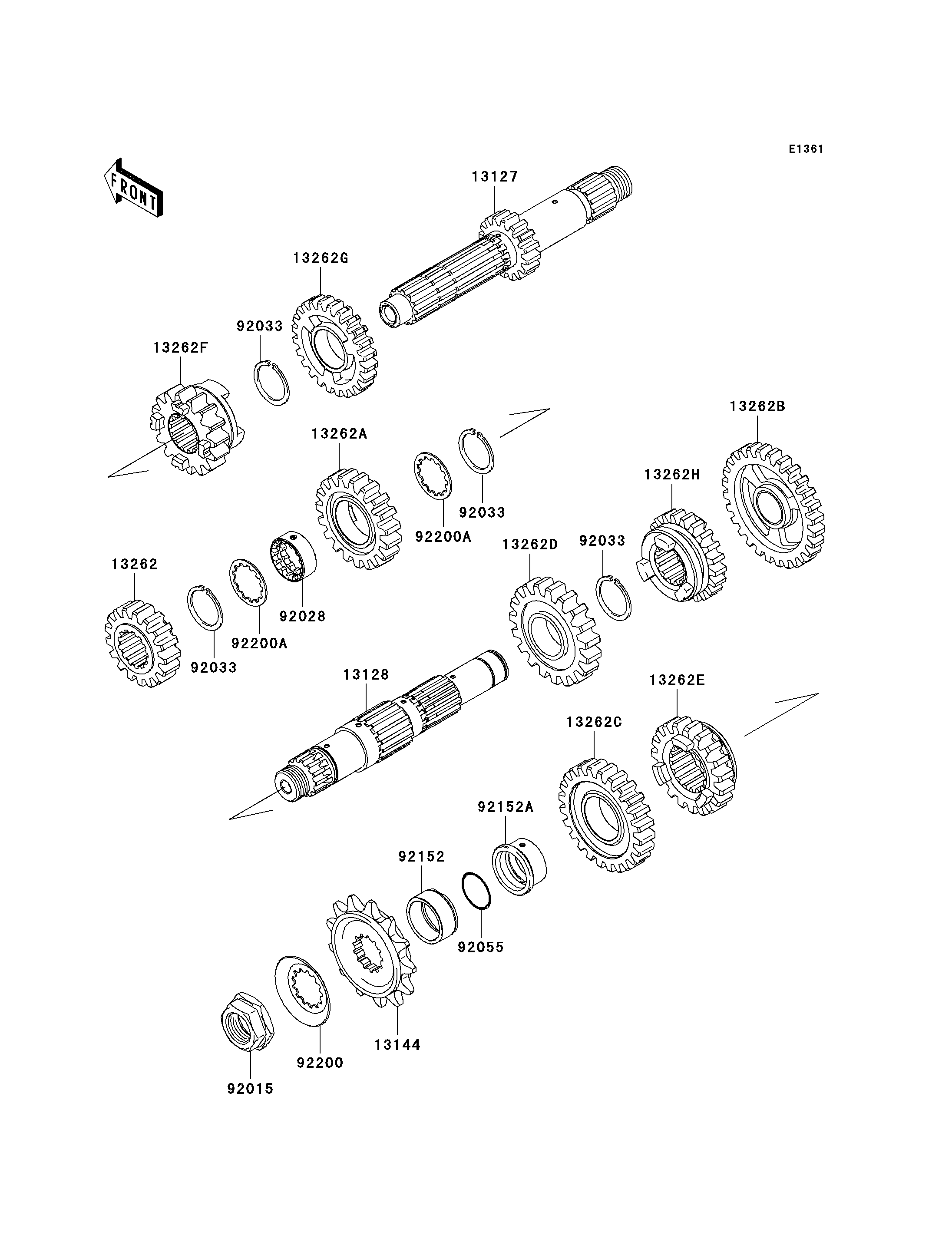

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92015
92028
92033
92033
92033
92033
92055
92152
92152A
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT-TRANSMISSION INPUT,12T | 13127 | 13127-0050 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0036 | 1 | ||
SPROCKET-OUTPUT,13T | 13144 | 13144-0041 | 1 | ||
GEAR,INPUT 2ND,15T | 13262 | 13262-0438 | 1 | ||
GEAR,INPUT 4TH,20T | 13262A | 13262-0440 | 1 | ||
GEAR,OUTPUT LOW,26T | 13262B | 13262-0442 | 1 | ||
GEAR,OUTPUT 2ND,23T | 13262C | 13262-0443 | 1 | ||
GEAR,OUTPUT 3RD,19T | 13262D | 13262-0444 | 1 | ||
GEAR,OUTPUT 4TH,19T | 13262E | 13262-0445 | 1 | ||
GEAR,INPUT 3RD,16T | 13262F | 13262-0567 | 1 | ||
GEAR,INPUT 5TH,21T | 13262G | 13262-0569 | 1 | ||
GEAR-TRANSMISSION SPUR | 13262H | 13262-0570 | 1 | ||
NUT,20MM | 92015 | 92015-1963 | 1 | ||
BUSHING,INPUT TOP GEAR | 92028 | 92028-1857 | 1 | ||
RING-SNAP,25MM | 92033 | 92033-1172 | 4 | ||
RING-O,21.5X1.5 | 92055 | 92055-1293 | 1 | ||
COLLAR,25X30X13.2 | 92152 | 92152-0150 | 1 | ||
COLLAR | 92152A | 92152-0540 | 1 | ||
WASHER | 92200 | 92200-0390 | 1 | ||
WASHER | 92200A | 92200-1389 | 2 |
SHAFT-TRANSMISSION INPUT,12T | |
REF # | 13127 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION OUTPUT | |
REF # | 13128 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-OUTPUT,13T | |
REF # | 13144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 2ND,15T | |
REF # | 13262 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 4TH,20T | |
REF # | 13262A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT LOW,26T | |
REF # | 13262B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 2ND,23T | |
REF # | 13262C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 3RD,19T | |
REF # | 13262D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 4TH,19T | |
REF # | 13262E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 3RD,16T | |
REF # | 13262F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 5TH,21T | |
REF # | 13262G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-TRANSMISSION SPUR | |
REF # | 13262H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,INPUT TOP GEAR | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,25MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,21.5X1.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,25X30X13.2 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
