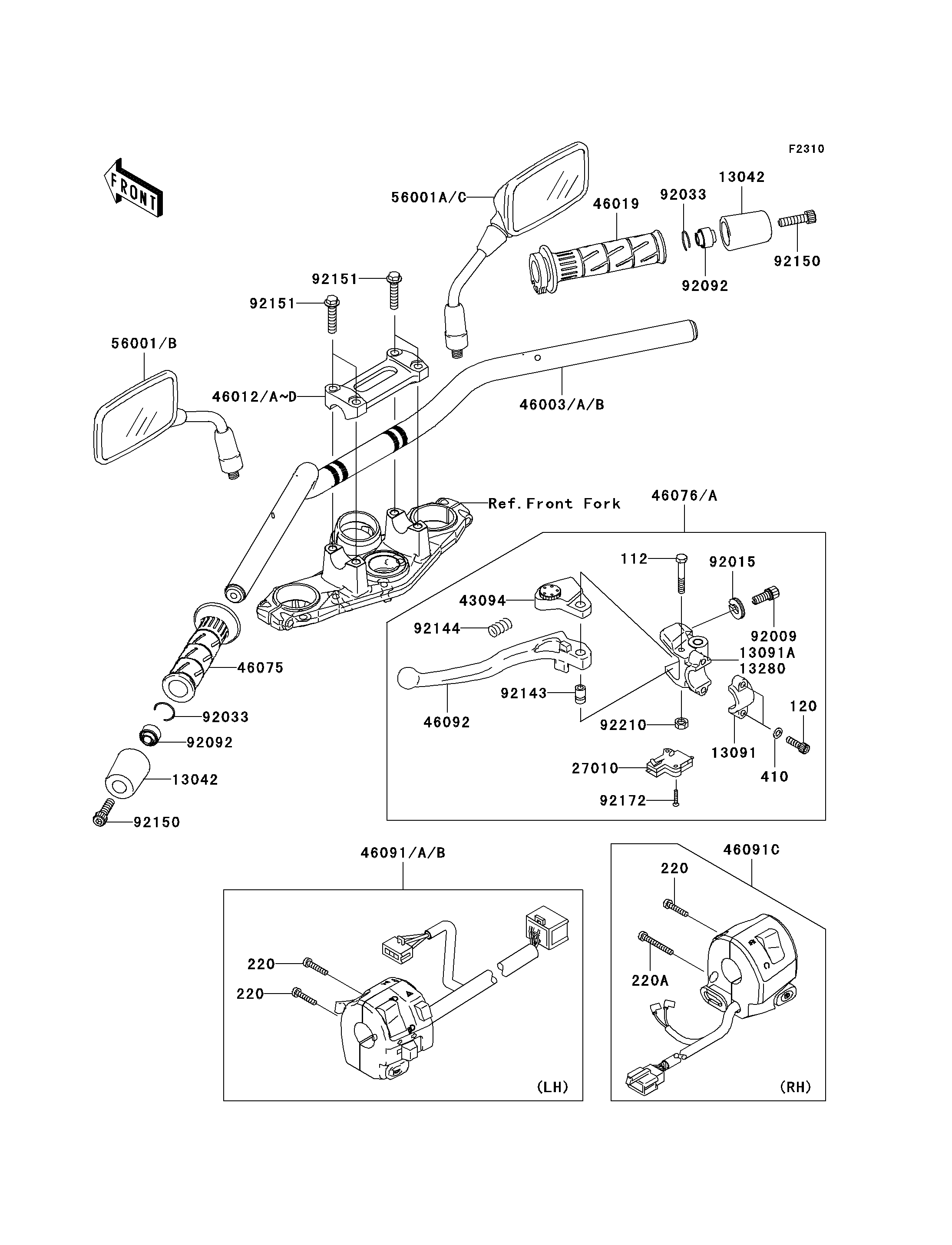

2008 ER-6n (Australian) - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
220
220
220
220A
410
13042
13042
13091
13280
27010
43094
46003
46003A
46012C
46012D
46019
46075
46076
46091B
46091C
46092
56001B
56001C
92009
92015
92033
92033
92092
92092
92143
92144
92150
92150
92151
92151
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X40 112 112C0640 1
BOLT-SOCKET,6X20 120 120CB0620 2
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROSS,5X40 220A 220AB0540 1
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 2
WEIGHT,HANDLE 13042 13042-1006 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0248 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,BLACK 46003 46003-0093-10 1
HANDLE,P.SILVER 46003A 46003-0093-458 1
HOLDER-HANDLE,UPP,BLACK 46012C 46012-0047-18R 1
HOLDER-HANDLE,UPP,P.SILVER 46012D 46012-0047-458 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0045 1
HOUSING-ASSY-CONTROL,LH 46091B 46091-0118 1
HOUSING-ASSY-CONTROL,RH 46091C 46091-1891 1
LEVER-GRIP,CLUTCH 46092 46092-1162 1
MIRROR-ASSY,LH 56001B 56001-0121 1
MIRROR-ASSY,RH 56001C 56001-0122 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
RING-SNAP,OD=22.2 92033 92033-1102 2
BUSHING-RUBBER,HANDLE 92092 92092-1018 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,SOCKET,8X30 92150 92150-1604 2
BOLT,FLANGED,8X35 92151 92151-1537 4
SCREW,3X16 92172 92172-0183 2
NUT,LOCK,6MM 92210 92210-0006 1
