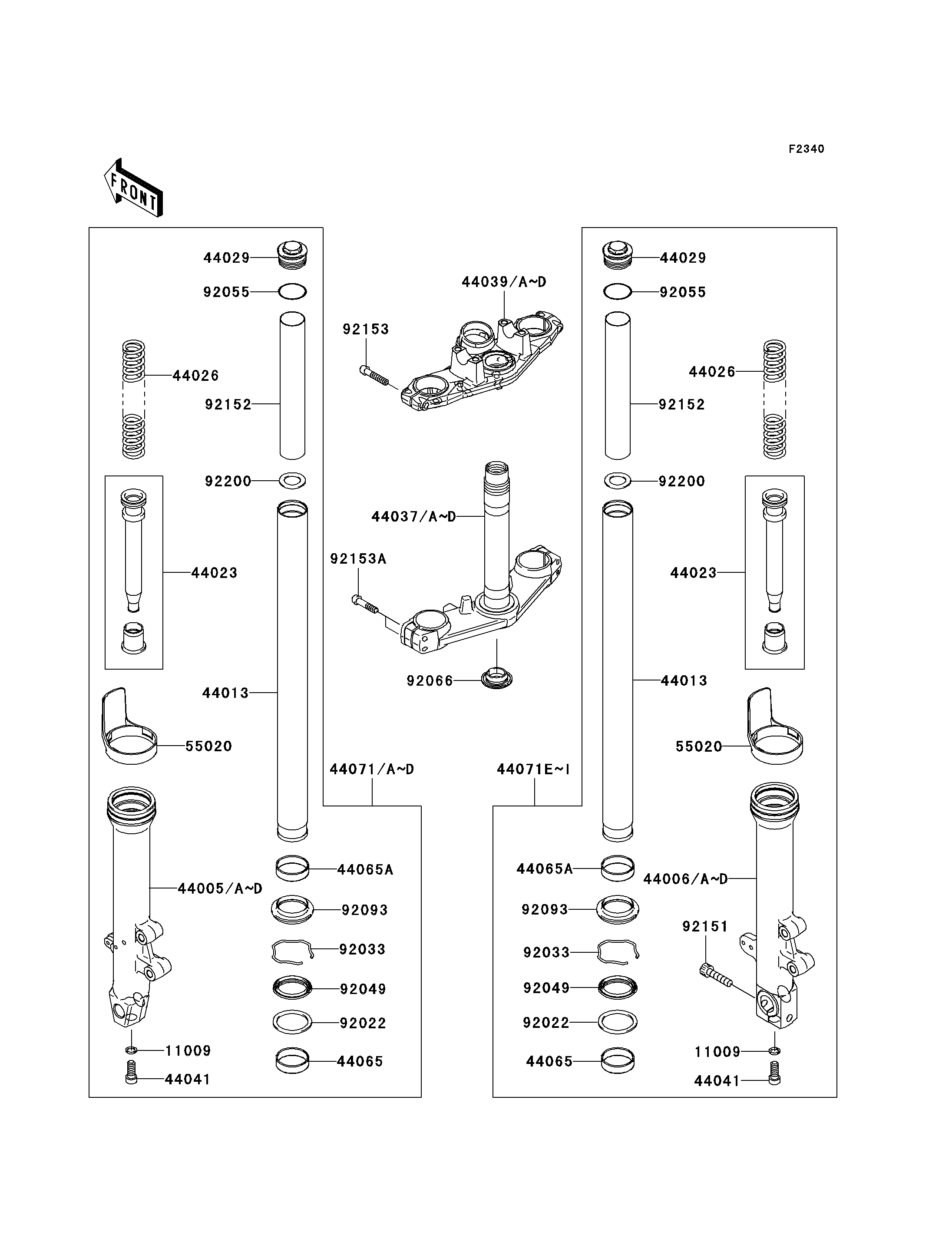

2008 ER-6n (Australian) - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
44005A
44005A
44005B
44005B
44006A
44006A
44006B
44006B
44013
44013
44013
44013
44023
44023
44023
44023
44026
44026
44026
44026
44029
44029
44029
44029
44037A
44037A
44037B
44037B
44039A
44039A
44039B
44039B
44041
44041
44041
44041
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44071A
44071A
44071B
44071B
44071F
44071F
44071G
44071G
55020
55020
55020
55020
92022
92022
92022
92022
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92066
92066
92093
92093
92093
92093
92151
92151
92152
92152
92152
92152
92153
92153
92153A
92153A
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
PIPE-LEFT FORK OUTER,BLACK 44005A 44005-0045-18R 1
PIPE-LEFT FORK OUTER,P.SILVER 44005B 44005-0045-458 1
PIPE-RIGHT FORK OUTER,BLACK 44006A 44006-0045-18R 1
PIPE-RIGHT FORK OUTER,P.SILVER 44006B 44006-0045-458 1
PIPE-FORK INNER 44013 44013-0055 2
CYLINDER-SET-FORK 44023 44023-0040 2
SPRING-FRONT FORK 44026 44026-0084 2
SEAT-FORK SPRING 44029 44029-0005 2
HOLDER-FORK UNDER,BLACK 44037A 44037-0050-18R 1
HOLDER-FORK UNDER,P.SILVER 44037B 44037-0050-458 1
HOLDER-FORK UPPER,BLACK 44039A 44039-0033-18R 1
HOLDER-FORK UPPER,P.SILVER 44039B 44039-0033-458 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
BUSHING-FRONT FORK,INNER TUBE 44065 44065-0014 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1115 2
DAMPER-ASSY,FORK,LH,BLACK 44071A 44071-0258-18R 1
DAMPER-ASSY,FORK,LH,P.SILVER 44071B 44071-0258-458 1
DAMPER-ASSY,FORK,RH,BLACK 44071F 44071-0259-18R 1
DAMPER-ASSY,FORK,RH,P.SILVER 44071G 44071-0259-458 1
GUARD,FORK 55020 55020-1691 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O 92055 92055-1321 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,SOCKET,10X40 92151 92151-1357 1
COLLAR,FORK 92152 92152-0410 2
BOLT,SOCKET,8X40 92153 92153-0506 2
BOLT,SOCKET,8X35 92153A 92153-1472 4
WASHER 92200 92200-1302 2
