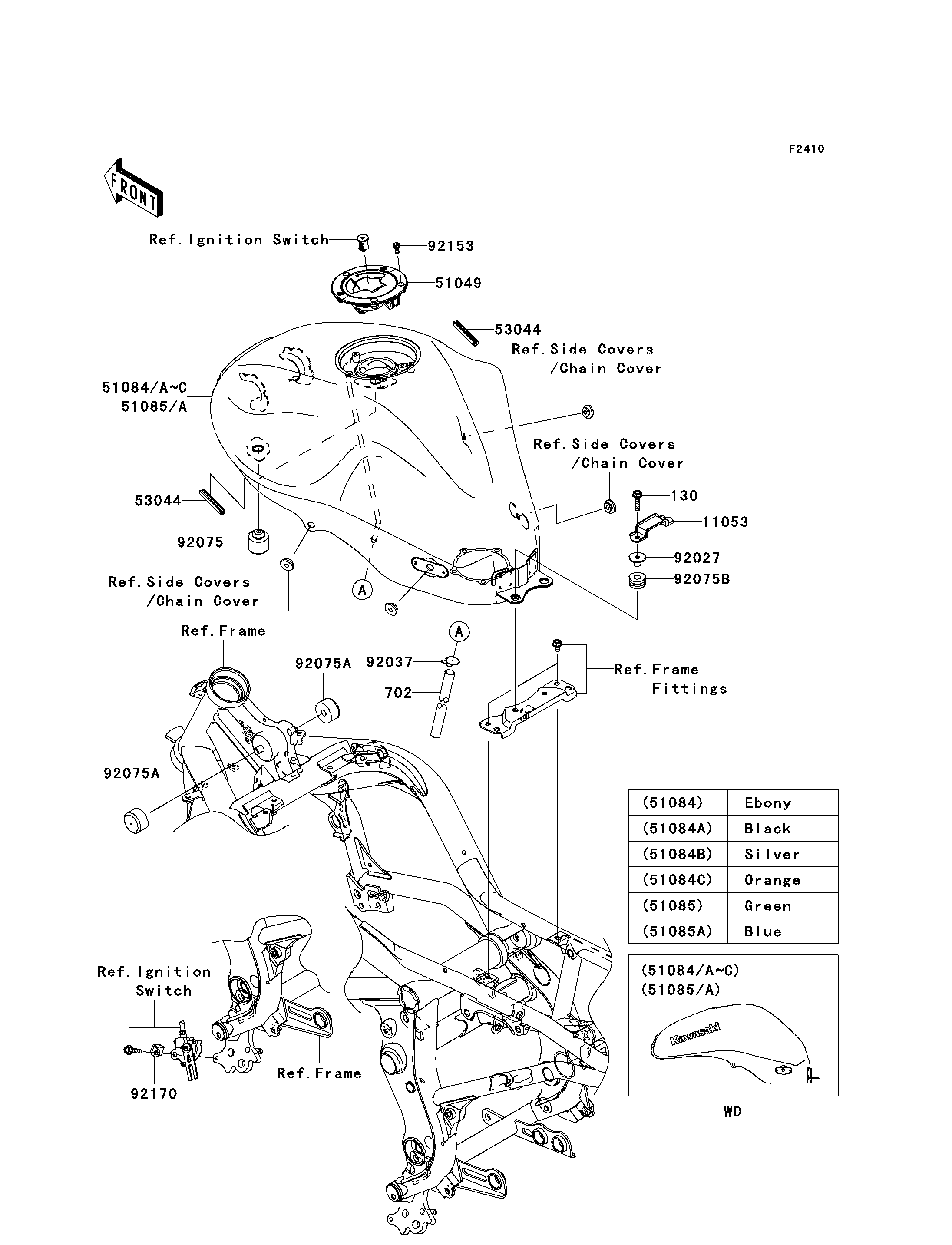

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
TUBE-RUBBER,6X9X750 702 702A06750 1
BRACKET,SEAT 11053 11053-1812 1
CAP-TANK,FUEL 51049 51049-0012 1
TANK-COMP-FUEL,C.L.GREEN 51085 51085-5362-15P 1
TANK-COMP-FUEL,C.P.BLUE 51085A 51085-5364-15D 1
TRIM,L=60 53044 53044-1249 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-010 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
BOLT,SOCKET,5X16 92153 92153-1616 3
CLAMP 92170 92170-1833 1
