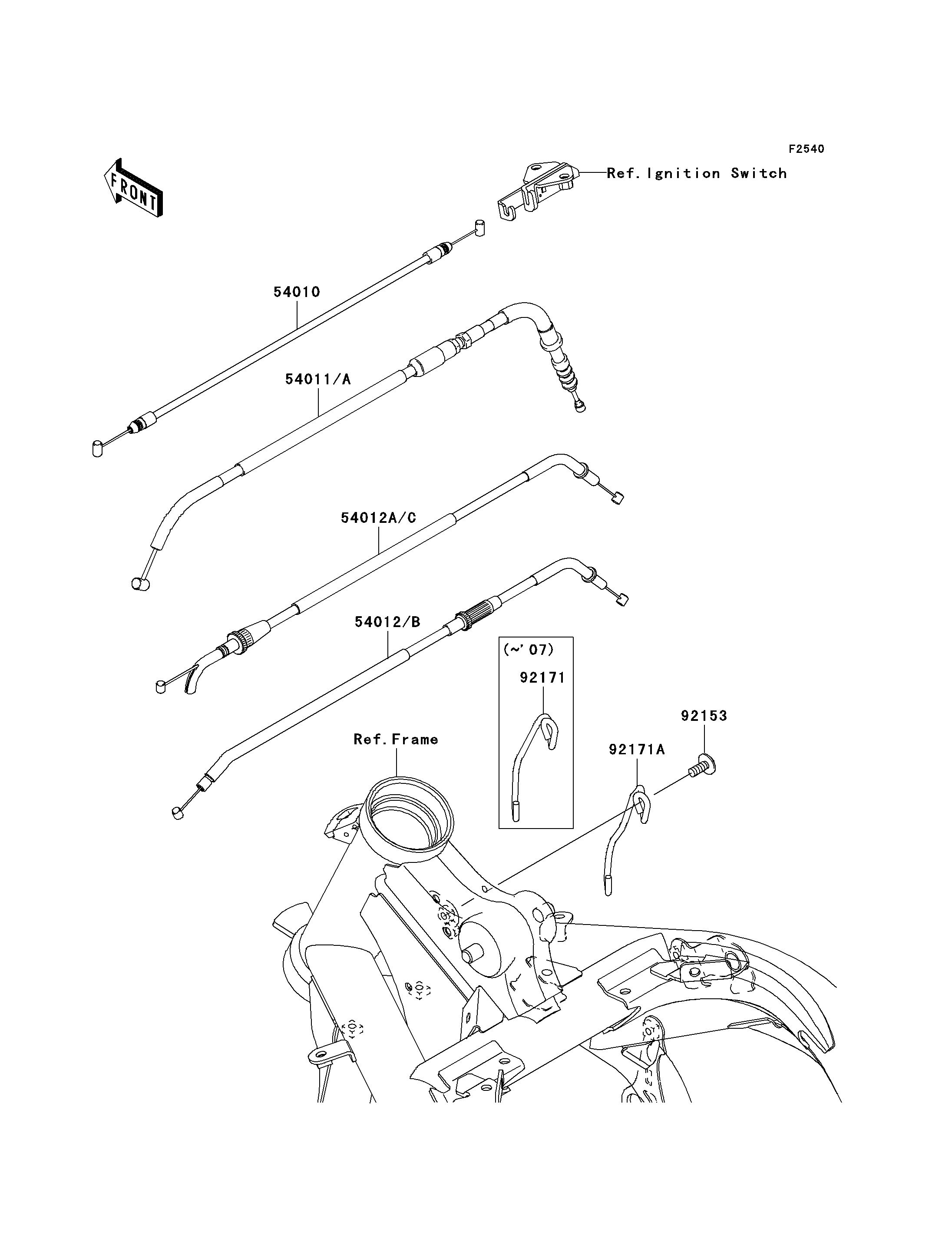

54010
54011A
54012B
54012C
92153
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SEAT LOCK 54010 54010-0029 1
CABLE-CLUTCH 54011A 54011-0083 1
CABLE-THROTTLE,CLOSING 54012B 54012-0225 1
CABLE-THROTTLE,OPENING 54012C 54012-0226 1
BOLT,SOCKET,6X14 92153 92153-1446 1
CLAMP,CABLE 92171A 92171-0971 1
