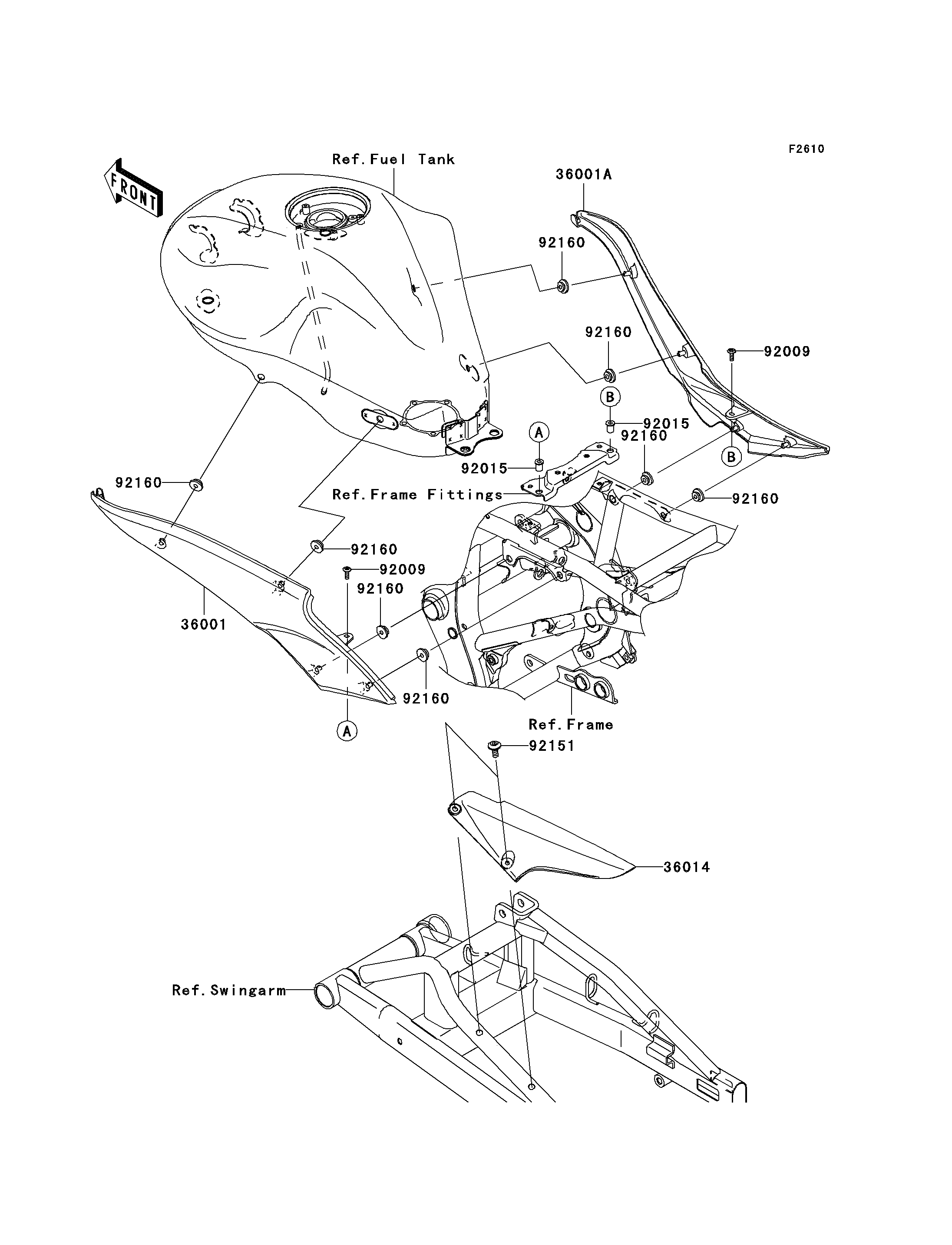

2008 ER-6n (Australian) - Side Covers/Chain Cover

36001
36001A
36014
92009
92009
92015
92015
92151
92160
92160
92160
92160
92160
92160
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,F.BLACK 36001 36001-0063-6Z 1
COVER-SIDE,RH,F.BLACK 36001A 36001-0064-6Z 1
CASE-CHAIN 36014 36014-0027 1
SCREW,5X16 92009 92009-1909 2
NUT,WELL,5MM 92015 92015-1757 2
BOLT,SOCKET,6X14 92151 92151-1654 2
DAMPER 92160 92160-1613 8
