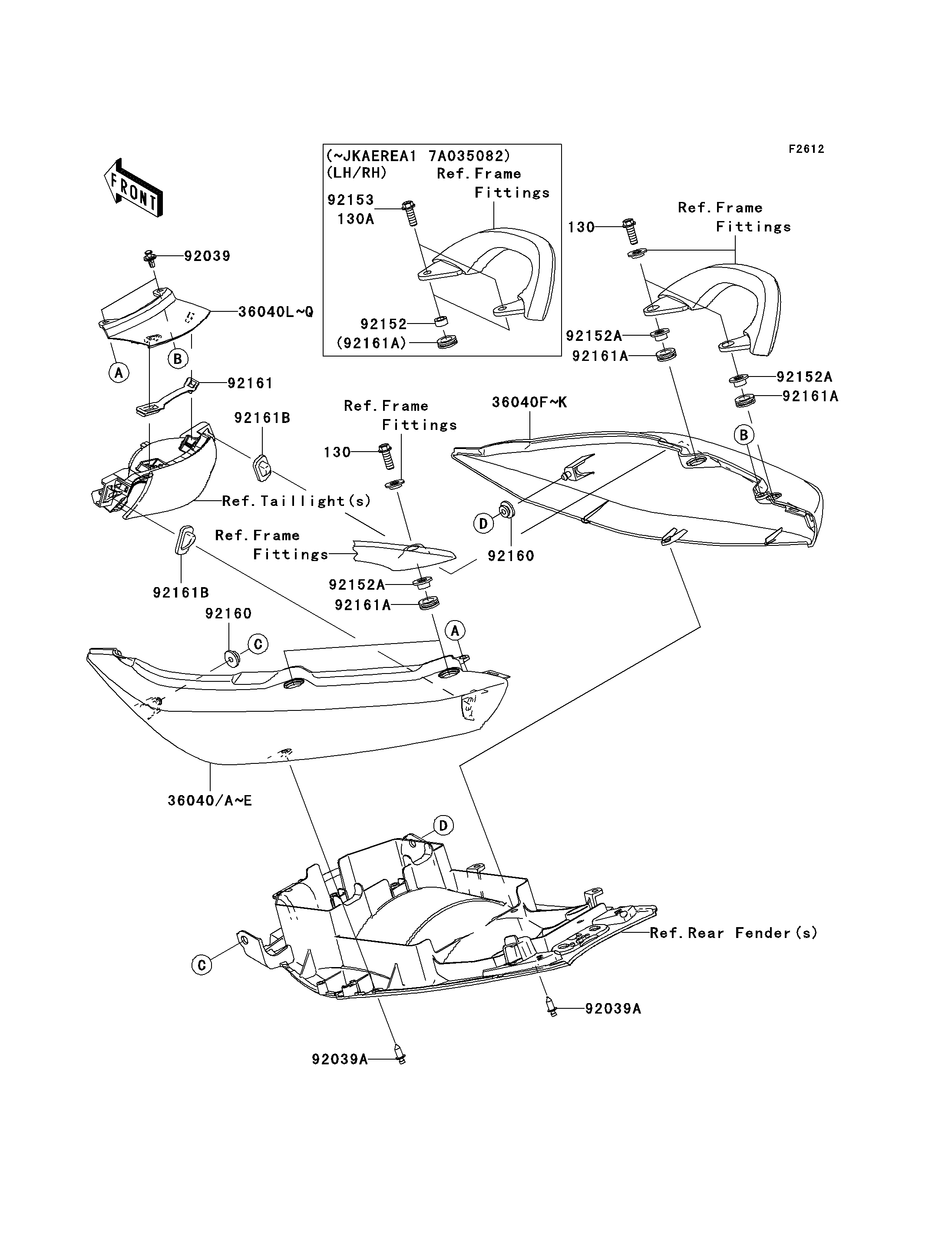

Parts Diagrams |
130
130
36040A
36040B
36040G
36040H
36040M
36040N
92039
92039A
92039A
92152A
92152A
92152A
92160
92160
92161
92161A
92161A
92161A
92161B
92161B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,BOLT-FLANGED,8X25 | 130 | 130CB0825 | 4 | (JKAEREA1 7A035083 - ) | |
| COVER-TAIL,LH,C.P.BLUE | 36040A | 36040-0037-15D | 1 | ||
| COVER-TAIL,LH,C.L.GREEN | 36040B | 36040-0037-15P | 1 | ||
| COVER-TAIL,RH,C.P.BLUE | 36040G | 36040-0038-15D | 1 | ||
| COVER-TAIL,RH,C.L.GREEN | 36040H | 36040-0038-15P | 1 | ||
| COVER-TAIL,CNT,C.P.BLUE | 36040M | 36040-0039-15D | 1 | ||
| COVER-TAIL,CNT,C.L.GREEN | 36040N | 36040-0039-15P | 1 | ||
| RIVET | 92039 | 92039-1227 | 2 | ||
| RIVET | 92039A | 92039-1283 | 2 | ||
| COLLAR | 92152A | 92152-0550 | 4 | (JKAEREA1 7A035083 - ) | |
| DAMPER | 92160 | 92160-1613 | 2 | ||
| DAMPER,TAIL LAMP | 92161 | 92161-0191 | 1 | ||
| DAMPER | 92161A | 92161-0279 | 4 | ||
| DAMPER | 92161B | 92161-0280 | 2 |
