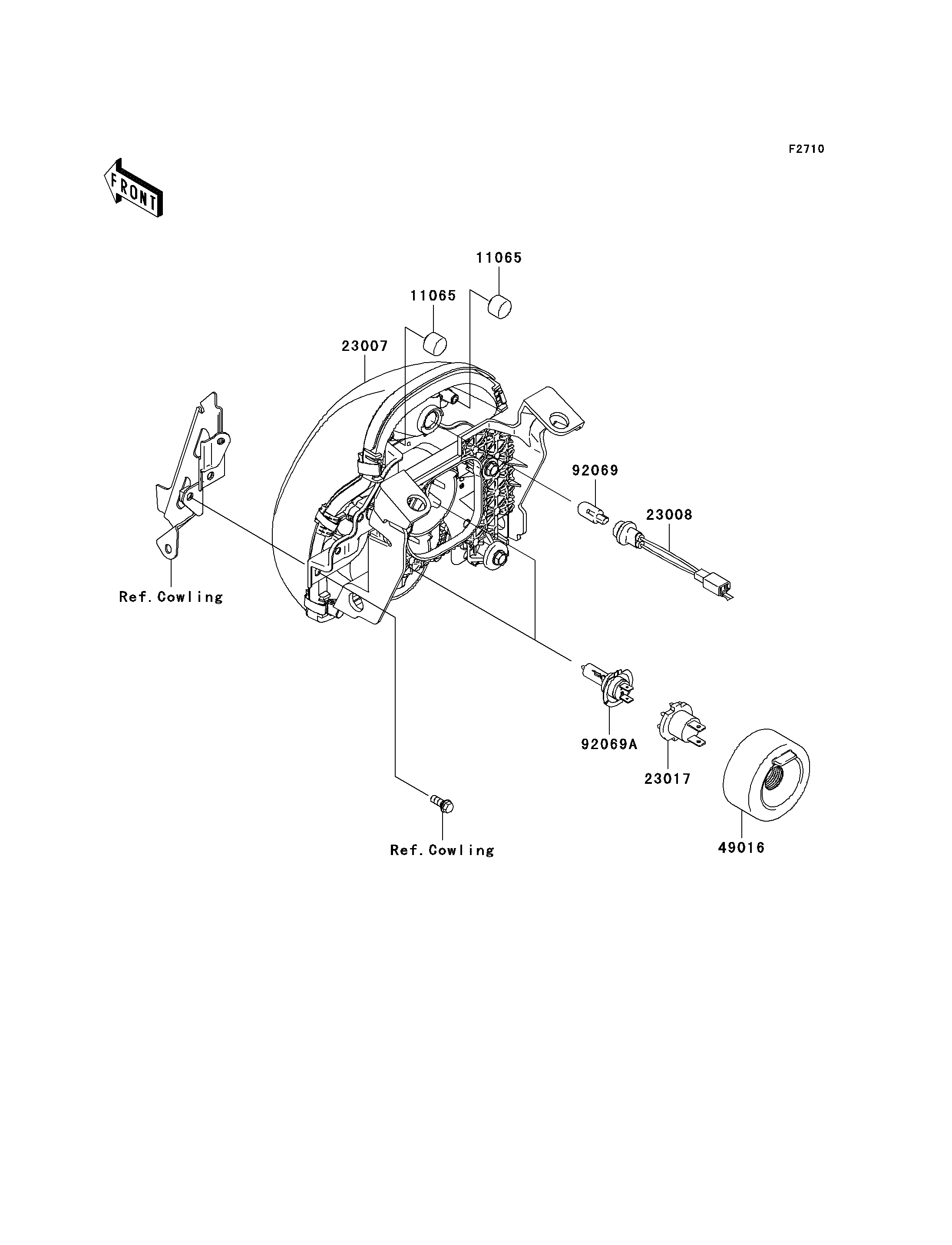

11065
11065
23007
23008
23017
49016
92069
92069A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0135 2
LENS-COMP,HEAD LAMP 23007 23007-0051 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0051 1
SOCKET,HEAD LAMP 23017 23017-1067 2
COVER-SEAL,HEAD LAMP 49016 49016-0017 2
BULB,12V 5W 92069 92069-1016 1
BULB,12V 55W,H7 92069A 92069-1126 2
