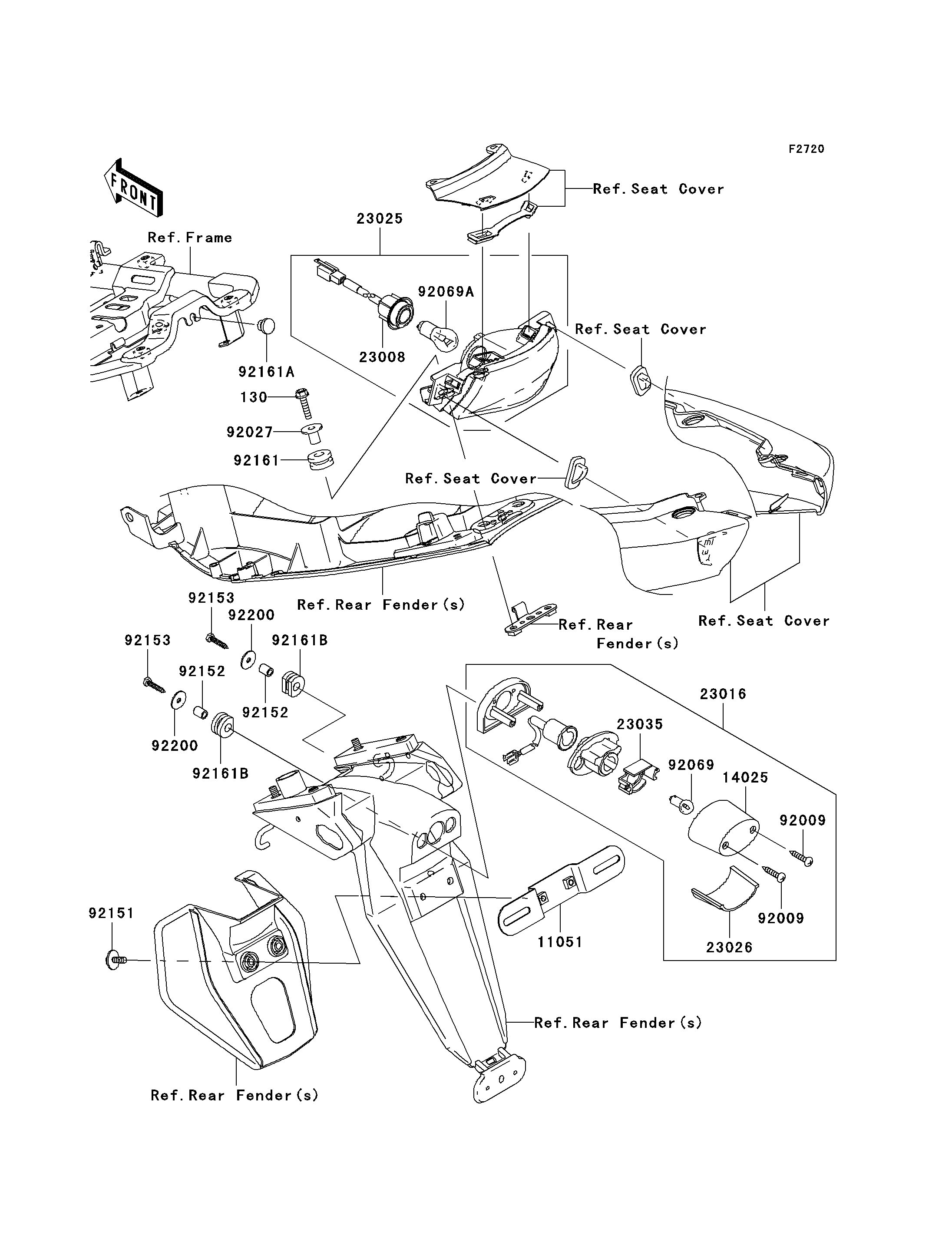

2008 ER-6n (Australian) - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11051
14025
23008
23016
23025
23026
23035
92009
92009
92027
92069
92069A
92151
92152
92152
92153
92153
92161
92161A
92161B
92161B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
BRACKET,LICENSE 11051 11051-1503 1
COVER,LICENSE LAMP 14025 14025-1725 1
SOCKET-ASSY,TAIL LAMP 23008 23008-0042 1
LAMP-ASSY,LICENSE 23016 23016-0003 1
LAMP-TAIL 23025 23025-0018 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
SCREW,TAPPING,4X20 92009 92009-1378 2
COLLAR,L=16.1 92027 92027-1847 2
BULB,12V 5W 92069 92069-1055 1
BULB,12V 21/5W 92069A 92069-1084 1
BOLT,6X25 92151 92151-1241 2
COLLAR,6X9X11.5 92152 92152-0372 2
BOLT,TAPPING,5X25 92153 92153-1424 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-1084 1
DAMPER 92161B 92161-1313 2
WASHER,5.5X20X1.2 92200 92200-0284 2
