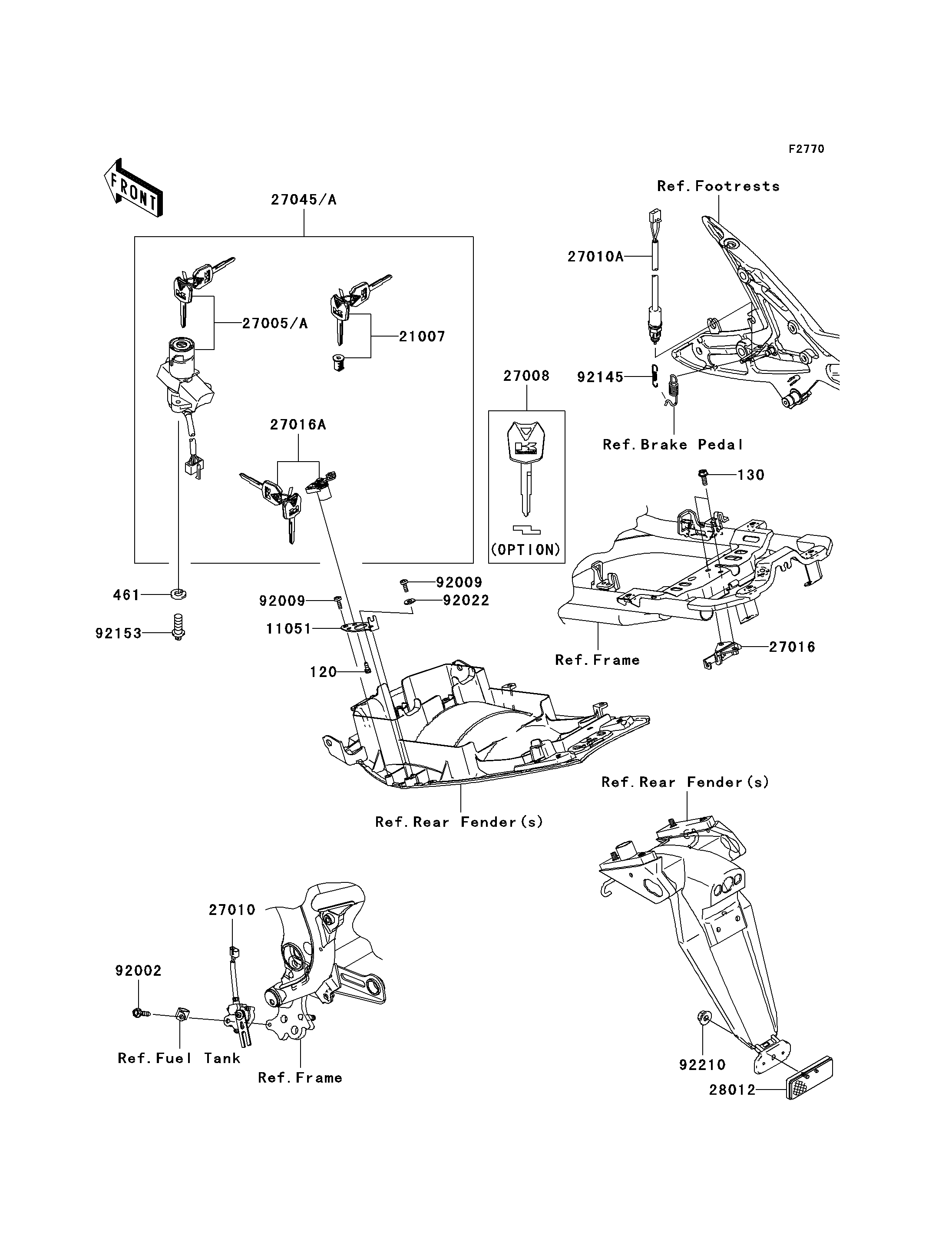

2008 ER-6n (Australian) - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
130
461
11051
21007
27005A
27008
27010
27010A
27016
27016A
27045A
28012
92002
92009
92009
92022
92145
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 2
BOLT-FLANGED,6X12 130 130BB0612 2
WASHER-SPRING 461 461L0600 2
BRACKET,SEAT LOCK 11051 11051-1370 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005A 27005-5139 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1455 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5309 1
SWITCH-ASSY 27045A 27045-5356 1
REFLECTOR-REFLEX 28012 28012-1077 1
BOLT,FLANGED,6X25 92002 92002-1582 1
SCREW,6X14 92009 92009-3845 2
WASHER,6.5X16X2 92022 92022-1342 1
SPRING,REAR BRAKE SWITCH 92145 92145-0091 1
BOLT,TORX,6X16 92153 92153-0967 2
NUT,FLANGED,5MM 92210 92210-0007 1
