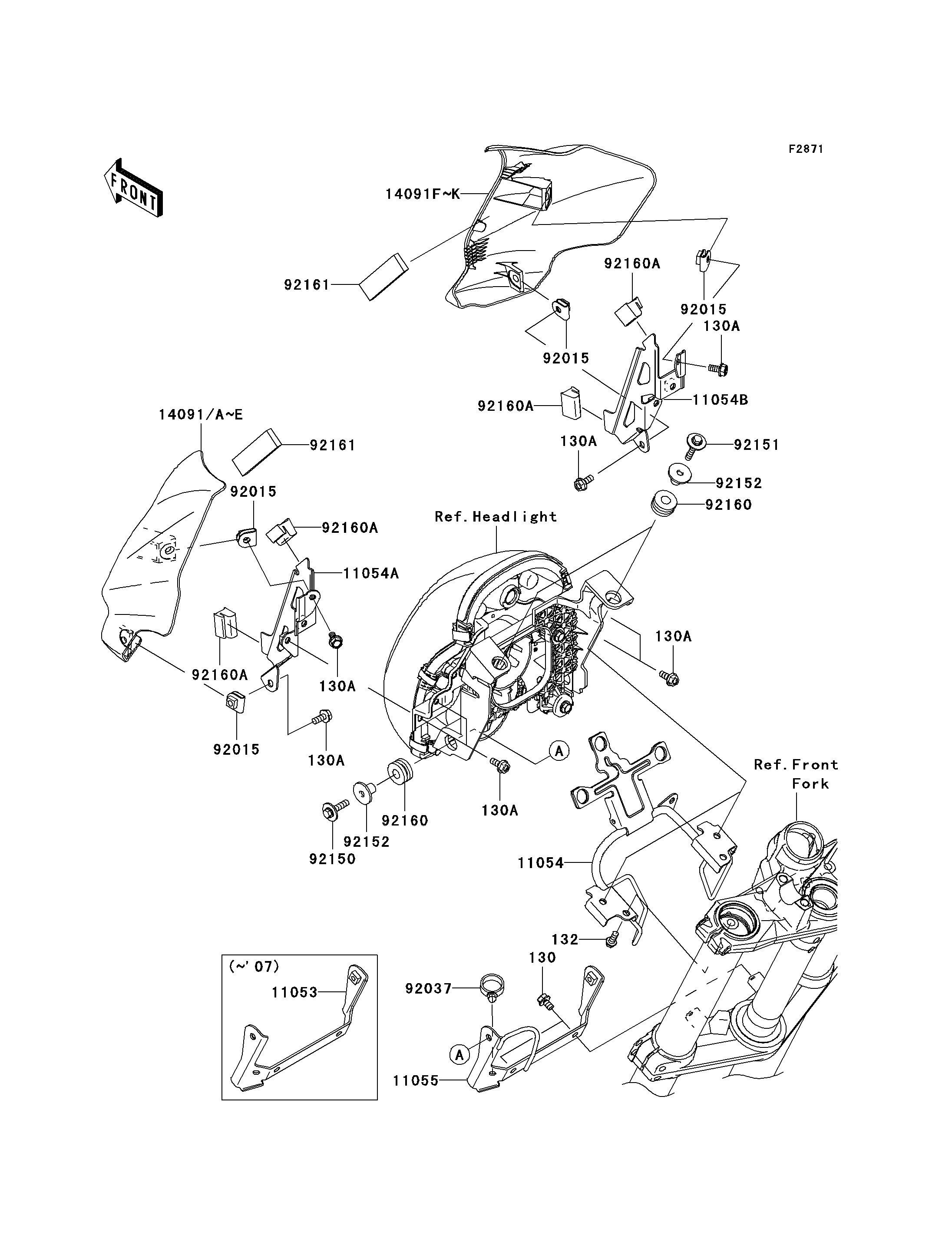

2008 ER-6n (Australian) - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130A
130A
130A
132
11054
11054A
11054B
11055
14091A
14091B
14091G
14091H
92015
92015
92015
92015
92037
92150
92151
92152
92152
92160
92160
92160A
92160A
92160A
92160A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED,6X14 130A 130BB0614 8
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
BRACKET,HEAD LAMP,UPP 11054 11054-0220 1
BRACKET,HEAD LAMP,LH 11054A 11054-0251 1
BRACKET,HEAD LAMP,RH 11054B 11054-0252 1
BRACKET,HEAD LAMP,LWR 11055 11055-0178 1
COVER,HEAD LAMP,LH,C.P.BLUE 14091A 14091-0458-15D 1
COVER,HEAD LAMP,LH,C.L.GREEN 14091B 14091-0458-15P 1
COVER,HEAD LAMP,RH,C.P.BLUE 14091G 14091-0459-15D 1
COVER,HEAD LAMP,RH,C.L.GREEN 14091H 14091-0459-15P 1
NUT,CLIP,6MM 92015 92015-1904 4
CLAMP,HOSE 92037 92037-1827 1
BOLT,6X25 92150 92150-1829 2
BOLT,FLANGED,6X30 92151 92151-1105 2
COLLAR 92152 92152-0048 4
DAMPER 92160 92160-1162 4
DAMPER 92160A 92160-1197 4
DAMPER,HEAD LAMP COVER 92161 92161-0349 2
