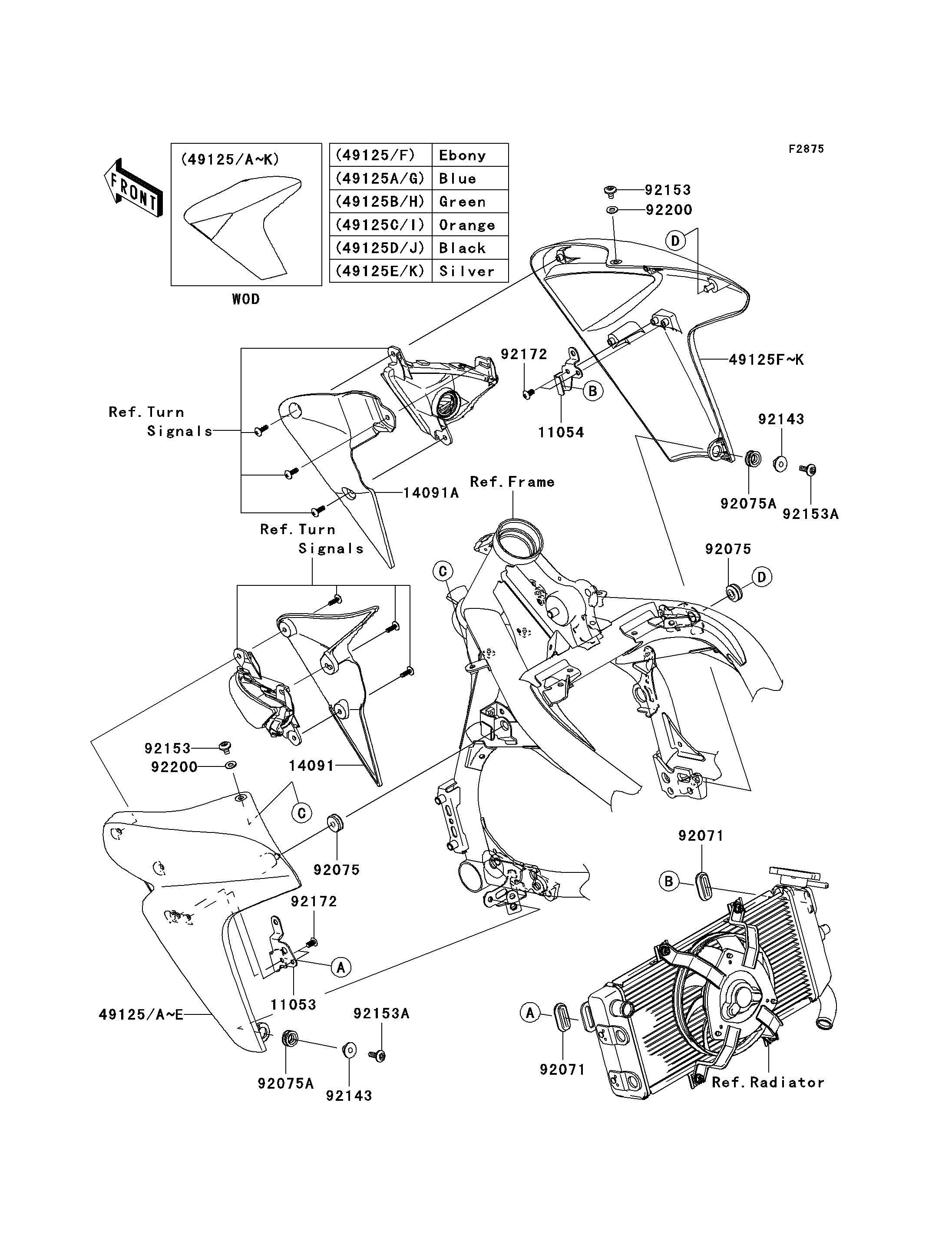

2008 ER-6n (Australian) - Shroud

DOWNLOAD PDF
SELECT A NEW PART
11053
11054
14091
14091A
49125A
49125B
49125G
49125H
92071
92071
92075
92075
92075A
92075A
92143
92143
92153
92153
92153A
92153A
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,LH 11053 11053-1814 1
BRACKET,SHROUD,RH 11054 11054-0256 1
COVER,SHROUD,LH 14091 14091-0543 1
COVER,SHROUD,RH 14091A 14091-0544 1
SHROUD,LH,C.P.BLUE 49125A 49125-0018-15D 1
SHROUD,LH,C.L.GREEN 49125B 49125-0018-15P 1
SHROUD,RH,C.P.BLUE 49125G 49125-0019-15D 1
SHROUD,RH,C.L.GREEN 49125H 49125-0019-15P 1
GROMMET 92071 92071-0013 2
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,SOCKET,6X10 92153 92153-0411 2
BOLT,6X18 92153A 92153-0816 2
SCREW,TAPPING,5X14 92172 92172-0006 4
WASHER,6.5X14X1 92200 92200-1388 2
