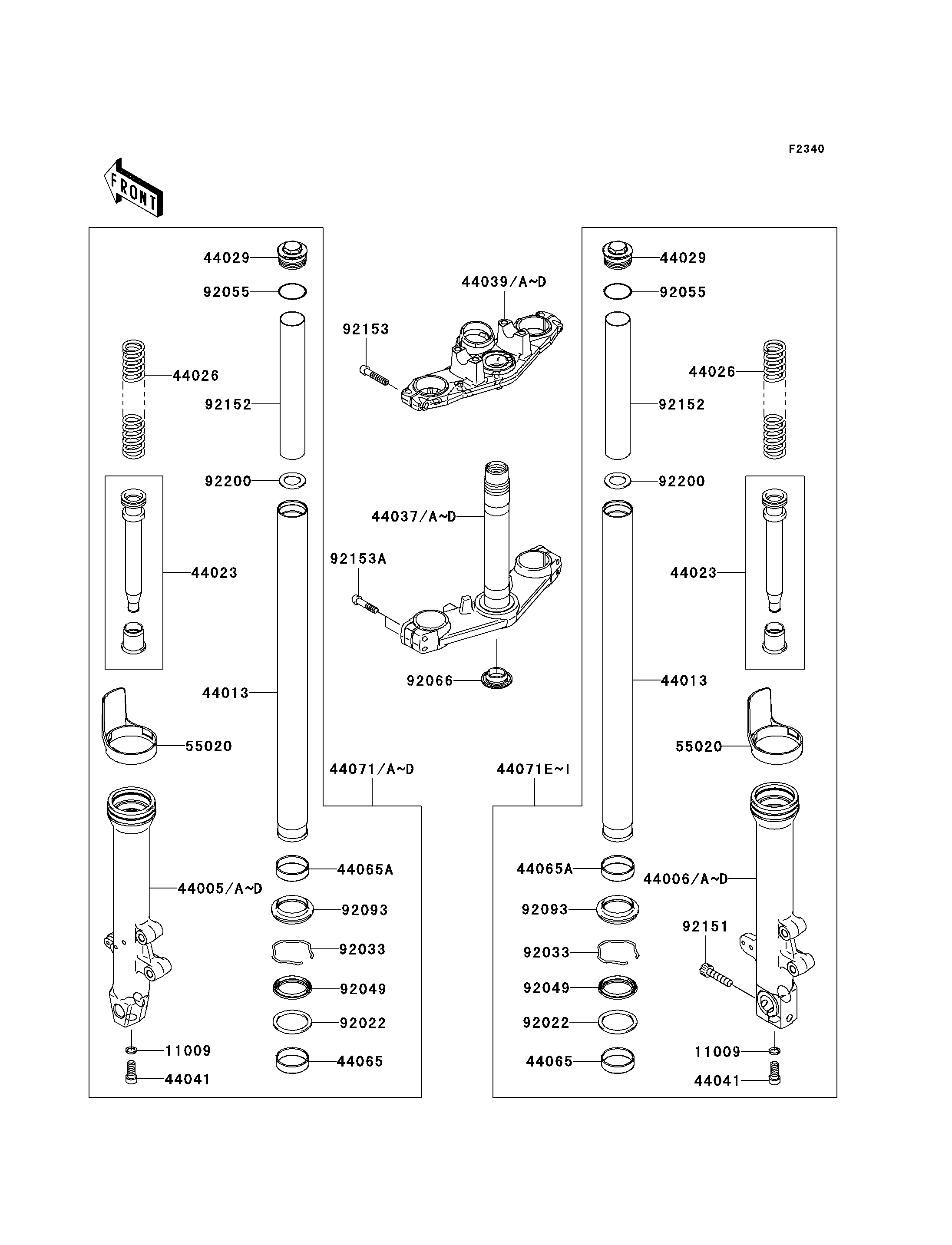

2006 ER-6n (European) - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
44005C
44005C
44005D
44005D
44006C
44006C
44006D
44006D
44013
44013
44013
44013
44023
44023
44023
44023
44026
44026
44026
44026
44029
44029
44029
44029
44037C
44037C
44037D
44037D
44039C
44039C
44039D
44039D
44041
44041
44041
44041
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44071C
44071C
44071D
44071D
44071H
44071H
44071I
44071I
55020
55020
55020
55020
92022
92022
92022
92022
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92066
92066
92093
92093
92093
92093
92151
92151
92152
92152
92152
92152
92153
92153
92153A
92153A
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
PIPE-LEFT FORK OUTER,M.BRONZE 44005C 44005-0045-793 1
PIPE-LEFT FORK OUTER,P.RED 44005D 44005-0045-796 1
PIPE-RIGHT FORK OUTER,M.BRONZE 44006C 44006-0045-793 1
PIPE-RIGHT FORK OUTER,P.RED 44006D 44006-0045-796 1
PIPE-FORK INNER 44013 44013-0055 2
CYLINDER-SET-FORK 44023 44023-0040 2
SPRING-FRONT FORK 44026 44026-0084 2
SEAT-FORK SPRING 44029 44029-0005 2
HOLDER-FORK UNDER,M.BRONZE 44037C 44037-0050-793 1
HOLDER-FORK UNDER,P.RED 44037D 44037-0050-796 1
HOLDER-FORK UPPER,M.BRONZE 44039C 44039-0033-793 1
HOLDER-FORK UPPER,P.RED 44039D 44039-0033-796 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
BUSHING-FRONT FORK,INNER TUBE 44065 44065-0014 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1115 2
DAMPER-ASSY,FORK,LH,M.BRONZE 44071C 44071-0258-793 1
DAMPER-ASSY,FORK,LH,P.RED 44071D 44071-0258-796 1
DAMPER-ASSY,FORK,RH,M.BRONZE 44071H 44071-0259-793 1
DAMPER-ASSY,FORK,RH,P.RED 44071I 44071-0259-796 1
GUARD,FORK 55020 55020-1691 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O 92055 92055-1321 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,SOCKET,10X40 92151 92151-1357 1
COLLAR,FORK 92152 92152-0410 2
BOLT,SOCKET,8X40 92153 92153-0506 2
BOLT,SOCKET,8X35 92153A 92153-1472 4
WASHER 92200 92200-1302 2
