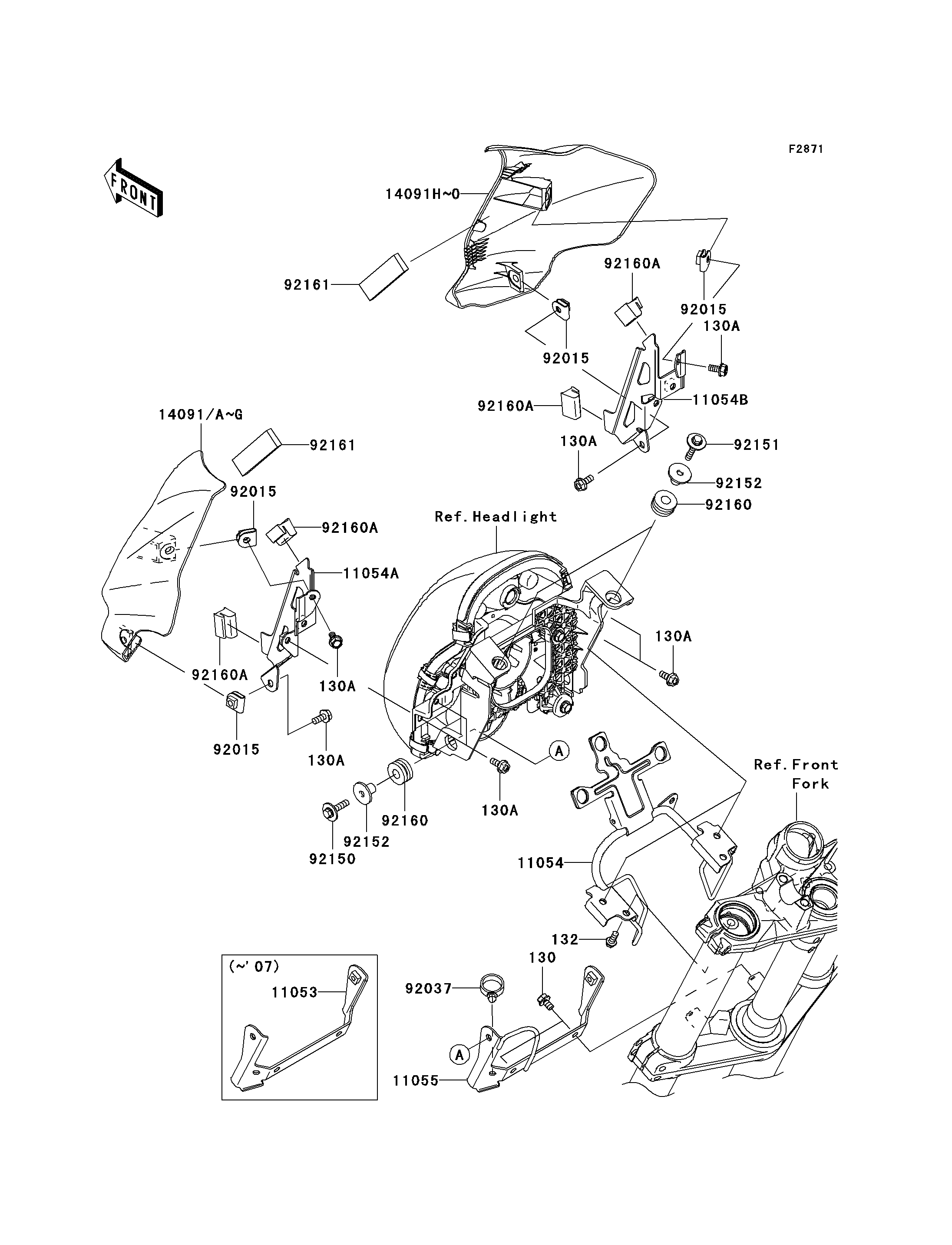

2006 ER-6n (European) - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130A
130A
130A
132
11053
11054
11054A
11054B
14091
14091F
14091G
14091H
14091N
14091O
92015
92015
92015
92015
92037
92150
92151
92152
92152
92160
92160
92160A
92160A
92160A
92160A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED,6X14 130A 130BB0614 8
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
BRACKET,HEAD LAMP,LWR 11053 11053-1811 1
BRACKET,HEAD LAMP,UPP 11054 11054-0220 1
BRACKET,HEAD LAMP,LH 11054A 11054-0251 1
BRACKET,HEAD LAMP,RH 11054B 11054-0252 1
COVER,HEAD LAMP,LH,EBONY 14091 14091-0458-H8 1
COVER,HEAD LAMP,LH,G.SILVER 14091F 14091-0458-474 1
COVER,HEAD LAMP,LH,V.YELLOW 14091G 14091-0458-789 1
COVER,HEAD LAMP,RH,EBONY 14091H 14091-0459-H8 1
COVER,HEAD LAMP,RH,G.SILVER 14091N 14091-0459-474 1
COVER,HEAD LAMP,RH,V.YELLOW 14091O 14091-0459-789 1
NUT,CLIP,6MM 92015 92015-1904 4
CLAMP,HOSE 92037 92037-1827 1
BOLT,6X25 92150 92150-1829 2
BOLT,FLANGED,6X30 92151 92151-1105 2
COLLAR 92152 92152-0048 4
DAMPER 92160 92160-1162 4
DAMPER 92160A 92160-1197 4
DAMPER,HEAD LAMP COVER 92161 92161-0349 2
