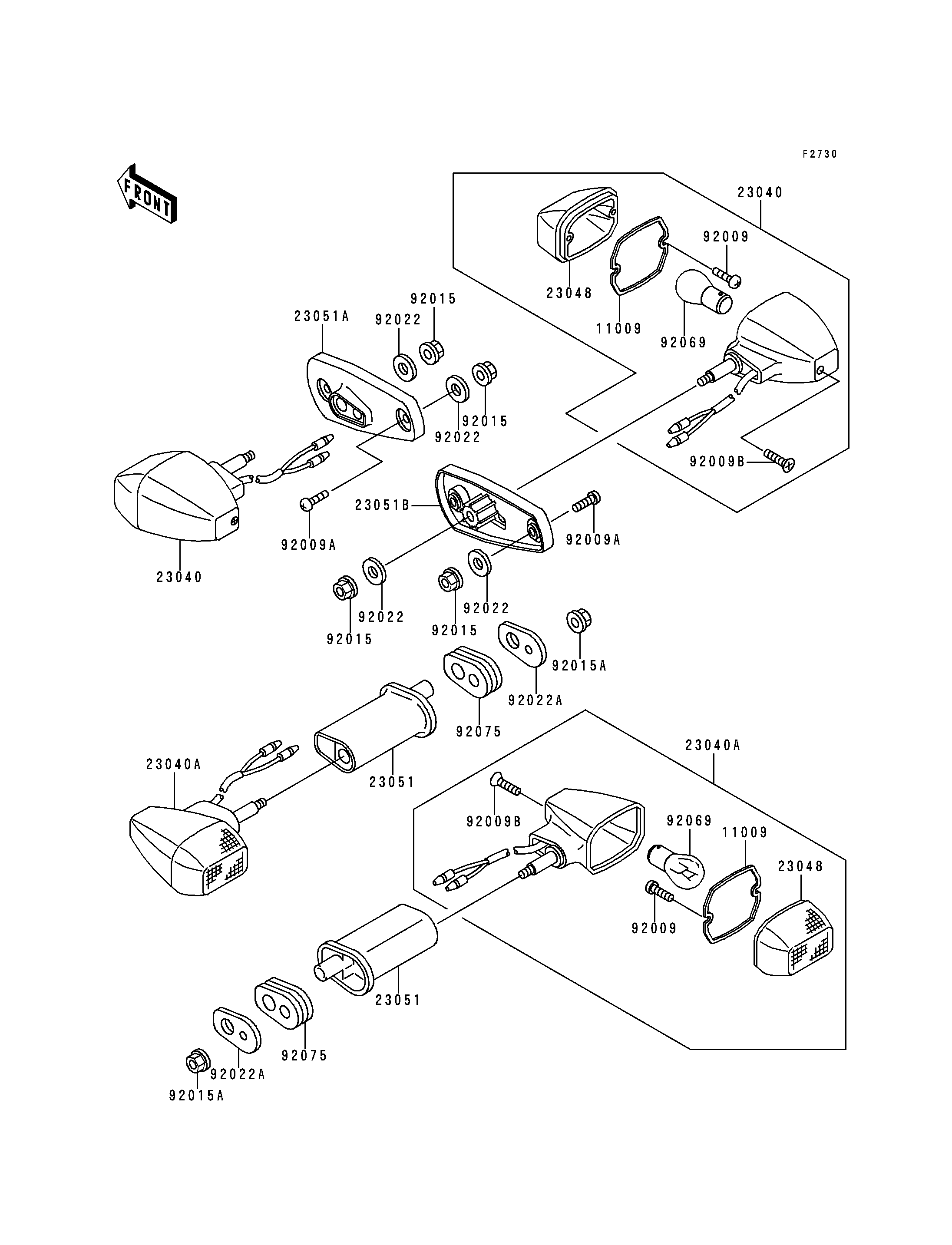

Parts Diagrams |
11009
11009
23040
23040
23040A
23040A
23048
23048
23051
23051
23051A
23051B
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92069
92069
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11009 | 11009-1402 | 4 | ||
| LAMP-SIGNAL,FR | 23040 | 23040-1105 | 2 | ||
| LAMP-SIGNAL,RR | 23040A | 23040-1195 | 2 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-1054 | 4 | ||
| BRACKET-SIGNAL LAMP | 23051 | 23051-1164 | 2 | ||
| BRACKET-SIGNAL LAMP,FR,LH | 23051A | 23051-1199 | 1 | ||
| BRACKET-SIGNAL LAMP,FR,RH | 23051B | 23051-1200 | 1 | ||
| SCREW,TAPPING,3X16 | 92009 | 92009-1115 | 8 | ||
| SCREW,6X18,BLACK | 92009A | 92009-1181 | 4 | ||
| SCREW,TAPPING,4X20 | 92009B | 92009-1304 | 4 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 6 | ||
| NUT,FLANGED,6MM | 92015A | 92015-1367 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 6 | ||
| WASHER,SIGNAL LAMP | 92022A | 92022-1672 | 2 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 4 | ||
| DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 2 |
