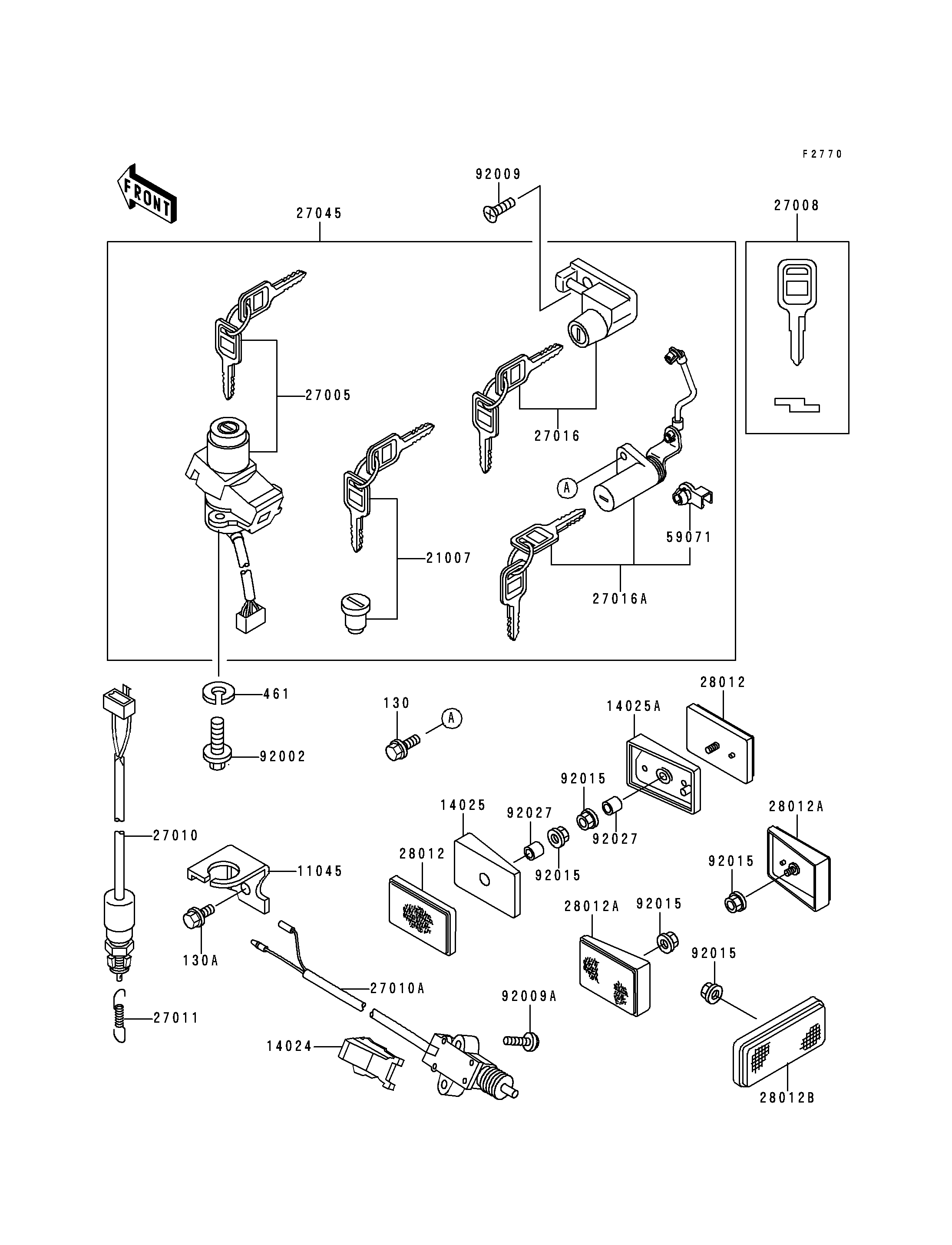

1997 Ninja® 250R - Ignition Switch/Locks/Reflectors
130
130A
461
11045
14024
14025
14025A
21007
27005
27008
27010
27010A
27011
27016
27016A
27045
28012
28012
28012A
28012A
28012B
59071
92002
92009
92009A
92015
92015
92015
92015
92015
92027
92027
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130B0510 | 2 | ||
BOLT-FLANGED | 130A | 130D0610 | 1 | ||
WASHER-SPRING | 461 | 461L0600 | 2 | ||
BRACKET,REAR BRAKE SWITCH | 11045 | 11045-1641 | 1 | ||
COVER,SIDE STAND SWITCH | 14024 | 14024-1532 | 1 | ||
COVER,REFLECTOR,FR | 14025 | 14025-1886 | 1 | ||
COVER,REFLECTOR,FR | 14025A | 14025-1887 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5037 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-5105 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1173 | 1 | (OPTION) | |
SWITCH,BRAKE LAMP | 27010 | 27010-1152 | 1 | ||
SWITCH,SIDE STAND | 27010A | 27010-1223 | 1 | ||
SPRING,BRAKE LAMP SWITCH | 27011 | 27011-004 | 1 | ||
LOCK-ASSY,HELMET | 27016 | 27016-5211 | 1 | ||
LOCK-ASSY,SEAT | 27016A | 27016-5224 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5003 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-1052 | 2 | ||
REFLECTOR-REFLEX,RR | 28012A | 28012-1056 | 2 | ||
REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
JOINT | 59071 | 59071-1103 | 4 | ||
BOLT,TORX,6X16 | 92002 | 92002-1333 | 2 | ||
SCREW,5X12 | 92009 | 92009-1401 | 1 | ||
SCREW,5X22 | 92009A | 92009-1492 | 2 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
COLLAR,5X8X14.5 | 92027 | 92027-1789 | 2 |
