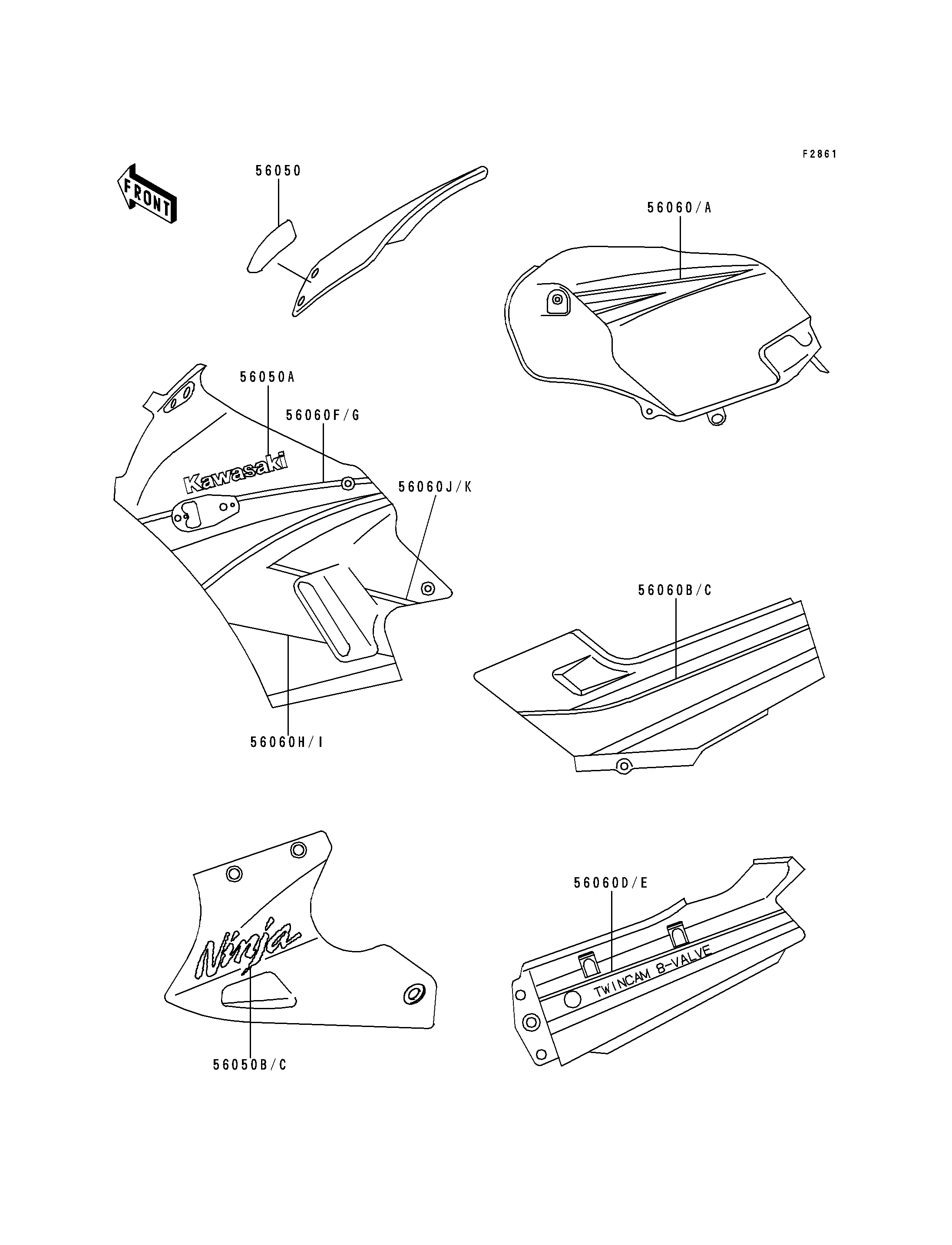

1996 Ninja® 250R - Decals(Ebony)(EX250-F10)
56050
56050A
56050B
56050C
56060
56060A
56060B
56060C
56060D
56060E
56060F
56060G
56060H
56060I
56060J
56060K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,KAWASAKI | 56050A | 56050-1876 | 2 | ||
| MARK,NINJA,LWR COWLING,LH | 56050B | 56050-1877 | 1 | ||
| MARK,NINJA,LWR COWLING,RH | 56050C | 56050-1878 | 1 | ||
| PATTERN,FUEL TANK,LH | 56060 | 56060-1369 | 1 | ||
| PATTERN,FUEL TANK,RH | 56060A | 56060-1370 | 1 | ||
| PATTERN,SIDE COVER,LH | 56060B | 56060-1371 | 1 | ||
| PATTERN,SIDE COVER,RH | 56060C | 56060-1372 | 1 | ||
| PATTERN,SEAT COVER,LH | 56060D | 56060-1373 | 1 | ||
| PATTERN,SEAT COVER,RH | 56060E | 56060-1374 | 1 | ||
| PATTERN,UPP COWLING,UPP,LH | 56060F | 56060-1375 | 1 | ||
| PATTERN,UPP COWLING,UPP,RH | 56060G | 56060-1376 | 1 | ||
| PATTERN,UPP COWLING,CNT,LH | 56060H | 56060-1377 | 1 | ||
| PATTERN,UPP COWLING,CNT,RH | 56060I | 56060-1378 | 1 | ||
| PATTERN,UPP COWLING,LWR,LH | 56060J | 56060-1379 | 1 | ||
| PATTERN,UPP COWLING,LWR,RH | 56060K | 56060-1380 | 1 |
| MARK,WINDSHIELD | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA,LWR COWLING,LH | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA,LWR COWLING,RH | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,LH | |
| REF # | 56060F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RH | |
| REF # | 56060G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,CNT,LH | |
| REF # | 56060H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,CNT,RH | |
| REF # | 56060I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56060J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56060K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
