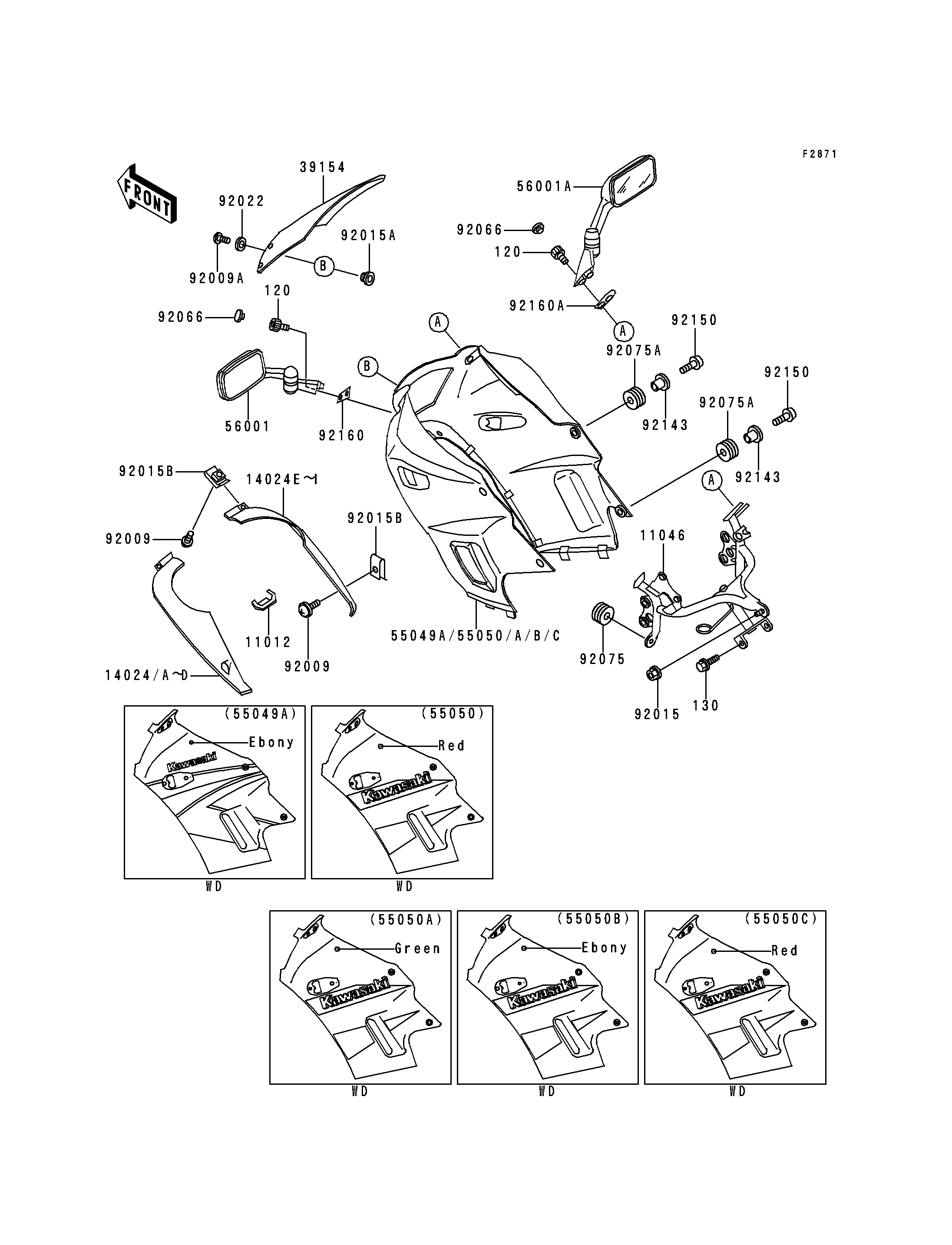

1997 Ninja® 250R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11046
11046
14024
14024
14024E
14024E
39154
39154
55050
55050
56001
56001
56001A
56001A
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92066
92066
92066
92066
92075
92075
92075A
92075A
92075A
92075A
120
120
120
120
130
130
92143
92143
92143
92143
92150
92150
92150
92150
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,RADIATOR COVER 11012 11012-1587 1
BRACKET,COWLING STAY 11046 11046-1289 1
COVER,RADIATOR,LH,F.RED 14024 14024-1580-B1 1
COVER,RADIATOR,RH,F.RED 14024E 14024-1581-B1 1
WINDSHIELD 39154 39154-1083 1
COWLING-ASSY.,UPP,F.RED 55050 55050-5049-B1 1
MIRROR-ASSY,LH 56001 56001-1337 1
MIRROR-ASSY,RH 56001A 56001-1338 1
SCREW,6X18,BLACK 92009 92009-1181 4
SCREW,5X12 92009A 92009-1652 6
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT,5MM,COWLING 92015A 92015-1343 6
NUT,6MM 92015B 92015-1602 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
PLUG 92066 92066-1312 2
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1634 4
BOLT-SOCKET,8X40,BLACK 120 120S0840 2
BOLT-FLANGED 130 130J0610 2
COLLAR,BLACK 92143 92143-1226 4
BOLT,SOCKET,6X18 92150 92150-1553 4
DAMPER,MIRROR,LH 92160 92160-1060 1
DAMPER,MIRROR,RH 92160A 92160-1061 1
