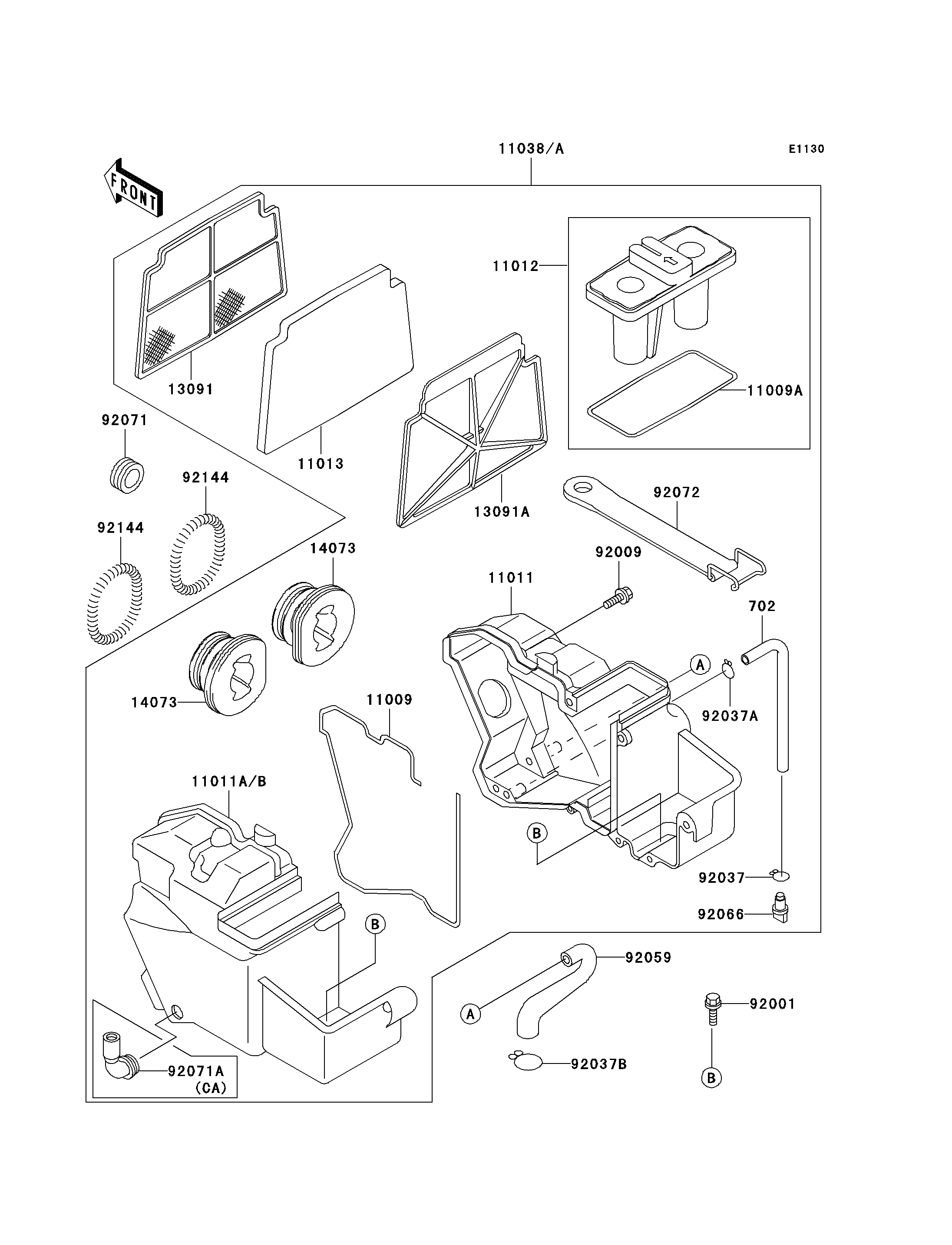

2003 Ninja® 250R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
702
11009
11009A
11011
11012
11013
13091
13091A
14073
14073
92001
92009
92037
92037A
92037B
92059
92066
92071
92072
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE-RUBBER,7X10X200 702 702A07200 1
GASKET,AIR FILTER 11009 11009-1599 1
GASKET,AIR FILTER CAP 11009A 11009-1613 1
CASE-AIR FILTER,RH 11011 11011-1219 1
CAP,INTAKE 11012 11012-1504 1
ELEMENT-AIR FILTER 11013 11013-1141 1
HOLDER,AIR FILTER,FR 13091 13091-1421 1
HOLDER,AIR FILTER,RR 13091A 13091-1422 1
DUCT,AIR FILTER 14073 14073-1307 2
BOLT,6X20 92001 92001-1773 2
SCREW,TAPPING,5X25 92009 92009-1339 10
CLAMP 92037 92037-1712 1
CLAMP,TUBE 92037A 92037-1972 1
CLAMP,TUBE 92037B 92037-213 1
TUBE,BREAHER 92059 92059-1676 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET,RESERVOIR 92071 92071-1047 1
BAND,AIR FILTER 92072 92072-1196 1
SPRING,AIR FILTER DUCT 92144 92144-1771 2
CASE-AIR FILTER,LH 11011A 11011-1623 1 US
CASE-AIR FILTER,LH 11011B 11011-1635 1 CA
CASE-ASSY-AIR FILTER 11038 11038-1067 1 CA
CASE-ASSY-AIR FILTER 11038A 11038-1127 1 US
GROMMET,AIR FILTER 92071A 92071-1114 1 CA
