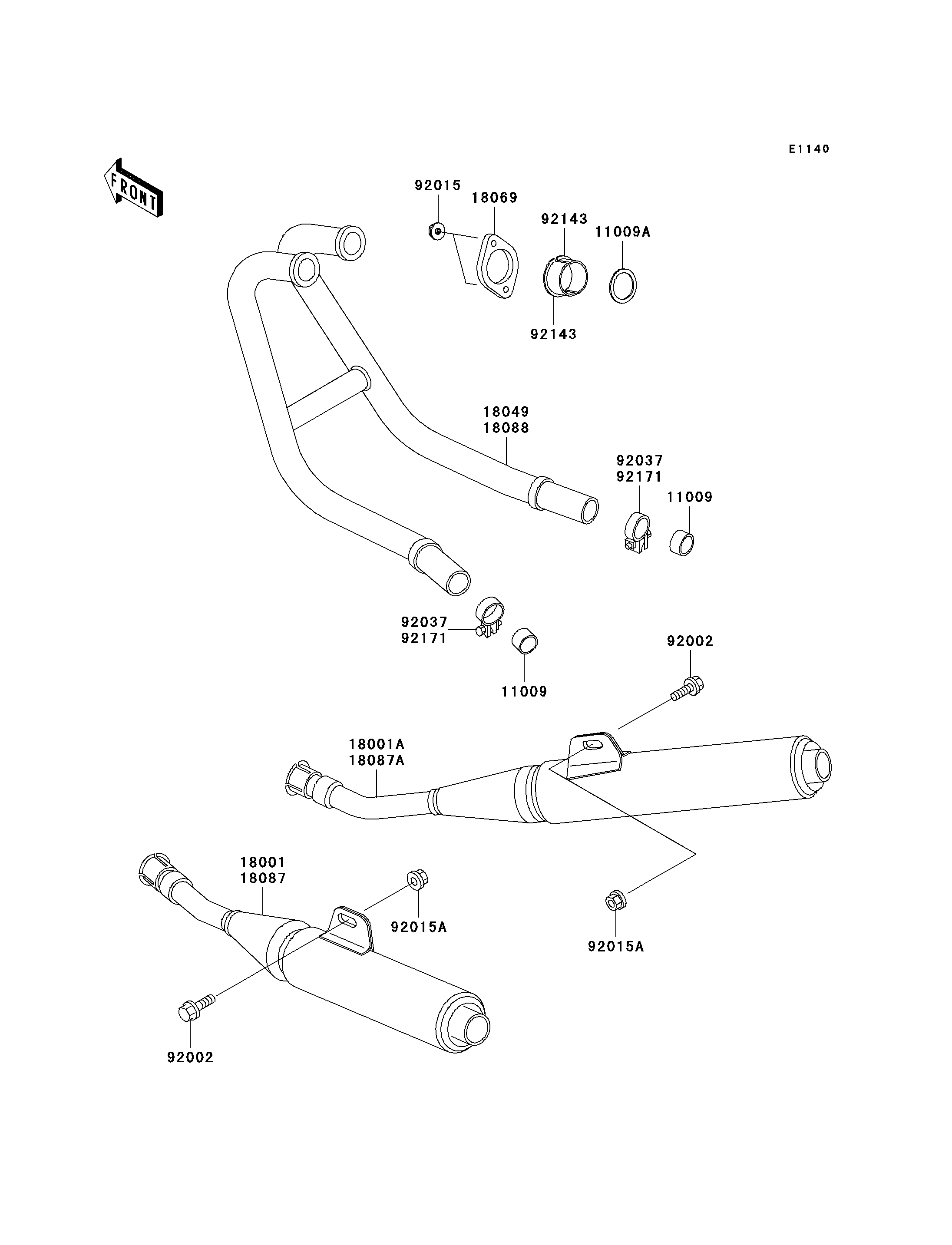

11009
11009
11009A
18001
18001A
18049
18069
92002
92002
92015
92015A
92015A
92037
92037
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNECTING 11009 11009-1865 2
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 2
MUFFLER,LH 18001 18001-1724 1
MUFFLER,RH 18001A 18001-1725 1
PIPE-EXHAUST 18049 18049-1431 1
HOLDER-EXHAUST PIPE 18069 18069-1075 2
BOLT,10X30 92002 92002-1787 2
NUT,6MM 92015 92015-1365 4
NUT,FLANGED,10MM 92015A 92015-1387 2
CLAMP,39.5MM 92037 92037-1792 2
COLLAR,EXHAUST PIPE 92143 92143-1006 4
