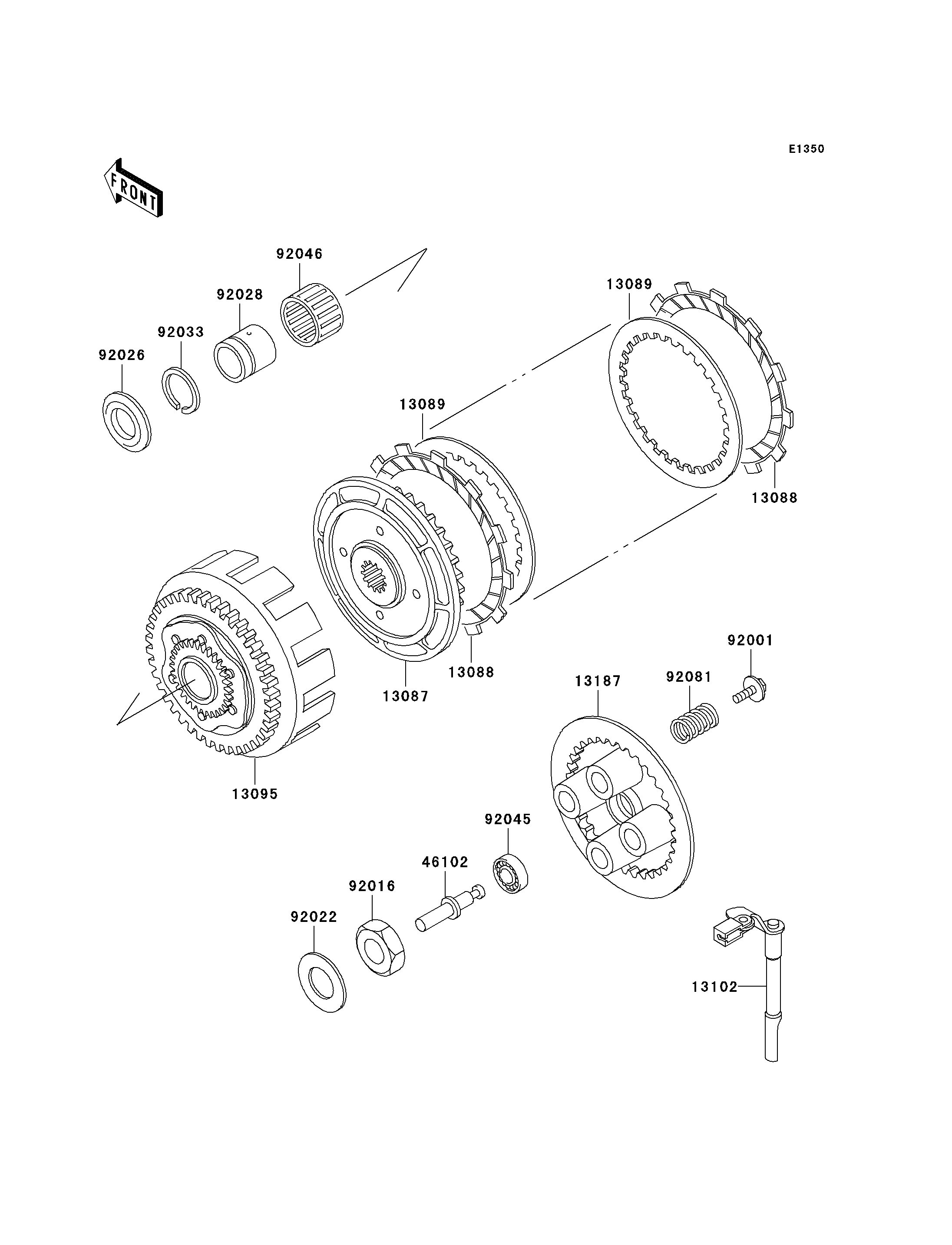

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13087
13088
13088
13089
13089
13095
13102
13187
46102
92001
92016
92022
92026
92028
92033
92045
92046
92081
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-1076 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1013 | 5 | ||
| PLATE-CLUTCH,T=2.0 | 13089 | 13089-026 | 4 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1145 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1079 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1057 | 1 | ||
| ROD,CLUTCH | 46102 | 46102-1030 | 1 | ||
| BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 4 | ||
| NUT,20MM | 92016 | 92016-028 | 1 | ||
| WASHER,20.3X36X2.3 | 92022 | 92022-1116 | 1 | ||
| SPACER,THRUST,T=5.5 | 92026 | 92026-116 | 1 | ||
| BUSHING,CLUTCH | 92028 | 92028-1414 | 1 | ||
| RING-SNAP | 92033 | 92033-1212 | 1 | ||
| BEARING-BALL | 92045 | 92045-1408 | 1 | ||
| BEARING-NEEDLE,KTV323723 | 92046 | 92046-028 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-139 | 4 |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,T=2.0 | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X36X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,THRUST,T=5.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KTV323723 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
