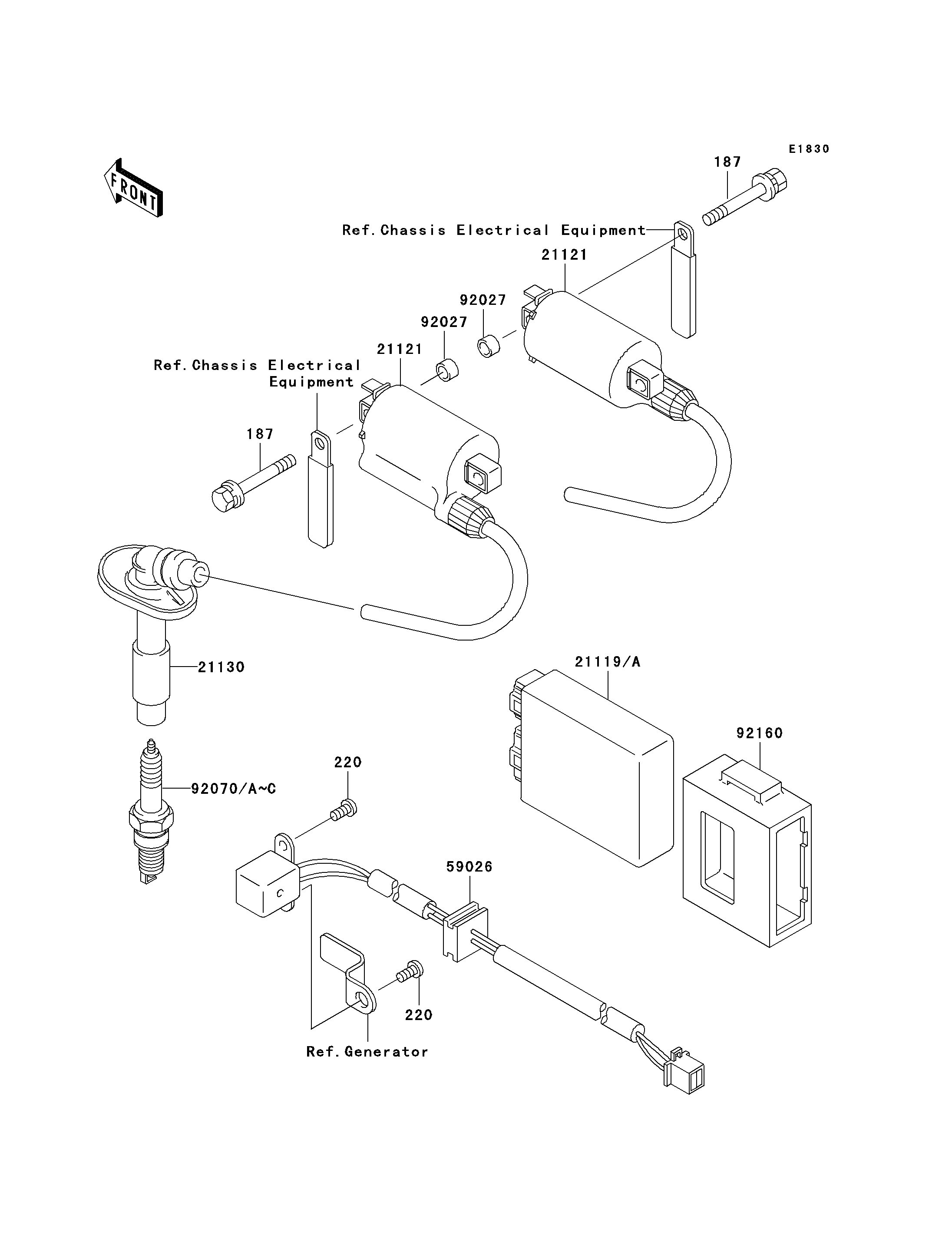

187
187
220
220
21121
21121
21130
59026
92027
92027
92070
92070A
92070B
92070C
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187G0625 4
SCREW-PAN-CROS 220 220B0510 2
COIL-IGNITION 21121 21121-1163 2
CAP-SPARK PLUG 21130 21130-1056 2
COIL-PULSING 59026 59026-1086 1
COLLAR,6.8X10X6 92027 92027-103 4
PLUG-SPARK,CR7HSA(NGK) 92070 92070-1154 2 (OPTION)
PLUG-SPARK,CR8HSA(NGK) 92070A 92070-1155 2
PLUG-SPARK,U22FSR-U(ND) 92070B 2 (OPTION)
PLUG-SPARK,U24FSR-U(ND) 92070C 2 (OPTION)
DAMPER,IGNITER 92160 92160-1181 1
IGNITER 21119 21119-1415 1 US
IGNITER 21119A 21119-1443 1 CA
