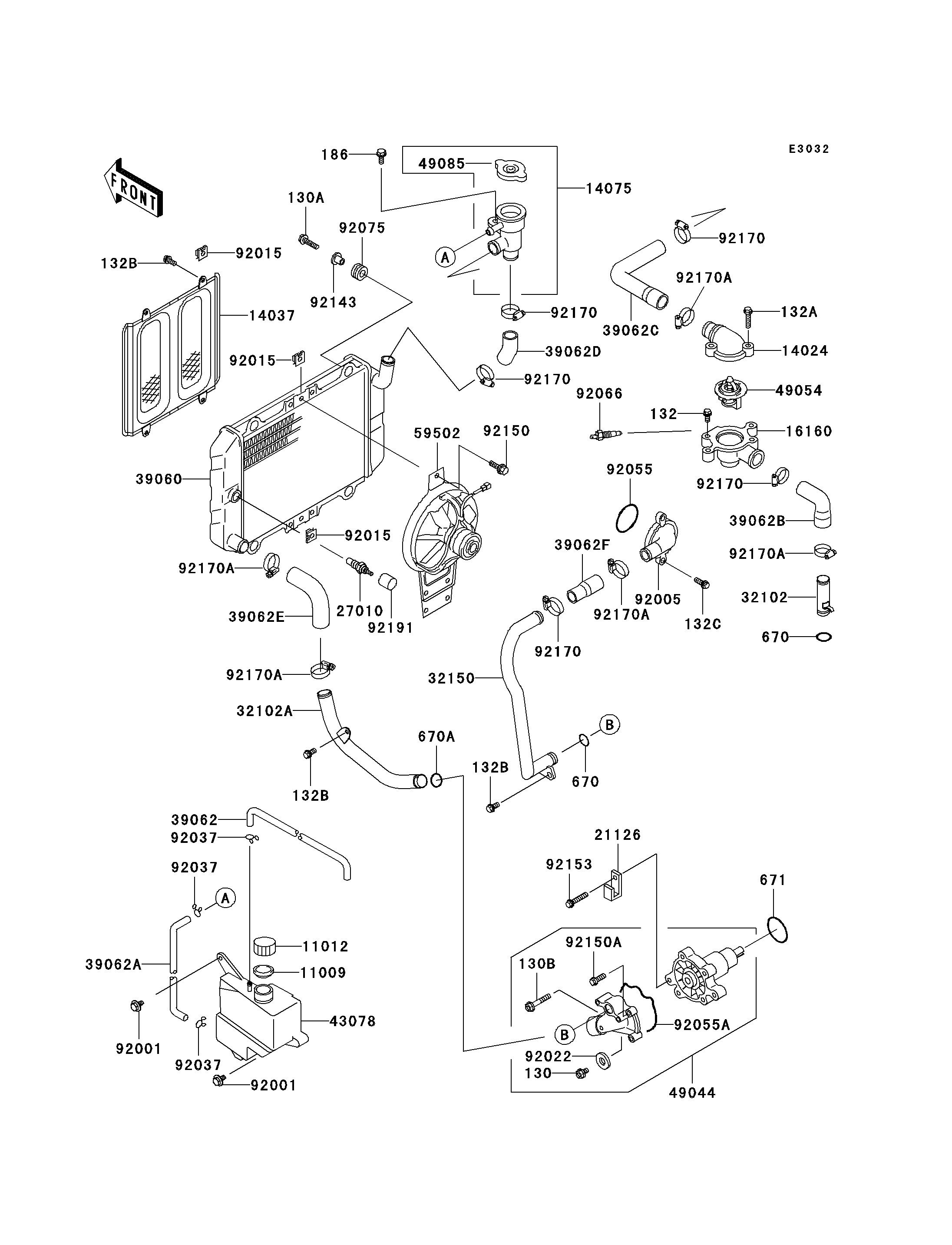

2003 Ninja® 250R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
14024
14024
14037
14037
14075
14075
16160
16160
21126
21126
27010
27010
32102
32102
32102A
32102A
32150
32150
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
43078
43078
49044
49044
49054
49054
49085
49085
59502
59502
92001
92001
92001
92001
92005
92005
92015
92015
92015
92015
92015
92015
92022
92022
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92066
92066
92075
92075
92143
92143
92150
92150
92150A
92150A
92153
92153
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92191
92191
130
130
130A
130A
130B
130B
132
132
132A
132A
132B
132B
132B
132B
132B
132B
132C
132C
186
186
670
670
670
670
670A
670A
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER,THERMOSTAT UPP 14024 14024-1232 1
SCREEN 14037 14037-1078 1
CAP-ASSY,RADIATOR 14075 14075-1061 1
BODY,THERMOSTAT 16160 16160-1110 1
CLAMP,WIRING HARNESS 21126 21126-008 2
SWITCH,THERMOSTAT 27010 27010-1304 1
PIPE,HEAD-THERMOSTAT 32102 32102-1021 1
PIPE 32102A 32102-1531 1
PIPE 32150 32150-1143 1
RADIATOR 39060 39060-1087 1
HOSE-COOLING,RESERVOIR 39062 39062-1007 1
HOSE-COOLING 39062A 39062-1028 1
HOSE-COOLING,HEAD-THERMOSTAT 39062B 39062-1170 1
HOSE-COOLING,CAP-THERMOBODY 39062C 39062-1171 1
HOSE-COOLING,RADIATOR-CAP 39062D 39062-1172 1
HOSE-COOLING,RADIATOR-PUMP 39062E 39062-1173 1
HOSE-COOLING,PUMP-CYLINDER 39062F 39062-1246 1
RESERVOIR 43078 43078-1070 1
PUMP-WATER 49044 49044-1086 1
THERMOSTAT 49054 49054-1058 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FAN-ASSY 59502 59502-1066 1
BOLT,W/WASHER,6X12 92001 92001-1516 2
FITTING,CYLINDER 92005 92005-1145 1
NUT 92015 92015-1487 7
WASHER,6MM 92022 92022-1976 1
CLAMP,TUBE 92037 92037-147 3
RING-O 92055 92055-091 1
RING-O 92055A 92055-1432 1
PLUG,SENSOR WATER 92066 92066-1183 1
DAMPER 92075 92075-1665 4
COLLAR 92143 92143-1063 4
BOLT,6X12 92150 92150-1186 3
BOLT 92150A 92150-1562 3
BOLT,6X30 92153 92153-0832 2
CLAMP,COOLING HOSE 92170 92170-1033 5
CLAMP,COOLING HOSE 92170A 92170-1286 5
TUBE 92191 92191-1080 1
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X25 130A 130J0625 4
BOLT-FLANGED 130B 130L0635 1
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0625 2
BOLT-FLANGED-SMALL 132B 132J0612 6
BOLT-FLANGED-SMALL 132C 132J0616 2
BOLT-UPSET-WP 186 186C0616 2
O RING,16MM 670 670B2016 2
O RING,18MM 670A 670B2018 1
O RING 671 671D2535 1
