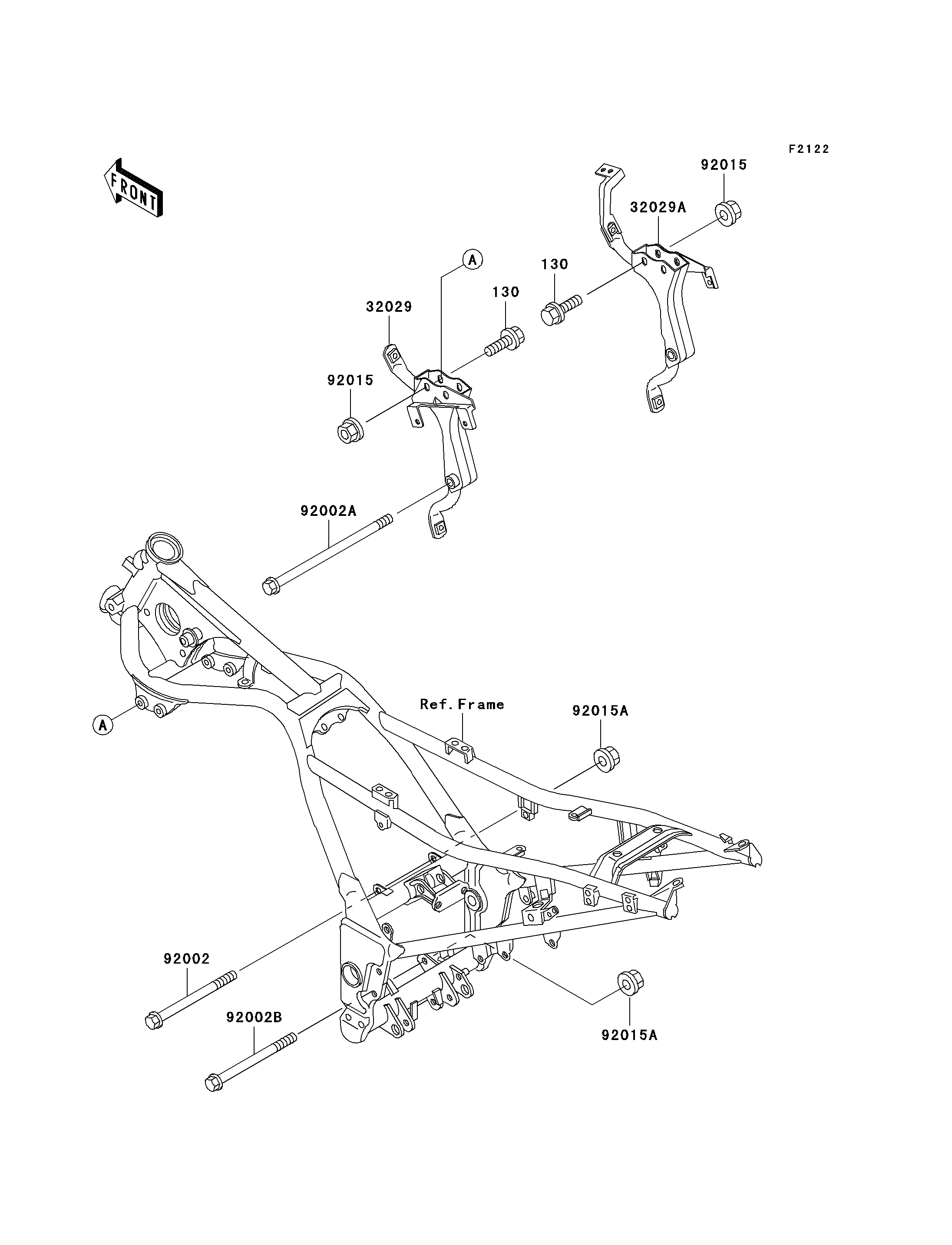

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X40 130 130G0840 4
BRACKET-ENGINE,HEAD,LH 32029 32029-1542 1
BRACKET-ENGINE,HEAD,RH 32029A 32029-1543 1
BOLT,FLANGED,10X130 92002 92002-1087 1
BOLT,FLANGED,10X170 92002A 92002-1470 1
BOLT,FLANGED,10X138 92002B 92002-1795 1
NUT,8MM 92015 92015-1143 4
NUT,FLANGED,10MM 92015A 92015-1180 2
