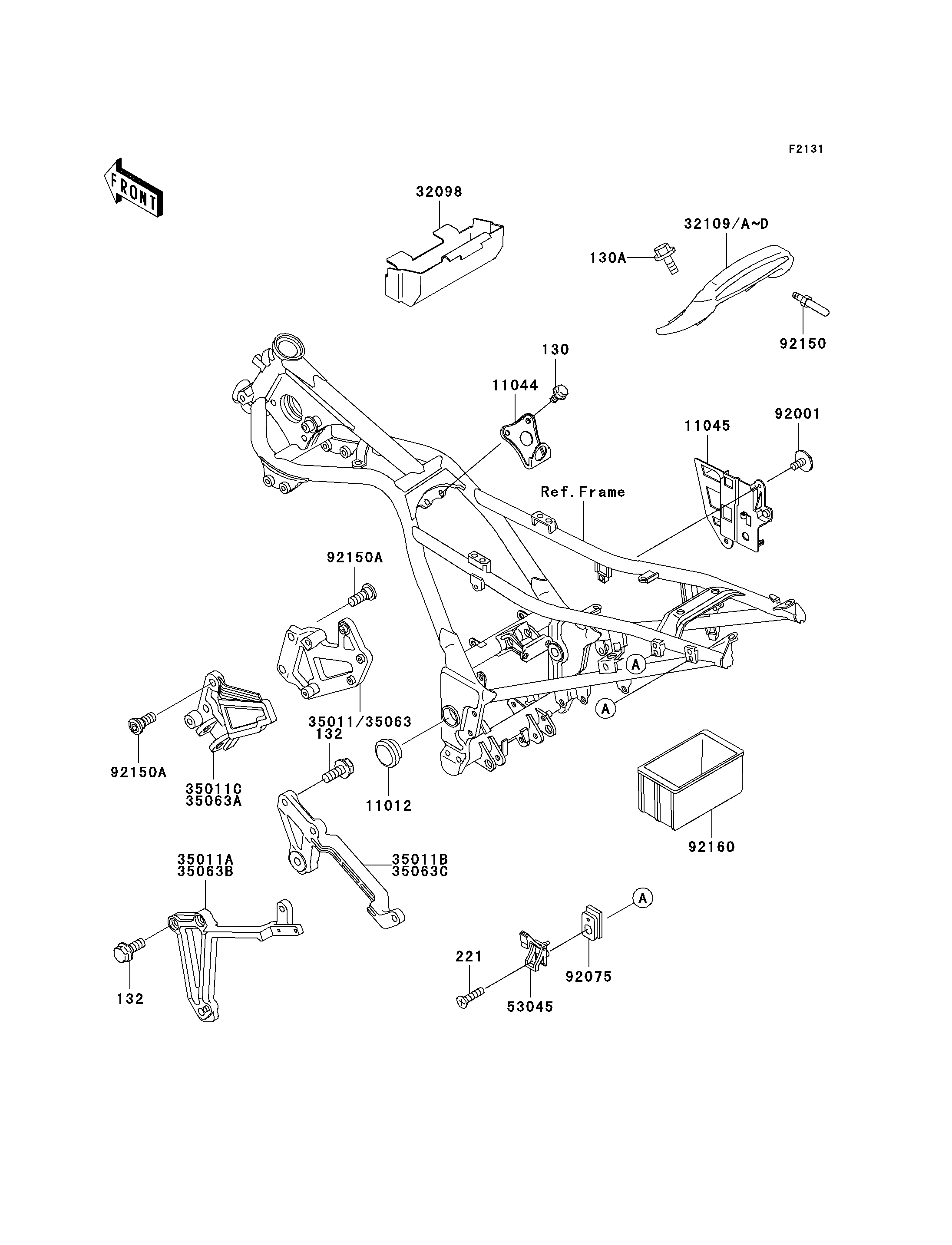

2003 Ninja® 250R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132
221
11012
11044
11045
32098
32109B
32109C
32109D
35011
35011A
35011B
35011C
53045
92001
92075
92150
92150A
92150A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,8X20 130A 130B0820 2
BOLT-FLANGED-SMALL 132 132G0820 6
SCREW-CSK-CROS 221 221E0625 4
CAP,SWING ARM BRACKET 11012 11012-1459 2
BRACKET,AIR FILTER 11044 11044-1828 1
BRACKET,ELECTRIC 11045 11045-1578 1
CASE-TOOL 32098 32098-1076 1
GRIP-FRAME,RR,M.S.BLUE 32109B 32109-1163-GW 1
GRIP-FRAME,RR,P.C.YELLOW 32109C 32109-1163-1B 1
GRIP-FRAME,RR,L.GREEN 32109D 32109-1163-7F 1
STAY,FR,RH 35011 35011-1355 1
STAY,MUFFLER,LH 35011A 35011-1356 1
STAY,MUFFLER,RH 35011B 35011-1357 1
STAY,FR,LH 35011C 35011-1380 1
HOOK-ASSY,ROPE 53045 53045-1051 4
BOLT,6X14,BLACK 92001 92001-1847 2
DAMPER,ROPE HOOK 92075 92075-1726 4
BOLT,BANK SENSOR 92150 92150-1002 2
BOLT,SOCKET,8X20 92150A 92150-1839 5
DAMPER,BATTERY HOLDER 92160 92160-1500 1
