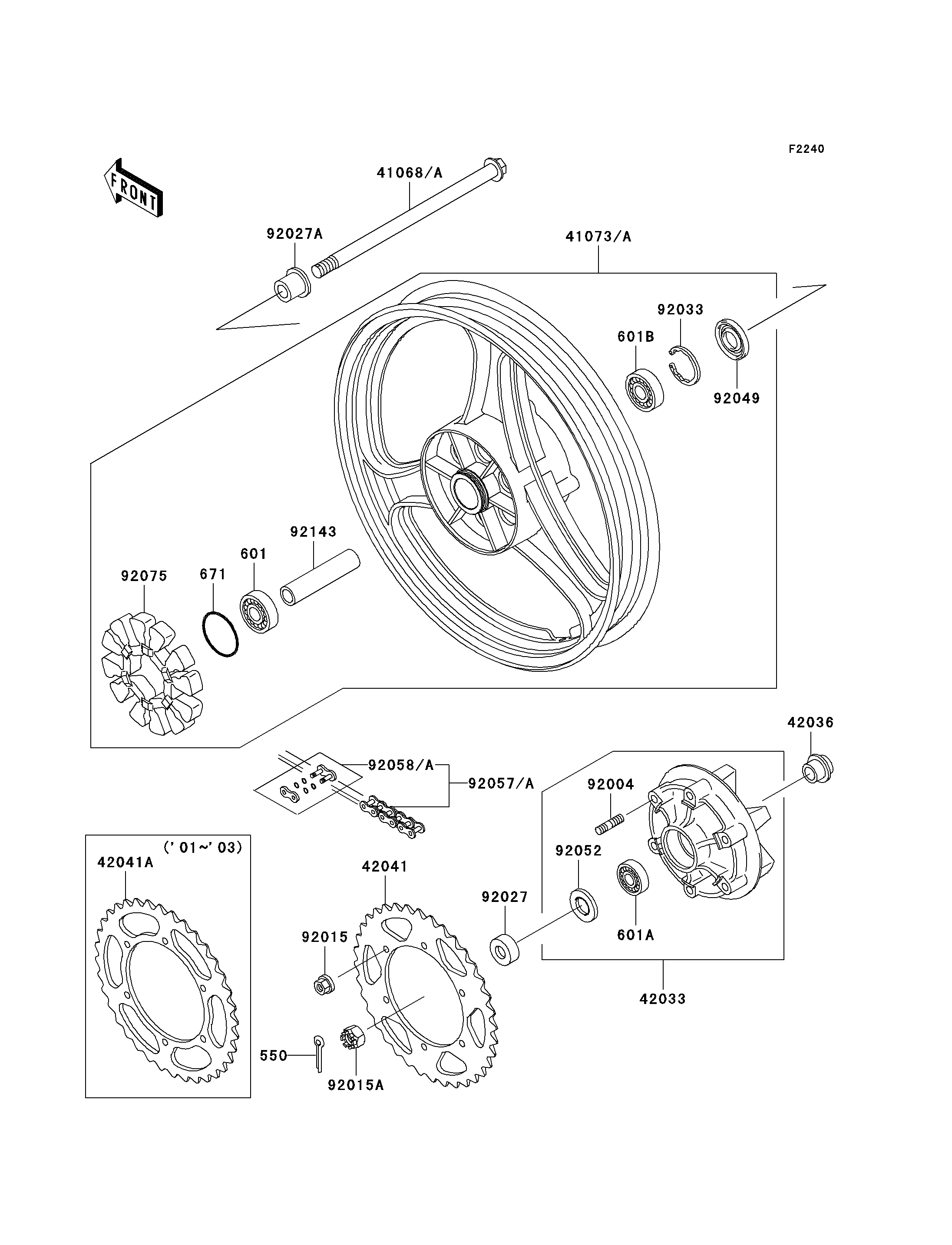

Parts Diagrams |
550
601
601A
601B
671
41068A
41073
42033
42036
42041A
92004
92015
92015A
92027
92027A
92033
92049
92052
92057
92058
92075
92143
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,#6203UUC3 | 601 | 601B6203UU | 1 | ||
BEARING-BALL,#6205G | 601A | 601B6205G | 1 | ||
BEARING-BALL,#6303UUC3 | 601B | 601B6303UU | 1 | ||
O RING | 671 | 671B2550 | 1 | ||
AXLE,RR | 41068A | 41068-1221 | 1 | ||
WHEEL-ASSY,RR,P.C.GRAY | 41073 | 41073-1366-DH | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1217 | 1 | ||
SLEEVE,RR HUB,L=30 | 42036 | 42036-1055 | 1 | ||
SPROCKET-HUB,45T | 42041A | 42041-1277 | 1 | ||
STUD,10X19 | 92004 | 92004-1275 | 6 | ||
NUT,FLANGED,10MM | 92015 | 92015-1335 | 6 | ||
NUT,CASTLE,16MM | 92015A | 92015-1947 | 1 | ||
COLLAR,RR HUB | 92027 | 92027-1784 | 1 | ||
COLLAR,RR HUB | 92027A | 92027-1785 | 1 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
SEAL-OIL,TWC35527 | 92052 | 92052-006 | 1 | ||
CHAIN,DRIVE,EK520LV-OX106L | 92057 | 92057-0011 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1100 | 1 | ||
DAMPER,RR HUB SHOCK | 92075 | 92075-1436 | 1 | ||
COLLAR,17.2X25X97 | 92143 | 92143-1119 | 1 |
PIN-COTTER,4.0X35 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6203UUC3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6205G | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6303UUC3 | |
REF # | 601B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,P.C.GRAY | |
REF # | 41073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING-ASSY,RR HUB | |
REF # | 42033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,RR HUB,L=30 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,45T | |
REF # | 42041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,10X19 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,CASTLE,16MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR HUB | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR HUB | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,47MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,BJN28475 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TWC35527 | |
REF # | 92052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,EK520LV-OX106L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-CHAIN,DRIVE | |
REF # | 92058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RR HUB SHOCK | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,17.2X25X97 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
