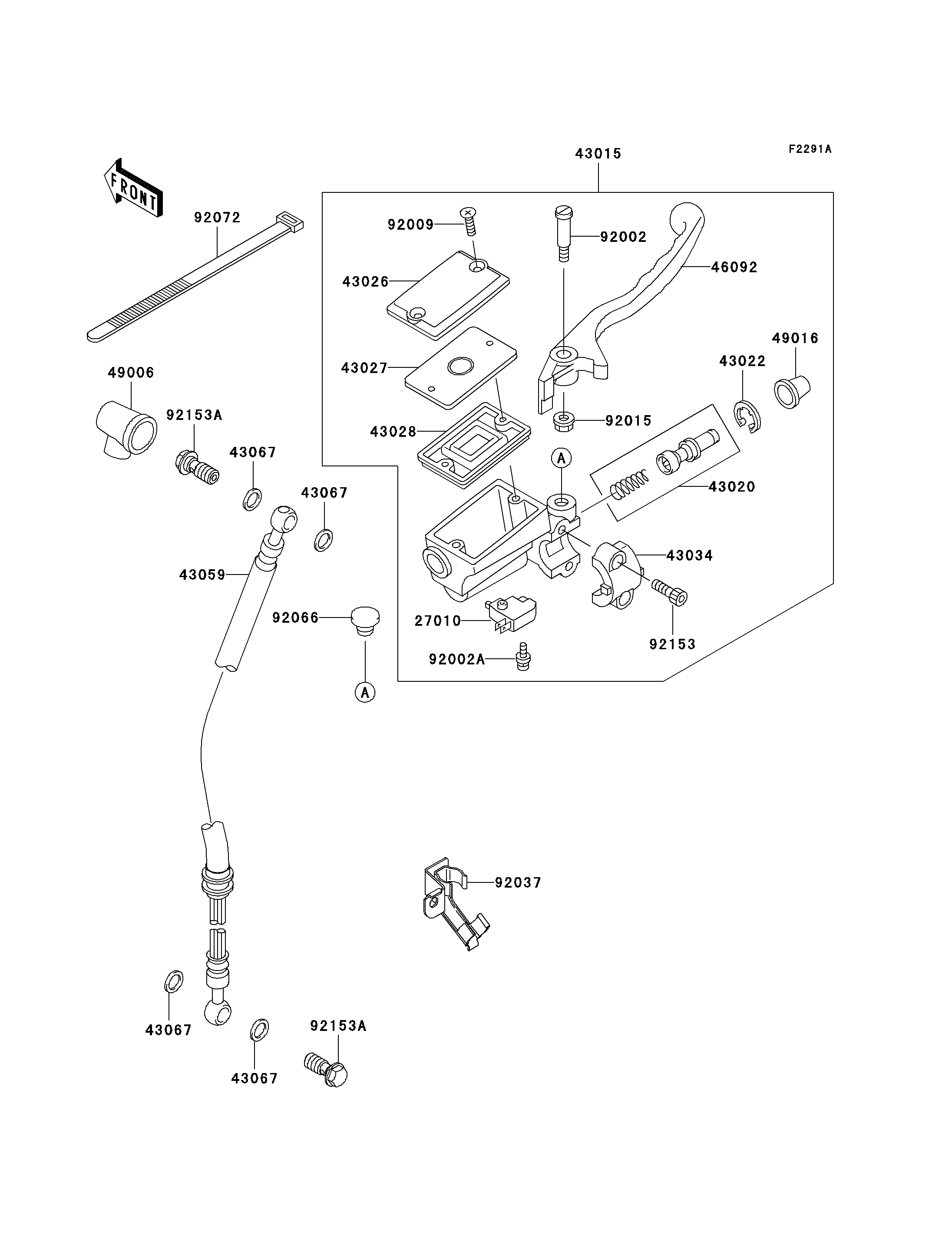

2005 Ninja® 250R - Front Master Cylinder(F19)

DOWNLOAD PDF
SELECT A NEW PART
27010
43015
43020
43022
43026
43027
43028
43034
43059
43067
43067
43067
43067
46092
49006
49016
92002
92002A
92009
92015
92037
92066
92072
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0037 1
PISTON-COMP-BRAKE 43020 43020-1098 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1076 1
PLATE-DIAPHRAGM 43027 43027-1055 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1053 1
HOSE-BRAKE,FR 43059 43059-1882 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-GRIP,FRONT BRAKE 46092 46092-1117 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
CLAMP,HOSE 92037 92037-1852 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
BAND,L=365 92072 92072-1197 1
BOLT,SOCKET,6X20 92153 92153-0417 2
BOLT,OIL,L=23 92153A 92153-0627 2
