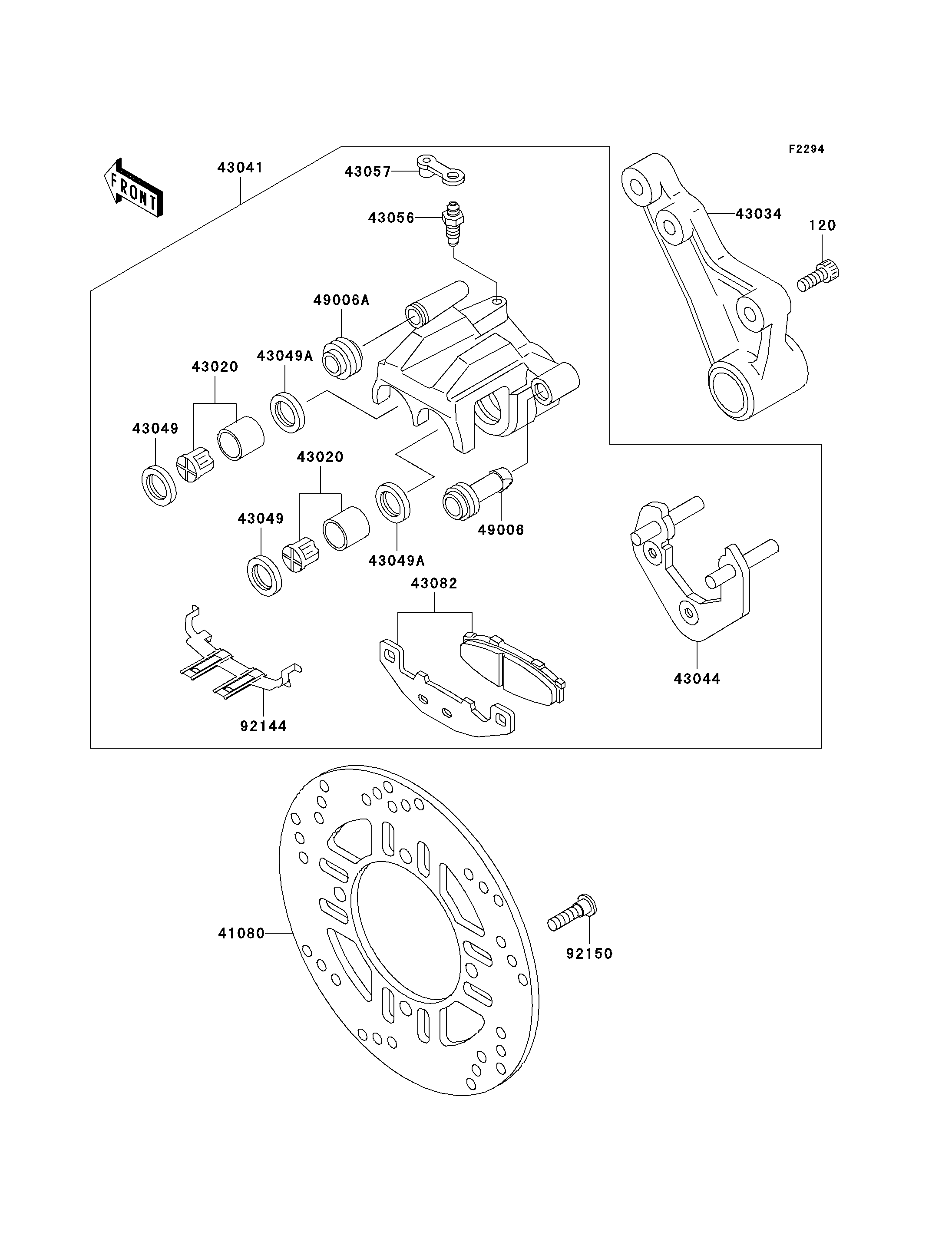

2003 Ninja® 250R - Rear Brake(F15-F17)
120
41080
43020
43020
43034
43041
43044
43049
43049
43049A
43049A
43056
43057
43082
49006
49006A
92144
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,8X20 | 120 | 120S0820 | 2 | ||
| DISC,RR | 41080 | 41080-1194 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1074 | 2 | ||
| HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1081 | 1 | ||
| CALIPER-ASSY,RR,BLACK | 43041 | 43041-1924-DJ | 1 | ||
| HOLDER-COMP-CALIPER | 43044 | 43044-1072 | 1 | ||
| PACKING,PISTON | 43049 | 43049-1059 | 2 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1090 | 2 | ||
| BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1145 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1054 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1055 | 1 | ||
| SPRING,PAD | 92144 | 92144-1152 | 1 | ||
| BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 4 |
| BOLT-SOCKET,8X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DISC,RR | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BRAKE,REAR CALIPER | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,RR,BLACK | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-COMP-CALIPER | |
| REF # | 43044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
