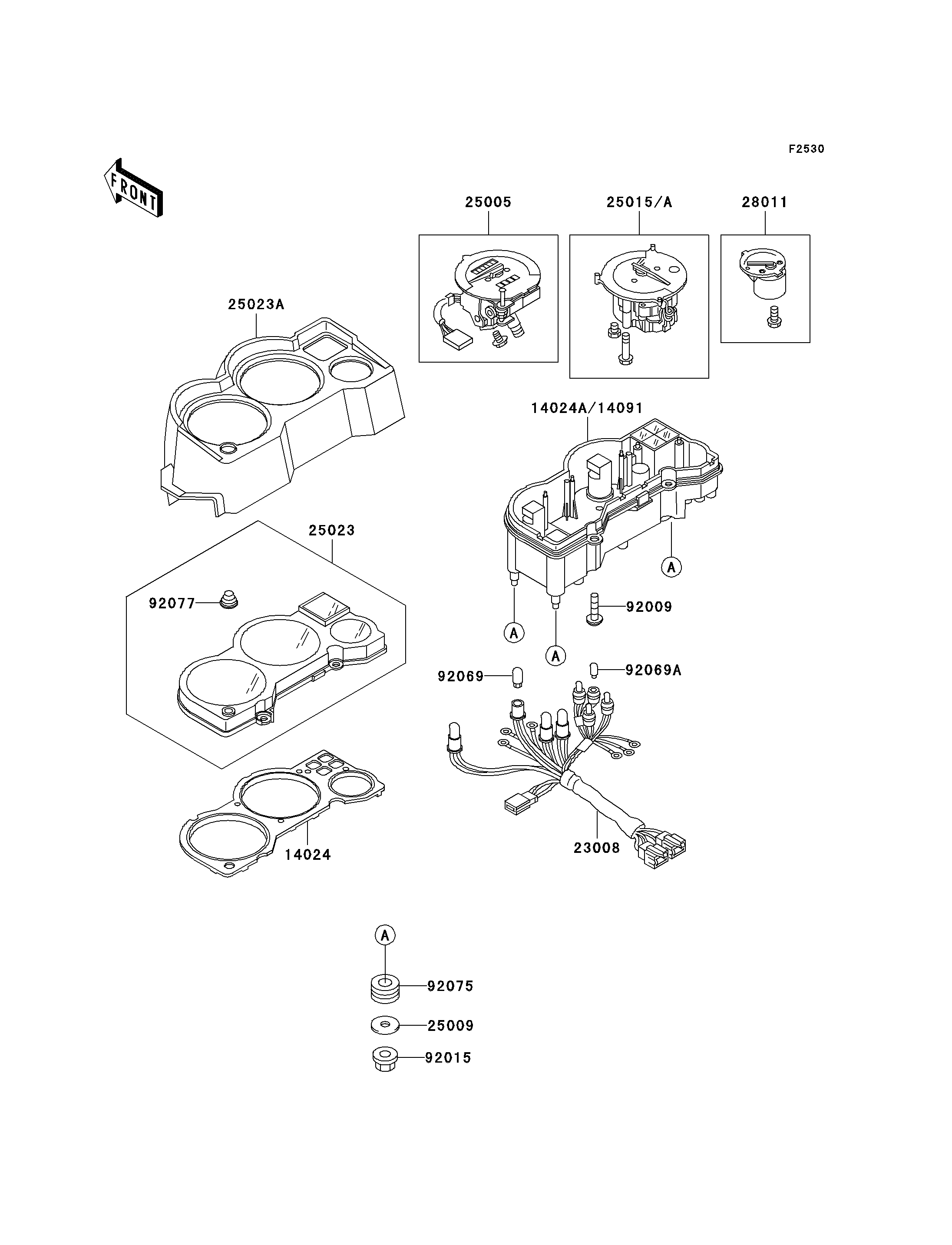

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER 14024 14024-1463 1
COVER,METER HOUSING 14024A 14024-1664 1
SOCKET-ASSY,METER 23008 23008-1367 1
SPEEDOMETER,MPH 25005 25005-1388 1
WASHER,5.2X16X1.2 25009 25009-004 3
TACHOMETER,X1000R/MIN 25015A 25015-1275 1
COVER-METER CASE,UPP 25023 25023-1158 1
COVER-METER CASE 25023A 25023-1159 1
METER,TEMP 28011 28011-1100 1
SCREW,TAPPING,4X16 92009 92009-1163 4
NUT,FLANGED,5MM 92015 92015-1259 3
BULB,12V 3.4W,T10 92069 92069-1007 3
BULB,12V 3W,T6.5 92069A 92069-1068 4
DAMPER,METER BRACKET 92075 92075-1385 3
BOOT,TRIP RESET KNOB 92077 92077-1061 1
