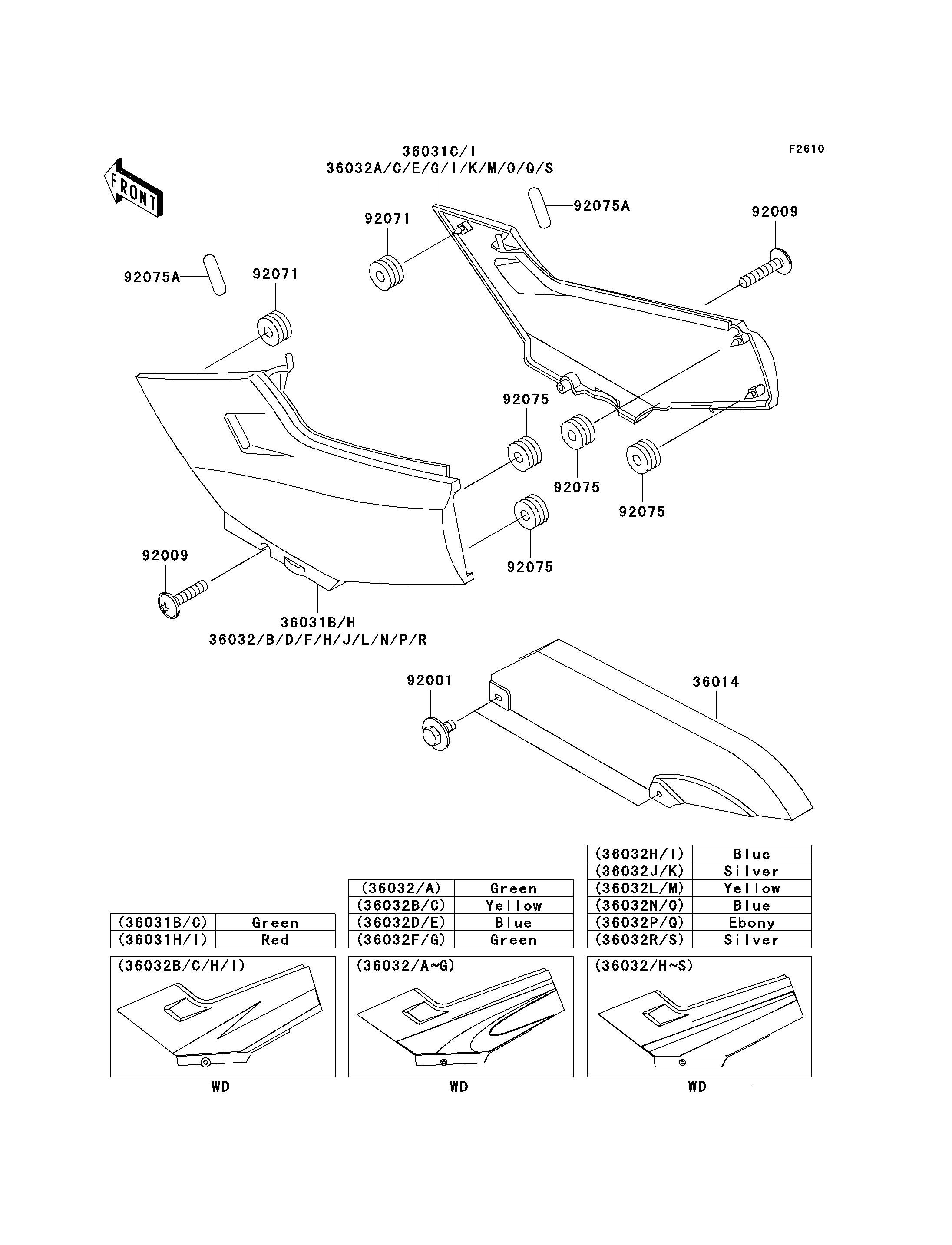

2003 Ninja® 250R - Side Covers/Chain Cover
36014
36014
36032B
36032B
36032C
36032C
36032D
36032D
36032E
36032E
36032F
36032F
36032G
36032G
92001
92001
92009
92009
92009
92009
92071
92071
92071
92071
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN | 36014 | 36014-1147 | 1 | ||
| COVER-SIDE,LH,P.C.YELLOW | 36032B | 36032-5021-1B | 1 | ||
| COVER-SIDE,RH,P.C.YELLOW | 36032C | 36032-5022-1B | 1 | ||
| COVER-SIDE,LH,M.S.BLUE | 36032D | 36032-5148-GW | 1 | ||
| COVER-SIDE,RH,M.S.BLUE | 36032E | 36032-5149-GW | 1 | ||
| COVER-SIDE,LH,L.GREEN | 36032F | 36032-5150-7F | 1 | ||
| COVER-SIDE,RH,L.GREEN | 36032G | 36032-5151-7F | 1 | ||
| BOLT,6X14,BLACK | 92001 | 92001-1847 | 2 | ||
| SCREW,6X28,BLACK | 92009 | 92009-1400 | 2 | ||
| GROMMET | 92071 | 92071-1043 | 2 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER,SIDE COVER | 92075A | 92075-1964 | 2 |
