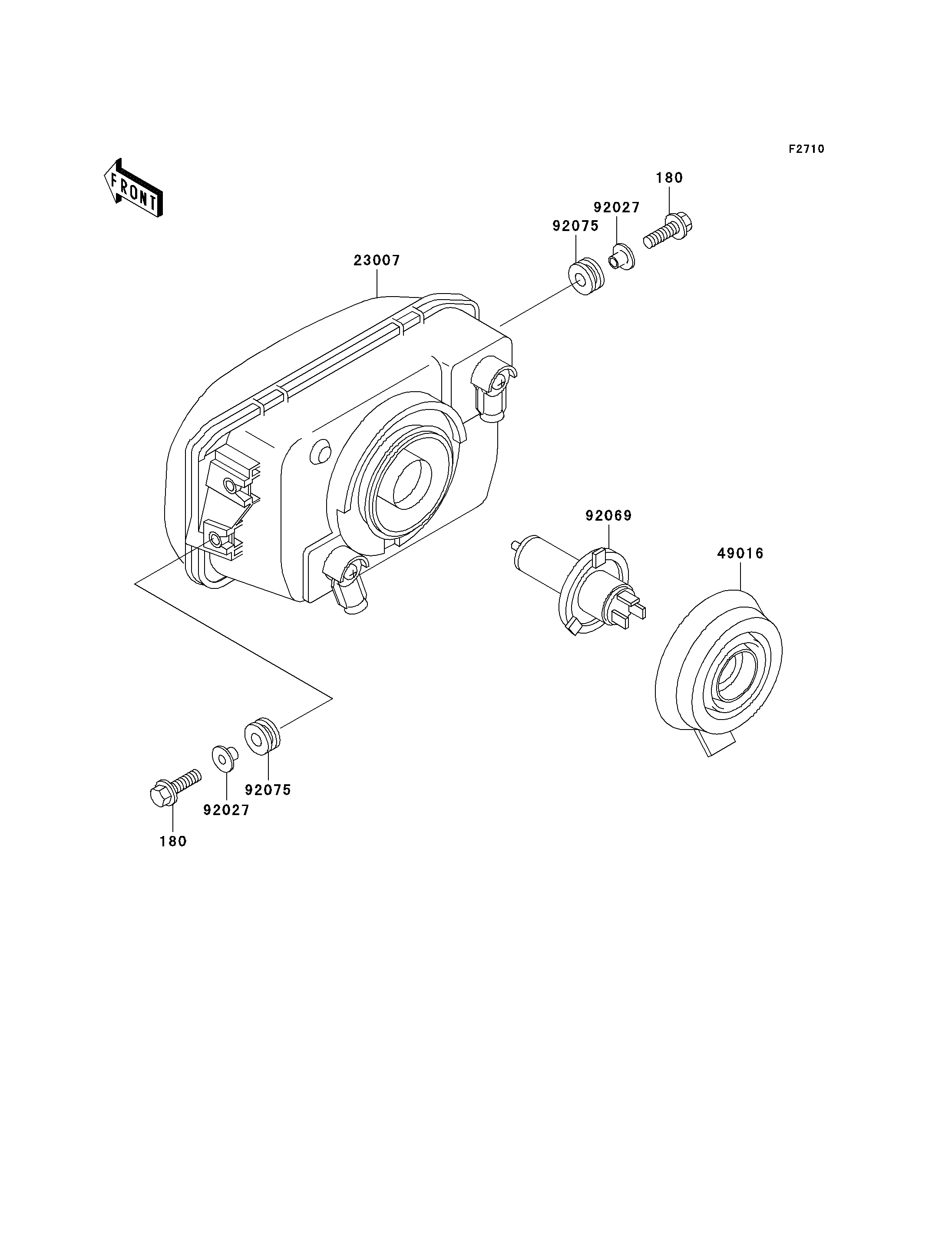

180
180
23007
49016
92027
92027
92069
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,6X25 180 180D0625 4
LENS-COMP,HEAD LAMP 23007 23007-1374 1
COVER-SEAL,HEAD LAMP 49016 49016-1108 1
COLLAR,L=13.1 92027 92027-251 4
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92075 92075-1690 4
