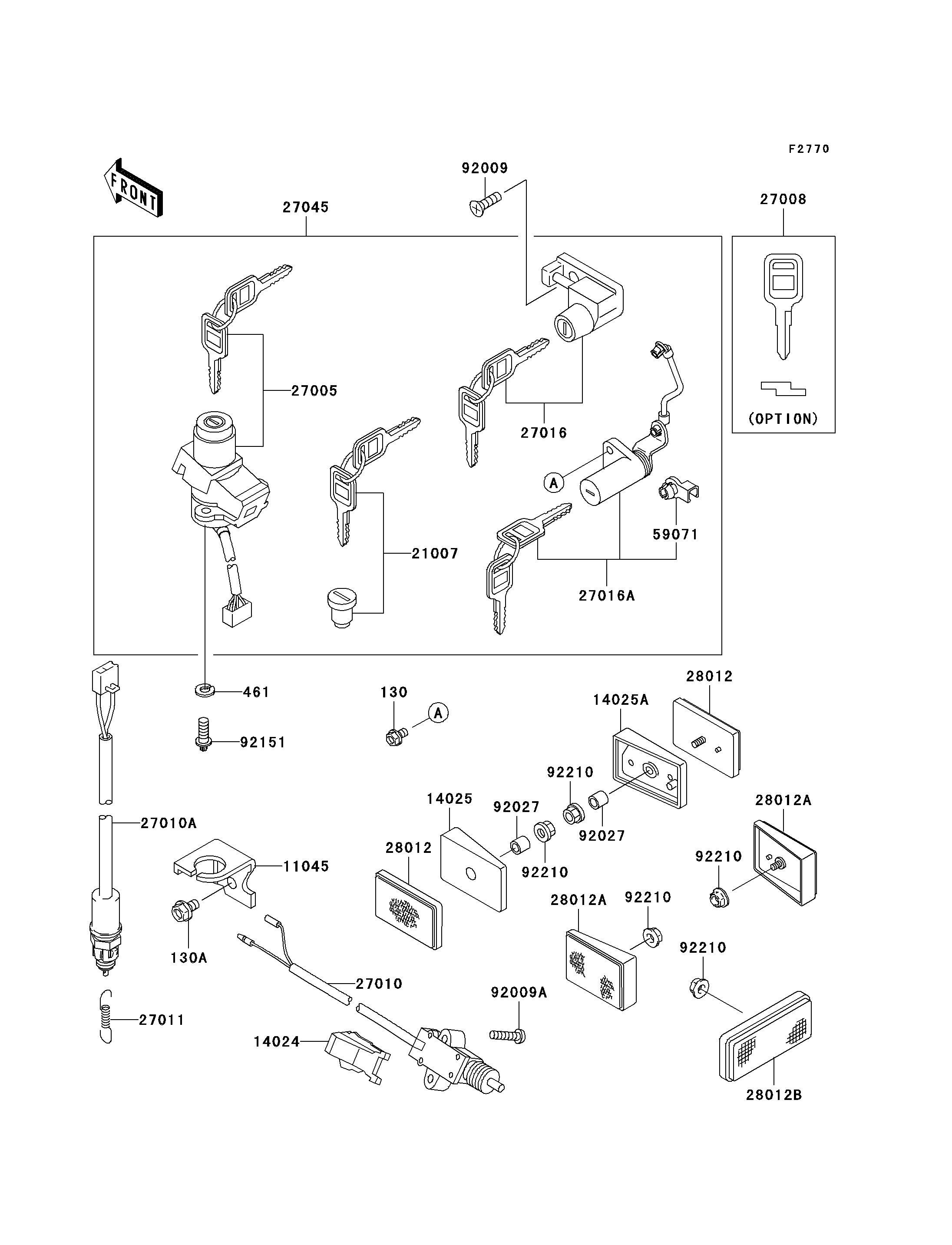

2003 Ninja® 250R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130A
461
11045
14024
14025
14025A
21007
27005
27008
27010
27010A
27011
27016
27016A
27045
28012
28012
28012A
28012A
28012B
59071
92009
92009A
92027
92027
92151
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130B0510 2
BOLT-FLANGED,6X10 130A 130H0610 1
WASHER-SPRING 461 461L0600 2
BRACKET,REAR BRAKE SWITCH 11045 11045-1641 1
COVER,SIDE STAND SWITCH 14024 14024-1532 1
COVER,REFLECTOR,FR 14025 14025-1886 1
COVER,REFLECTOR,FR 14025A 14025-1887 1
ROTOR,LOCK,TANK CAP 21007 21007-5037 1
SWITCH-ASSY-IGNITION 27005 27005-5105 1
KEY-LOCK,BLANK 27008 27008-1173 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1223 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-004 1
LOCK-ASSY,HELMET 27016 27016-5211 1
LOCK-ASSY,SEAT 27016A 27016-5224 1
SWITCH-ASSY 27045 27045-5003 1
REFLECTOR-REFLEX,FR 28012 28012-1052 2
REFLECTOR-REFLEX,RR 28012A 28012-1056 2
REFLECTOR-REFLEX 28012B 28012-1077 1
JOINT 59071 59071-1103 2
SCREW,5X12 92009 92009-1401 1
SCREW,5X22 92009A 92009-1492 2
COLLAR,5X8X14.5 92027 92027-1789 2
BOLT,TORX,6X16 92151 92151-1911 2
NUT,FLANGED,5MM 92210 92210-0007 5
